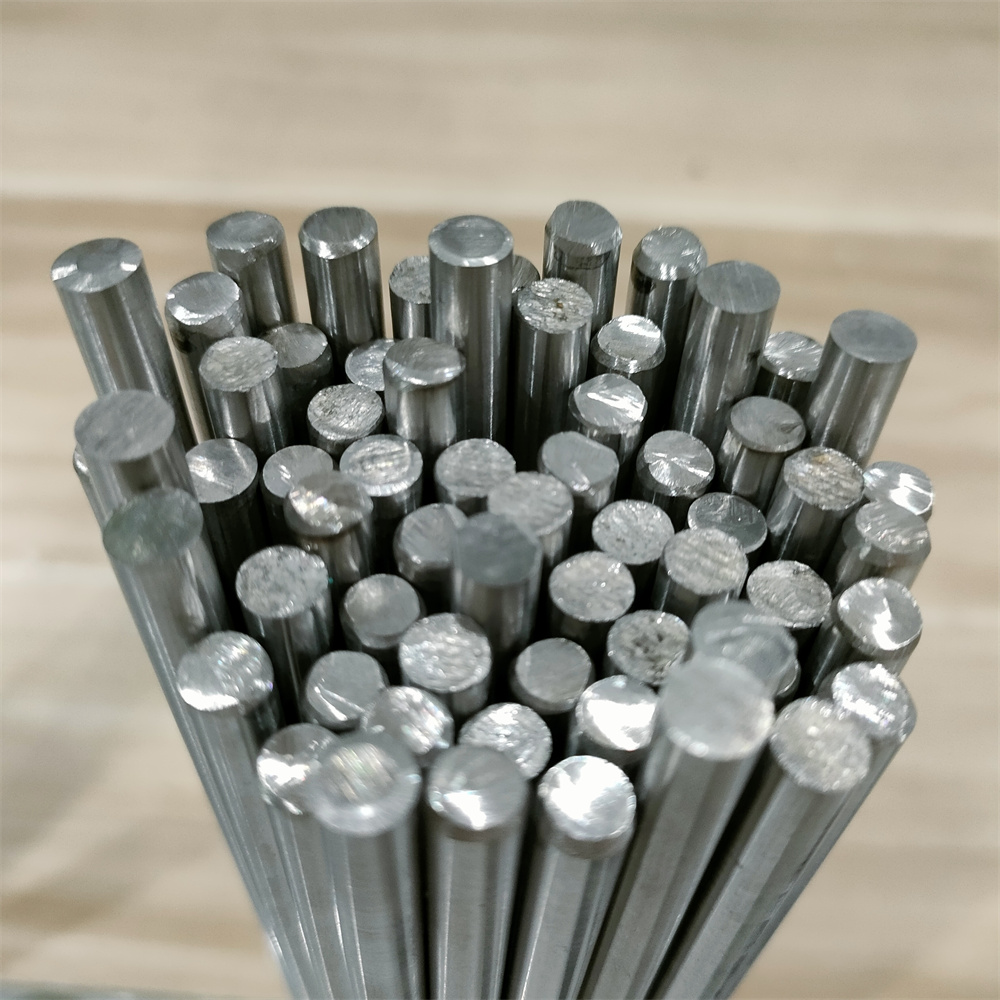

Bright finish pure nickel rod in Ni200, Ni201, N4 and N6, supplied cold drawn or polished for precision turning and bar-fed work. Annealed, 8-20 mm from stock, 3-300 mm to drawing, with the surface state named on the offer and on the packing label.
Bright nickel rod in Ni200, Ni201, N4 and N6 is supplied in a cold-drawn finish, held in 8 mm, 10 mm, 12 mm and 20 mm for immediate dispatch, with other diameters from 3 mm to 300 mm produced to drawing. All four grades come annealed, so the bar arrives straight and free of rolled scale. The finish supplied is named in the offer. A mill test certificate (EN 10204 3.1) travels with every lot.
Nickel bar leaves the mill in one of three surface states, and the choice follows the first operation a shop performs. Bright bar is cold drawn or polished, so the diameter is set by the final pass and the surface carries no oxide layer. Peeled bar is turned to take the hot-worked skin off, which suits parts where the outer layer has to be clean but fine dimensional control is not needed. Black bar is supplied as hot worked with the scale intact, and it is the economical choice where the whole surface is machined away.
Cold drawing gives the closest dimensional control of the three, and it is the state most often ordered for bar-fed machines and for parts that are turned, threaded or polished without a preliminary roughing cut. The state is specified on the drawing, together with the tolerance and straightness that apply to it.
Hexagonal and square sections, and the finishes listed above, are produced under the pure nickel bar program.
Cold-drawn finish held in the standard stock diameters.
Bright surface leaves no rolled scale for the first cut.
Diameter and straightness set in the final drawing pass.
Surface finish recorded on the offer and on the case label.
Lot certificate (EN 10204 3.1) with every shipment.
Bright describes the outside of the bar, not its chemistry. A cold-drawn or polished bar has a smooth, oxide-free surface that can be chucked and fed without a cleanup pass, and the finish is even along the length because the last reduction is taken cold. Purity and mechanical properties do not change with the finish.
The final cold reduction sizes the bar and straightens it in a single pass, so diameter tolerance, ovality and straightness are established in one operation rather than in a later step. That matters on bar feeders and on automatic lathes, where a bent bar stops the cycle. Diameters from 3 mm to 300 mm are produced this way, and lengths up to 6000 mm are supplied in the bar program.
A drawing that calls for a bright finish is asking for a cold-drawn or polished surface with the dimension taken from the finished pass. Peeled bar covers the case where scale has to be removed and the diameter is not critical. Black bar is ordered where the shop machines the full surface and wants the lowest cost per kilogram. Where the drawing is silent, the first operation usually decides it.
The finish supplied is written into the offer, the packing list and the label on the wooden case, so a consignment can be checked against the order without opening the bundle. A repeat order on that drawing and finish quotes from an unchanged specification, and all grades in the pure nickel series can be supplied in it.
Annealed bar: tensile strength ≥462 MPa, 0.2% yield strength ≥148 MPa, elongation ≥35%, hardness 90-120 HB. Physical constants: density 8.908 g/cm³, melting point 1435-1446°C, electrical resistivity 0.096 μΩ·m, thermal conductivity (Ni200) 70.2 W/m·K, ferromagnetic below the Curie point of 358°C.
Each lot is gauged against the drawing for diameter, straightness and surface condition before packing, and the heat is analysed for composition at the melt. The mill test certificate (EN 10204 3.1) issued for the lot records that composition and the mechanical results.
Ni200/Ni201: ASTM B160 (Nickel Rod and Bar). N4/N6: GB/T 4435 (Nickel and Nickel Alloy Bars). Export documentation per EN 10204 3.1.
Material data references ASTM B160 and GB/T 4435; surface and tolerance guidance follows standard cold-drawing practice for nickel bar; corrosion and application guidance references the Nickel Institute and the ASM Specialty Handbook: Nickel, Cobalt, and Their Alloys; batch composition is verified against mill test certificates and in-house inspection records.
Bar is supplied in cut lengths or full bars, wrapped against moisture and packed in export wooden cases. The label carries the grade and the finish supplied. In-stock diameters dispatch in 3-7 days, standard production in 7-15 days, and sizes produced to drawing in 15-30 days. Freight is quoted per destination, and payment is by L/C, T/T, Western Union or MoneyGram.
Nickel-based material has been melted and processed at DZX Alloy's Changzhou, Jiangsu mill since 2002 under ISO 9001 and SGS quality systems, with exports to 60+ countries. The bar program runs on stock diameters and on drawing work, and the finish quoted is carried through to the case label so that the order and the delivered consignment can be compared line by line.
Send the drawing or the part specification with the finish required for a quote.
Q: What does a bright finish mean on a nickel bar?
A: It is a cold-drawn or polished surface with no rolled scale and a diameter set by the final pass. The grade and its purity are unaffected by the finish.
Q: Which diameters are held in a bright finish?
A: 8 mm, 10 mm, 12 mm and 20 mm are held in stock. Diameters from 3 mm to 300 mm and lengths up to 6000 mm are produced to drawing.
Q: How do I choose between bright, peeled and black bar?
A: Follow the first operation. Bar-fed machines and parts finished without a roughing cut suit a bright surface; peeled bar covers cases where scale must be removed and the diameter is not critical; black bar suits parts machined all over.
Q: What tolerance and straightness come with cold-drawn bar?
A: Diameter tolerance and straightness are set in the final cold pass and confirmed against the drawing on the order. Both are stated when the order is placed.
Q: Is the finish recorded on the mill certificate?
A: The certificate (EN 10204 3.1) records composition and mechanical results for the lot. The finish supplied appears on the packing list and on the case label.
Q: Can the bar be cut to length?
A: Yes. Cut lengths are quoted from the drawing, and the bar program supports lengths up to 6000 mm.
Q: What is the minimum order quantity?
A: MOQ is 10 kg.
Q: What is the delivery time?
A: In-stock diameters dispatch in 3-7 days, standard production in 7-15 days, and sizes produced to drawing in 15-30 days.
Q: What payment terms are accepted?
A: L/C, T/T, Western Union and MoneyGram.
