Overview

Corrosion resistant nickel wire in 0.025-10 mm diameters combines a face-centered cubic (FCC) crystal structure with high-purity nickel chemistry — the two properties that drive its corrosion behaviour, formability and weldability. Supplied in four grades — N4 (≥99.9% Ni+Co), N6 (≥99.5%), Ni200 (UNS N02200) and Ni201 (UNS N02201) — the wire is drawn on a dedicated nickel line and available from 1 kg for micro diameters. Samples are offered so the grade and surface can be verified before production quantities are committed.

Pure Nickel Wire vs Coated and Alloyed Wire

Solid pure nickel wire is homogeneous through the cross-section: there is no coating that can crack, chip or wear away in service, which is why its corrosion resistance holds after cutting, bending and welding. This differs from nickel-plated wire, whose protection depends on the plating layer, and from nickel alloy wire, which trades a different corrosion profile and higher cost for specific strength or heat-resistance targets. For media where corrosion resistance and predictable electrical behaviour matter, solid pure nickel wire is the material of choice.

Specifications

Diameters from 0.025 mm to 10 mm are drawn across our nickel wire products, with custom diameters and tolerances produced per drawing. Micro wire (≤0.05 mm) is ordered from 1 kg; standard wire from 5 kg.

Key Strengths

• High corrosion resistance in acidic, alkaline and marine environments where many metals degrade quickly.

• Face-centered cubic structure for uniform forming, bending and welding behaviour.

• High melting point (1435-1446°C) and heat resistance for elevated-temperature service.

• Grade-matched purity from N4 ≥99.9% to Ni200/Ni201 ≥99.0-99.2%, with carbon limits per grade.

• Samples available before production — verify grade, surface and weld behaviour on your own line.

•

•

Technical Details

What the FCC Structure Buys

Nickel crystallizes in a face-centered cubic (FCC) lattice, and that structure explains the wire's behaviour in the shop: multiple slip systems allow uniform plastic deformation, so the wire bends, coils and forms without cracking, and weld joints stay consistent along the spool. The FCC lattice is also the basis of the material's magnetic behaviour — nickel is ferromagnetic up to its Curie point of 358°C, a fact worth knowing for components placed near sensitive electronics.

Corrosion Resistance in Chemical and Marine Service

Pure nickel resists corrosion in reducing media, alkalis and many organic environments, which is why it appears in chemical processing equipment, heat exchangers, valves and pumps. The resistance is inherent to the metal rather than to a surface treatment, so edges, cut ends and weld zones keep the same profile as the as-drawn surface. For specific media, confirm operating temperature and concentration against your process conditions — the mill certificate records the actual lot composition.

Grade Spectrum: Purity, Carbon and Cost

Four grades cover the pure nickel series: N4 (≥99.9% Ni+Co) for the most demanding purity and research service; N6 (≥99.5%) for general industrial use; Ni201 (≥99.0%, C ≤0.02%) for low-carbon, welding-sensitive applications; Ni200 (≥99.2%, C ≤0.15%) for standard mechanical and electrical duty. Purity, carbon limit and price move together, so the grade is chosen against the application — not by habit.

Sample Validation Before Production

Samples let you check drawing quality, surface and weld behaviour before committing volume. N6/Ni200 samples are free (0.5 kg); N4/Ni201 samples are charged and refunded on the first order of 50 kg or more. Confirm grade, diameter and temper on the sample, then production runs from 1 kg (micro wire) or 5 kg (standard wire) on the same drawing line and inspection criteria.

Pricing

Wire is priced by grade, FOB USD/kg: N4 $420-480, Ni201 $350-390, Ni200 $340-380, N6 $300-340. Micro wire (≤0.05 mm) from 1 kg; standard wire from 5 kg. Custom diameters and tight tolerances are quoted per drawing.

Chemical Composition

Mechanical & Physical Properties

Annealed wire: tensile strength ≥462 MPa, elongation ≥35%, hardness 90-120 HB. Physical constants: density 8.908 g/cm³, melting point 1435-1446°C, boiling point 2732°C, Curie point 358°C (ferromagnetic below), electrical resistivity 0.096 μΩ·m, thermal conductivity (Ni200) 70.2 W/m·K.

Quality Assurance

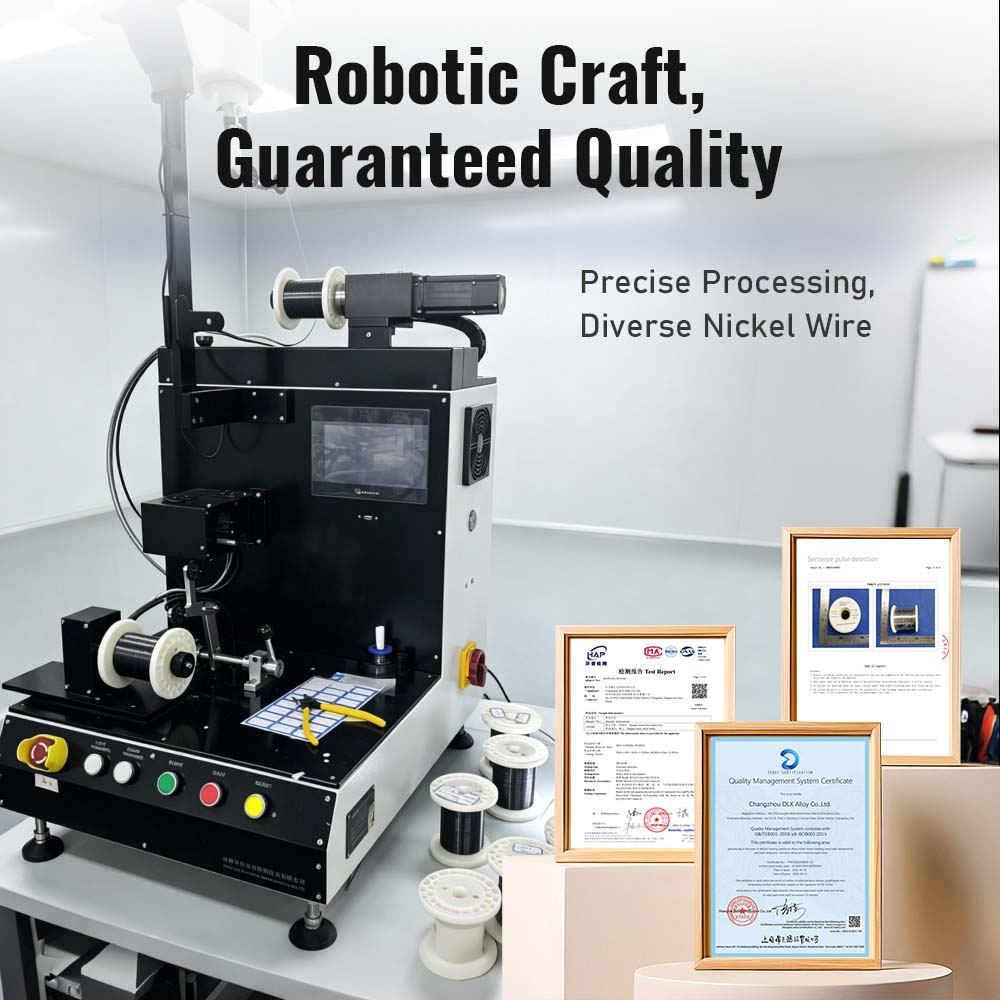

Produced on our own nickel drawing line, every batch passes chemical composition analysis, dimensional and surface inspection before packing. Mill test certificates (EN 10204 3.1) and batch records are available with shipment, and each coil is traceable back to its melt and lot.

Applicable Standards

Ni200/Ni201: ASTM B164 (Nickel Rod, Bar and Wire). N4/N6: GB/T 21653 (Nickel and Nickel Alloy Wire and Drawn Wire Stock). Export documentation per EN 10204 3.1.

References

Material data on this page follows ASTM B164 and GB/T 21653; corrosion and application guidance references the Nickel Institute and ASM Specialty Handbook: Nickel, Cobalt, and Their Alloys; batch-level composition and geometry are verified against mill test certificates (EN 10204 3.1) and in-house inspection records.

Packaging & Delivery

Wire is wound on spools packed in carton boxes, or supplied as coils in polybags, with protective material and a safety data sheet included. Worldwide shipping with tracking; import restrictions vary by destination country. Standard production ships in 7-15 days; small in-stock quantities in 3-7 days; custom diameters or tight tolerances in 15-30 days, confirmed per drawing.

About DZX Alloy

DZX Alloy has supported corrosion-sensitive industries since 2002, supplying pure nickel and specialty alloy wire, strip and tube from its Jiangsu, China facility. ISO 9001 & SGS quality systems, in-house drawing and finishing, and export experience across 60+ countries let DZX match wire grade, temper and diameter to the service media your application actually sees — from chemical processing equipment to battery manufacturing lines.

Submit your drawing and quantity for a confirmed quote.

FAQ

Q: What is the brand name of this product?
A: The brand name is DZX.

Q: What is the model number of this product?
A: The product is listed as Pure Nickel Wire with Face-Centered Cubic Structure and is supplied in four grades — N4, N6, Ni200 (UNS N02200) and Ni201 (UNS N02201). Confirm the grade with your drawing.

Q: Where is this product made?
A: It is made in Jiangsu, China.

Q: What are the available dimensions?
A: Wire diameters range from 0.025 mm to 10 mm; custom diameters and tolerances are produced per drawing.

Q: Is this product suitable for industrial use?
A: Yes — it is supplied to chemical processing, battery and electronics manufacturers; confirm grade, diameter and quantity for a quote.

Q: What does the face-centered cubic structure mean for my wire?
A: Nickel crystallizes in an FCC lattice, which gives the wire uniform plastic deformation — it bends, coils and welds consistently — and is the basis of its ferromagnetic behaviour (Curie point 358°C).

Q: What is the minimum order quantity?
A: Micro wire (≤0.05 mm) from 1 kg; standard wire from 5 kg.

Q: What is the delivery time?
A: 3-7 days for small in-stock quantities, 7-15 days for standard production, 15-30 days for custom diameters or tight tolerances (per drawing).

Q: Do you provide samples and mill certificates?
A: Samples are available — free 0.5 kg for N6/Ni200; charged for N4/Ni201 and refunded on the first order of 50 kg or more. Mill test certificates (EN 10204 3.1) are issued with each shipment on request.
