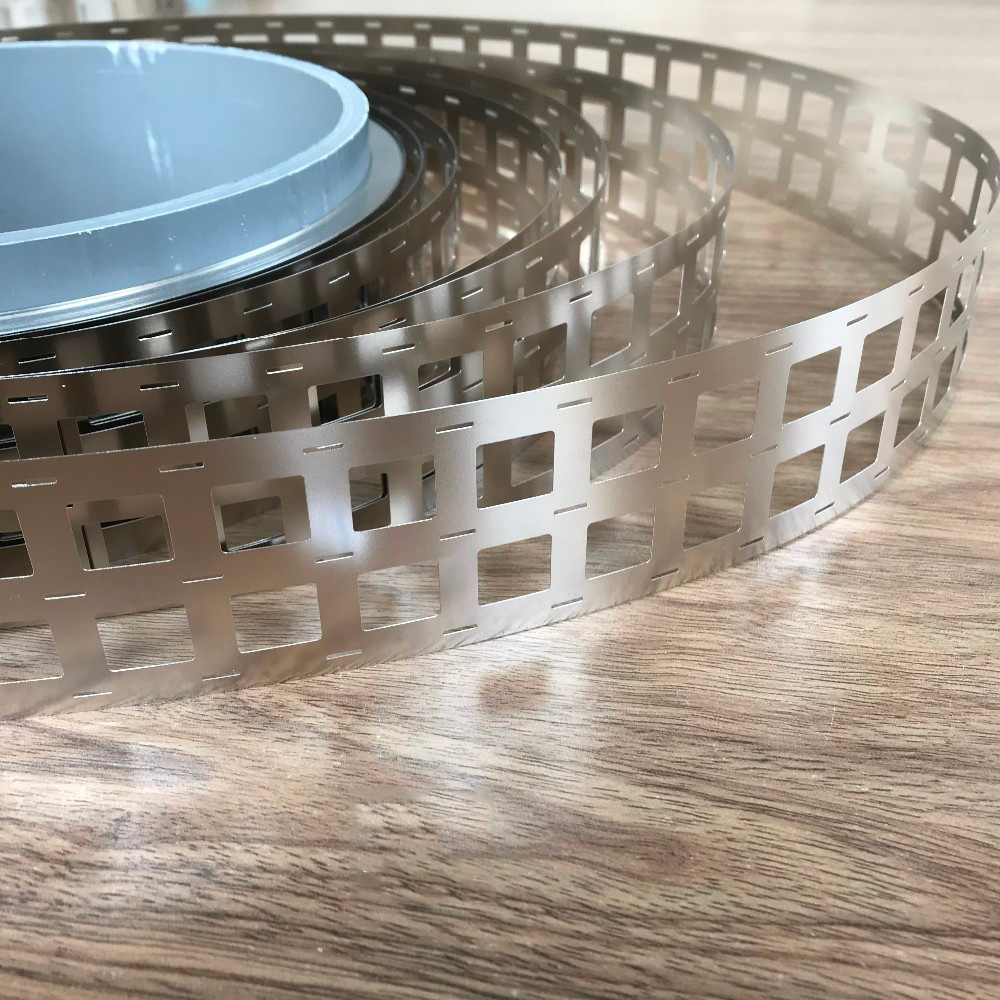

Our soft and hard dual-state nickel plated copper strip is independently developed and fully produced by DZX, specially engineered as core raw busbar material for all types of lithium battery packs. We adopt high-purity T2 oxygen-free copper as substrate and apply our self-developed low-stress continuous nickel electroplating process, supporting adjustable soft temper and rigid hard temper to match different battery internal connection structures. The compact, pinhole-free nickel plating layer tightly bonds with copper without peeling during bending, stamping, thermal cycling or long-term high-current discharge inside battery modules.

The biggest headache plaguing lithium battery manufacturers is choosing between flexibility and structural stability, plus the conflict between conductivity and anti-oxidation capacity. Bare copper busbars deliver great conductivity but oxidize quickly in humid battery workshops, pushing contact resistance higher and triggering abnormal heat buildup during charge-discharge cycles. Pure nickel strips resist corrosion well yet carry extremely low conductivity, creating massive energy loss and temperature spikes under high load. Meanwhile, single-temper copper strips cannot fit mixed battery design requirements: soft materials lack rigidity for fixed main busbars, while hard strips crack easily when bent for flexible cell connections. DZX dual-state nickel plated copper busbar raw material solves all these flaws simultaneously. The copper core maintains 94–96% IACS conductivity close to pure copper, the nickel coating blocks moisture, electrolyte vapor and airborne oxidation, and switchable soft/hard temper covers all busbar structural demands in one material series.

We run every production procedure in-house from copper slab rolling, surface micro-activation, nickel plating, segmented annealing for soft/hard state separation, to burr-free precision slitting, without outsourcing plating or heat treatment links. Every finished roll undergoes 100% offline testing for conductivity, plating thickness, mechanical bending performance and salt fog resistance before shipment. All materials meet RoHS, REACH and IATF 16949 automotive-grade standards, eliminating hidden risks of battery thermal runaway caused by unqualified busbar raw materials. Real-time optical thickness detectors operate on all production lines to lock plating thickness, temper hardness and dimensional tolerance within ultra-narrow fluctuation ranges, guaranteeing consistent performance across thousands of bulk batches.

This dual-temper nickel plated copper busbar strip dominates lithium battery manufacturing, covering three fast-expanding downstream application fields driven by global energy transition.

First, new energy vehicle power battery packs. Hard-state strips serve as rigid main busbars connecting battery modules and high-voltage contactors, offering stable structural support under vehicle vibration; soft-state strips act as flexible cell jumpers, absorbing thermal expansion gaps during repeated heating and cooling to avoid fracture failures.

Second, grid & household energy storage battery cabinets. Outdoor storage systems face drastic temperature shifts and coastal salt fog erosion. Hard temper busbars fit fixed cabinet power distribution structures, while soft flexible strips are used for modular battery internal connections to ease assembly tolerance deviations.

Third, portable energy storage & two-wheeler lithium batteries. Miniaturized battery packs require thin, bendable soft nickel-plated copper strips for compact cell linking, and small rigid hard-state busbars for external output terminals with structural load demands.

Global lithium battery market expansion continuously lifts demand for high-performance composite busbar materials. Industry data shows the annual compound growth rate of nickel plated copper busbar raw materials reaches 13.6% from 2026 to 2030. Stricter battery safety and energy efficiency standards push pack manufacturers to phase out single-temper bare copper and pure nickel raw materials. Mid-to-high-end lithium battery factories gradually adopt dual-state nickel-plated copper strips to reduce assembly scrap rates and extend full battery service life, as modular and high-voltage battery architectures become mainstream worldwide.

We collect thousands of on-site production feedback from lithium battery manufacturers cooperating with generic material processors, summarizing five core quality defects brought by non-DZX conductive strips:

1. Rapid oxidation of bare copper busbar strips: Within 2–3 weeks of warehouse storage or humid workshop environment, black copper oxide covers surfaces, sharply raising contact resistance and causing battery overheating under continuous discharge.

2. Single fixed temper without adjustable options: Conventional suppliers only provide soft or hard copper strips separately. Factories need to purchase two different raw materials for mixed busbar designs, increasing procurement and inventory management costs.

3. Uneven nickel plating on low-cost processed strips: Discontinuous batch electroplating creates thin plating areas and pinholes; salt fog tests fail within 24 hours, and electrolyte vapor penetrates copper base to form hidden corrosion points inside sealed battery packs.

4. Nickel coating peeling during stamping and bending: Suppliers skipping pre-plating micro-etching produce strips with weak metal bonding. Coating flakes off after folding, exposing bare copper that oxidizes and ruins spot welding joints between cells and busbars.

5. Unstable batch consistency from small-scale processors: Manual random sampling inspection leads to wide fluctuations in plating thickness and temper hardness between batches. Battery factories must frequently adjust stamping, bending and welding equipment parameters, pushing up labor testing costs and finished product scrap rates.

All these costly production and battery reliability risks can be fully eliminated by switching to DZX standardized soft & hard dual-state nickel plated copper busbar strips, supported by our full-process closed-loop parameter monitoring system.

We break down key technical metrics that directly decide lithium battery safety, transmission efficiency and assembly compatibility for battery design engineers:

IACS Conductivity: International Annealed Copper Standard. DZX dual-state strips maintain 94–96% IACS, minimizing heat loss and energy consumption during high-current power transmission.

Nickel Plating Thickness: Adjustable range 1μm–10μm; 3μm standard for portable lithium batteries, 5μm recommended for EV and outdoor energy storage packs. Too thin coating fails anti-corrosion testing; overly thick nickel raises overall resistance and weakens spot welding fusion.

Dual Temper Mechanical Index: Soft temper elongation ≥30%, tensile strength 220–280MPa for deep bending flexible jumpers; hard temper tensile strength 400–520MPa, elongation ≤8% for rigid fixed main busbars with structural load requirements.

Neutral Salt Spray Resistance: Standard DZX products pass 72-hour salt fog testing without corrosion spots; customized automotive grades support 200-hour salt mist compliance for vehicle power batteries.

Copper Base Purity: T2 oxygen-free copper with copper content ≥99.90%, low impurity levels prevent local hot spots under high-frequency large current discharge.

Dimensional Tolerance: Thickness tolerance ±0.003mm, width tolerance ±0.02mm, burr-free slit edges to avoid puncturing battery cell diaphragms during assembly.

We contrast DZX full-industry-chain manufacturing strengths with ordinary third-party material factories, highlighting differentiated core advantages without naming competing brands:

1. Independent full-process production lines & in-house R&D laboratory: We operate 8 continuous nickel electroplating lines and dedicated segmented annealing furnaces for soft/hard temper production, holding multiple composite copper busbar material patents. Most peer processors outsource plating and heat treatment, unable to adjust temper hardness and nickel coating formulas to match mixed busbar battery designs. Our technical team optimizes coating density, copper hardness and surface roughness based on customer battery drawings within three working days.

2. Complete full-range global certification portfolio: DZX owns IATF 16949, ISO9001, ISO14001, RoHS and REACH certifications, and provides full SGS test reports attached to every shipment batch. Small-scale processing factories rarely possess vehicle-grade certification required by EV battery pack manufacturers.

3. 24-hour real-time batch consistency monitoring: Automatic optical thickness and hardness detectors run on all production lines for uninterrupted sampling performance testing. Generic factories rely on irregular manual spot checks, causing wide fluctuations in plating thickness and temper hardness between batches and generating extra production loss for downstream battery manufacturers.

4. Flexible low-MOQ customized service system: We support single-sided nickel plating, partial masking plating, customized thickness/width rolls and freely matched soft/hard temper combinations, with trial order MOQ as low as 50kg. Conventional suppliers only stock fixed single-temper standard sizes with minimum order quantity exceeding 500kg.

5. Professional lithium battery material technical support: All DZX sales engineers hold electronic alloy material engineering backgrounds, offering free material selection optimization suggestions at the battery pack design stage to match rigid and flexible busbar layout requirements. Most raw material vendors only complete delivery without downstream application technical consulting.

6. Stable sufficient mass supply capacity: Our monthly production output reaches 180 tons, with large reserves of high-purity T2 copper raw materials to avoid delivery delays caused by copper price volatility and raw material supply shortages, a widespread pain point for capital-limited small manufacturers.
