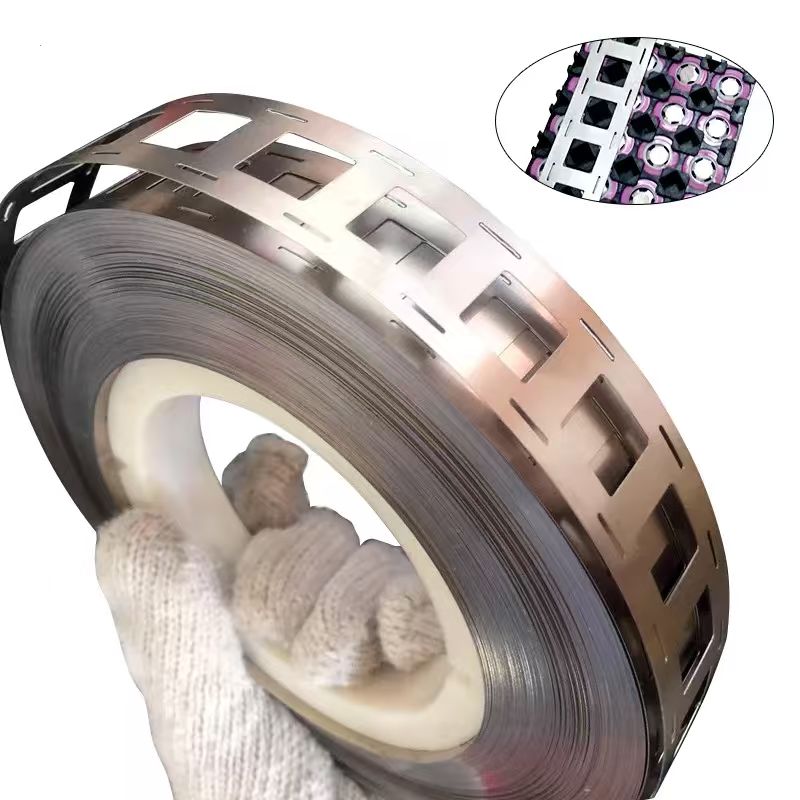

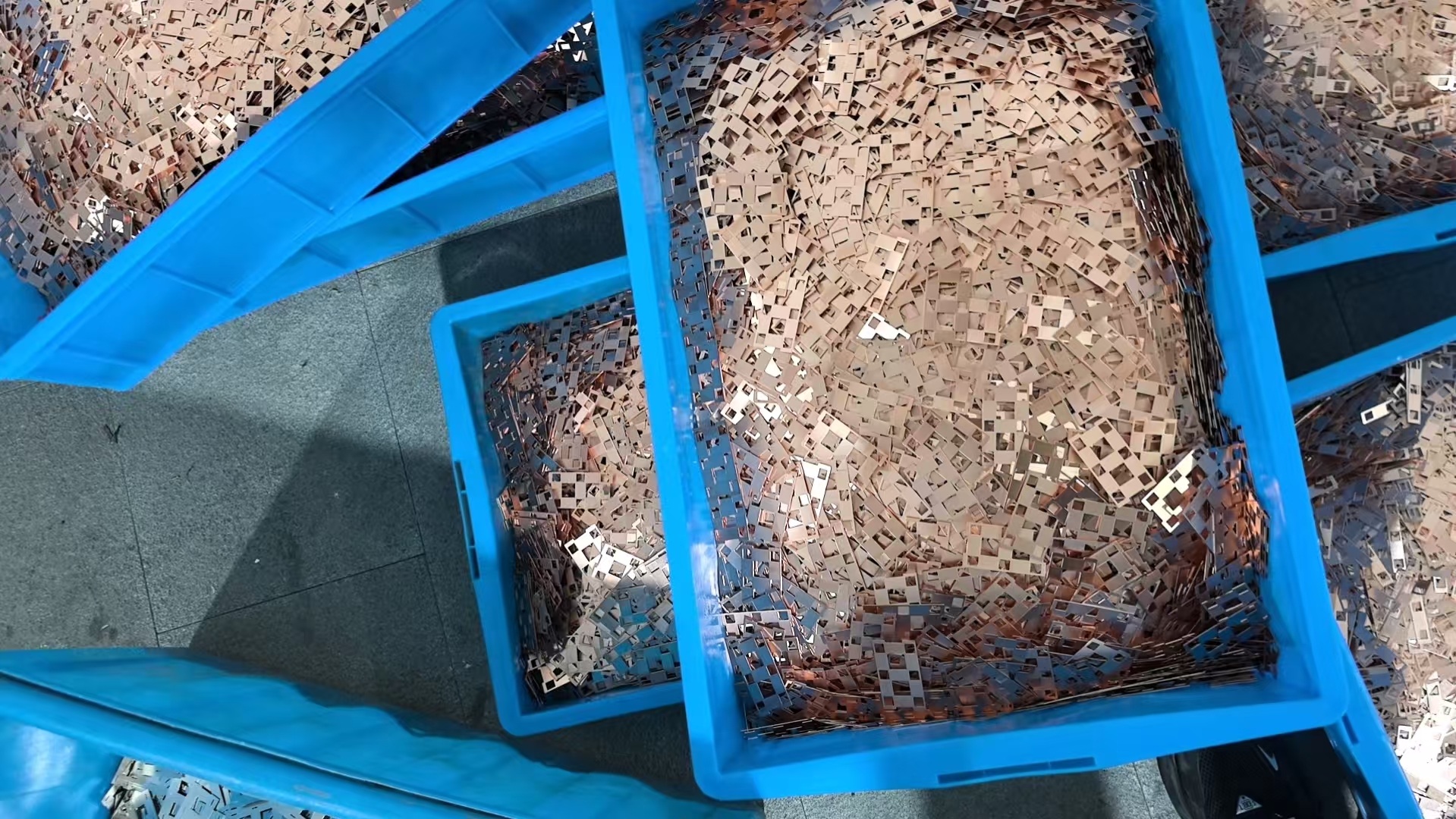

Our low resistance nickel plated copper strip is independently researched, rolled and electroplated at DZX, engineered exclusively for new energy connector components that carry sustained high current. We adopt high-purity T2 oxygen-free copper as the core substrate and deploy our proprietary low-resistance uniform nickel plating process, which creates thin, compact, stress-free nickel layers tightly bonded to copper without pinholes, uneven plating or flaking after stamping, bending and long-term plug-in cycles.

A persistent industry dilemma we fully resolve is the trade-off between electrical conductivity and oxidation protection. Bare copper strips deliver great conductivity but oxidize quickly in damp new energy workshops, spiking contact resistance and triggering overheating in connectors during high-power discharge. Pure nickel strips resist corrosion naturally yet carry extremely high inherent resistance, causing severe energy loss and temperature surges in vehicle and energy storage connectors. DZX’s composite nickel-plated copper material eliminates both drawbacks at once. The thick copper core retains near-pure-copper conductivity to cut power loss, while the dense nickel barrier isolates moisture, electrolyte vapor and airborne impurities to stop surface oxidation.

We manage every production step internally from copper slab hot rolling, surface micro-activation, continuous electroplating, precise low-temperature annealing to burr-free slitting, instead of outsourcing plating processes to third-party factories. Every finished roll undergoes full offline electrical and mechanical testing before shipment. All materials comply with RoHS, REACH and IATF 16949 automotive standards, eliminating hidden risks of connector burnout caused by impure substrates or defective plating. The stable, consistent surface texture also optimizes automated assembly and spot welding for connector manufacturers, lowering manual rework rates on production lines. We maintain strict closed-loop parameter monitoring across all production lines to keep electrical and mechanical performance uniform across thousands of bulk batches.

This low-resistance nickel-plated copper strip stands as a core foundational material for all mainstream new energy connector production, covering three rapidly expanding downstream sectors.

First, new energy vehicle high-current connectors. EV battery pack internal connectors, charging gun terminals, motor wiring harness connectors and relay contact components rely on our strips to handle continuous large current under vehicle vibration, drastic temperature swings and road salt fog exposure.

Second, energy storage system cabinet connectors. Grid energy storage and household backup power cabinets operate outdoors year-round, requiring connector raw materials with ultra-stable low resistance and long-term anti-corrosion performance to guarantee decades of safe power transmission.

Third, portable power & two-wheeler lithium battery connectors. Miniature lightweight connectors for power stations, electric bike battery modules and consumer energy devices demand thin, bendable conductive strips compatible with compact automated stamping.

Global new energy sector expansion drives surging market demand for high-performance connector conductive materials. Industry data shows annual demand growth of 13.5% for low-resistance plated copper strips between 2026 and 2030. Stricter safety and efficiency standards for EV and energy storage equipment push manufacturers to phase out low-cost bare copper and pure nickel raw materials, shifting to composite nickel-plated copper strips to reduce connector failure rates and energy consumption.

We compile thousands of real after-sales feedback from connector manufacturers, summarizing five recurring critical defects from generic non-DZX conductive strips:

1. Rapid oxidation of bare copper strips: Within 2–3 weeks of storage or humid workshop operation, black copper oxide forms on surfaces, lifting contact resistance sharply and causing connector overheating under high load.

2. Uneven plating on cheap electroplated strips: Discontinuous batch plating creates thin plating areas and pinholes; salt fog test failure occurs within 24 hours, leading to hidden corrosion and intermittent power disconnection in connectors after long service.

3. Nickel coating peeling during stamping and bending: Suppliers skipping pre-plating surface treatment produce strips whose nickel layers flake off after folding, exposing bare copper that oxidizes and ruins welding joints.

4. Excessive resistance of pure nickel strips: Only 22% IACS conductivity leads to extreme heat generation under 50A+ continuous current, making pure nickel unsuitable for high-power new energy connectors.

5. Unstable batch performance consistency: Small-scale processors use manual sampling inspection only; plating thickness fluctuates widely between batches, forcing connector factories to repeatedly adjust welding equipment parameters and raising scrap and labor costs.

All these costly production and product reliability issues are completely avoided by switching to DZX standardized low-resistance nickel plated copper strip, as we lock all key material indicators within ultra-tight tolerance limits via real-time line monitoring.

We break down critical technical metrics that directly determine connector safety, power efficiency and service life for design engineers:

IACS Conductivity: International Annealed Copper Standard. Our finished strips hit 94–96% IACS, minimizing heat loss during high-current transmission.

Nickel Plating Thickness: Adjustable range 1μm–10μm; 3μm standard for portable energy connectors, 5μm recommended for EV and outdoor energy storage connectors. Thin plating fails anti-corrosion tests; overly thick nickel raises overall resistance and weakens welding fusion.

Tensile Strength & Elongation: Soft temper elongation ≥30% for deep-bent miniature connectors; hard temper tensile strength 400–520MPa for spring contact connectors with frequent plug-in cycles.

Neutral Salt Spray Resistance: Standard products pass 72-hour neutral salt spray testing without corrosion; automotive customized grades support 200-hour salt fog compliance.

Copper Base Purity: T2 oxygen-free copper with copper content ≥99.90%, low impurity levels prevent localized hot spots under high-frequency large current.

Dimensional Tolerance: Thickness tolerance ±0.003mm, width tolerance ±0.02mm, burr-free slit edges to prevent insulation puncturing during connector assembly.

We contrast DZX’s full-industry-chain strengths with ordinary third-party processing factories, highlighting differentiated value for new energy connector clients without naming competing brands:

1. Independent production lines and internal R&D laboratory: We operate 8 continuous nickel electroplating lines and hold multiple patents for composite conductive materials. Most peer suppliers outsource plating, unable to adjust nickel coating formulas to match unique connector operating environments. Our engineering team optimizes coating stress, copper hardness and surface roughness based on customer connector drawings within three working days.

2. Complete full-range industrial certifications: DZX holds IATF 16949, ISO9001, ISO14001, RoHS and REACH certifications, and supplies full SGS test reports with every shipment. Small-scale processors rarely own vehicle-grade certification required by automotive connector manufacturers.

3. 24-hour real-time batch consistency control: Optical thickness detectors run on all production lines for automatic sampling testing. Generic factories rely on irregular manual checks, causing plating thickness fluctuations over ±1μm between batches and generating extra production losses for connector manufacturers.

4. Flexible low-MOQ customization service: We support single-sided plating, partial masking plating, custom width/thickness rolls and tailored metal temper, with trial order MOQ as low as 50kg. Conventional suppliers only stock fixed standard sizes with minimum orders exceeding 500kg.

5. Professional new energy material technical support: All DZX sales engineers hold electronic material engineering backgrounds, offering free material selection guidance at the connector design stage. Most material vendors only deliver finished goods without downstream technical consulting.

6. Stable mass supply capacity: Monthly production capacity reaches 180 tons, with large T2 copper raw material reserves to avoid delivery delays caused by copper price volatility and raw material shortages, a widespread issue for capital-limited small manufacturers.

7.

3μm nickel plating balances cost and performance for portable energy and two-wheeler connectors. EV and outdoor energy storage high-power connectors need 5μm plating for long-term salt fog and oxidation resistance. Our engineers recommend optimal thickness after evaluating your connector’s working environment.

No. Our low-stress nickel layer forms a thin conductive interface during welding pulses, forming firm copper-nickel fusion joints without extra power adjustment. Mass clients record a 3–5% increase in welding yield compared with generic plated strips.

Yes. Pre-plating micro-etching and low-temperature annealing strengthen metallurgical bonding between nickel and copper substrate. After 50 repeated 90° bending tests, zero coating shedding occurs, fully compatible with automated stamping for ultra-thin miniature connectors under 0.5mm thickness.

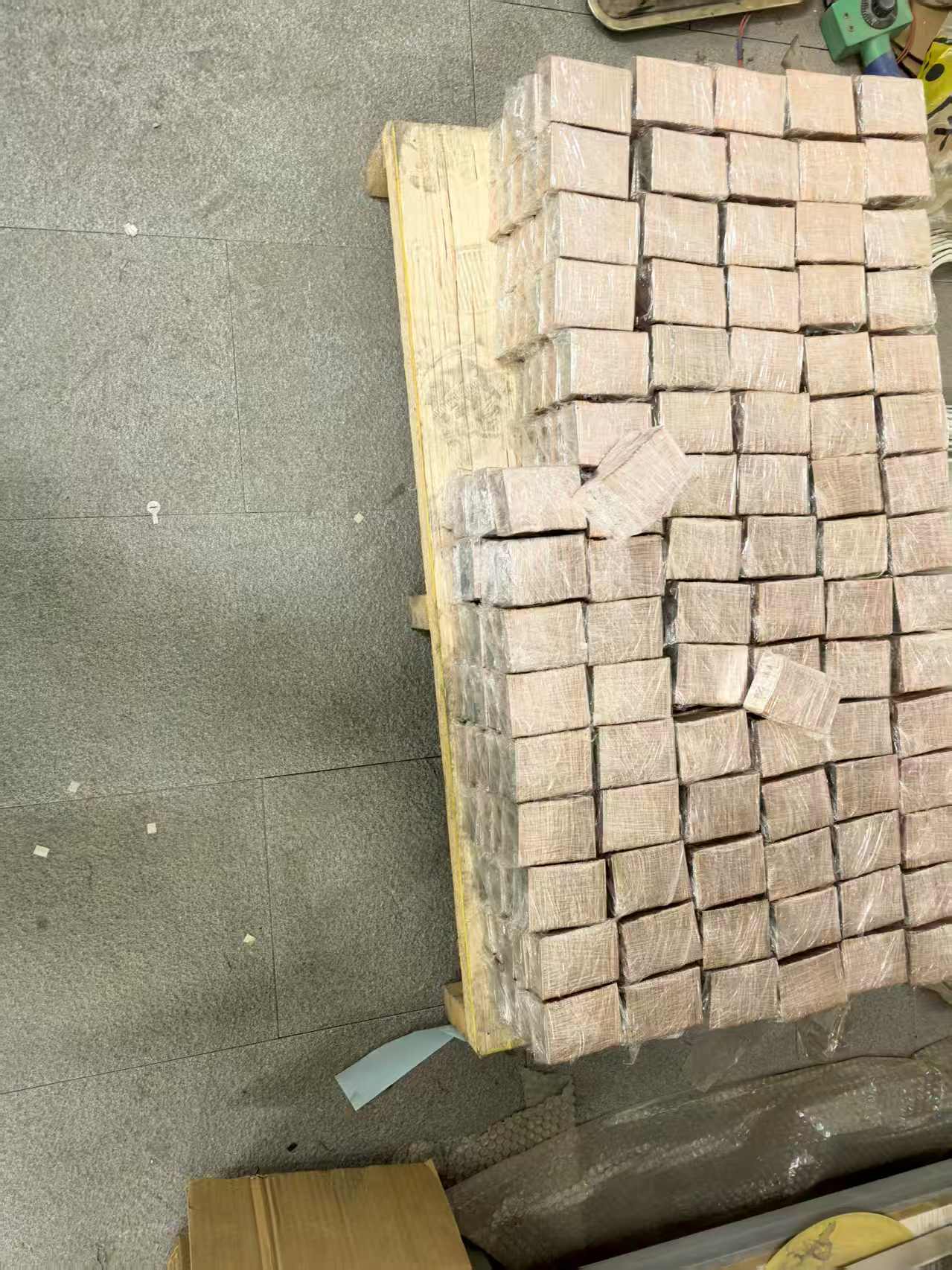

Sealed anti-rust packaging guarantees six months of indoor storage with zero surface oxidation, far superior to bare copper’s two-week storage limit. Vacuum anti-corrosion packaging is available for coastal high-humidity production workshops.

All core specifications comply with IATF 16949 automotive standards, passing 200-hour salt fog, thermal cycle and vibration aging tests. We provide stable bulk supply for multiple first-tier automotive connector manufacturers.

Full customization is supported. We adjust copper thickness (0.05–5mm), width (5–350mm), soft/hard temper, single-sided plating and pre-cut fixed-length rolls per customer drawings with low trial order MOQ.

Our finished strips reach 94–96% IACS conductivity, merely 4–6% lower than bare copper. Under identical high-current load, the temperature rise gap stays below 3℃, while anti-oxidation service life improves over 10 times.

Free third-party SGS inspection reports are attached to every delivery batch. If quality doubts emerge, we offer complimentary laboratory testing for conductivity, plating thickness, salt fog resistance and tensile strength on incoming materials.

Low resistance nickel plated copper strips have become standard raw materials for mid-to-high-end new energy connector manufacturing, yet many connector producers still struggle with unstable material quality, shortened connector service life and elevated assembly scrap rates when cooperating with ordinary material suppliers. As a professional composite conductive strip manufacturer with independent R&D and full-process production control, DZX addresses all material matching pain points for connector manufacturers from prototype trial production to consistent mass delivery.

We can provide customized one-stop conductive strip solutions covering nickel plating formula optimization, dimensional specification tuning, temper matching and dedicated anti-rust packaging design, fully aligned with your connector structural design, automated assembly equipment parameters and long-term power reliability requirements. Our technical team completes free material performance simulation verification before formal sample delivery, helping you cut connector failure risks and reduce overall manufacturing costs. Share your connector drawings and operating condition parameters with our team for personalized material recommendations and sample support.
