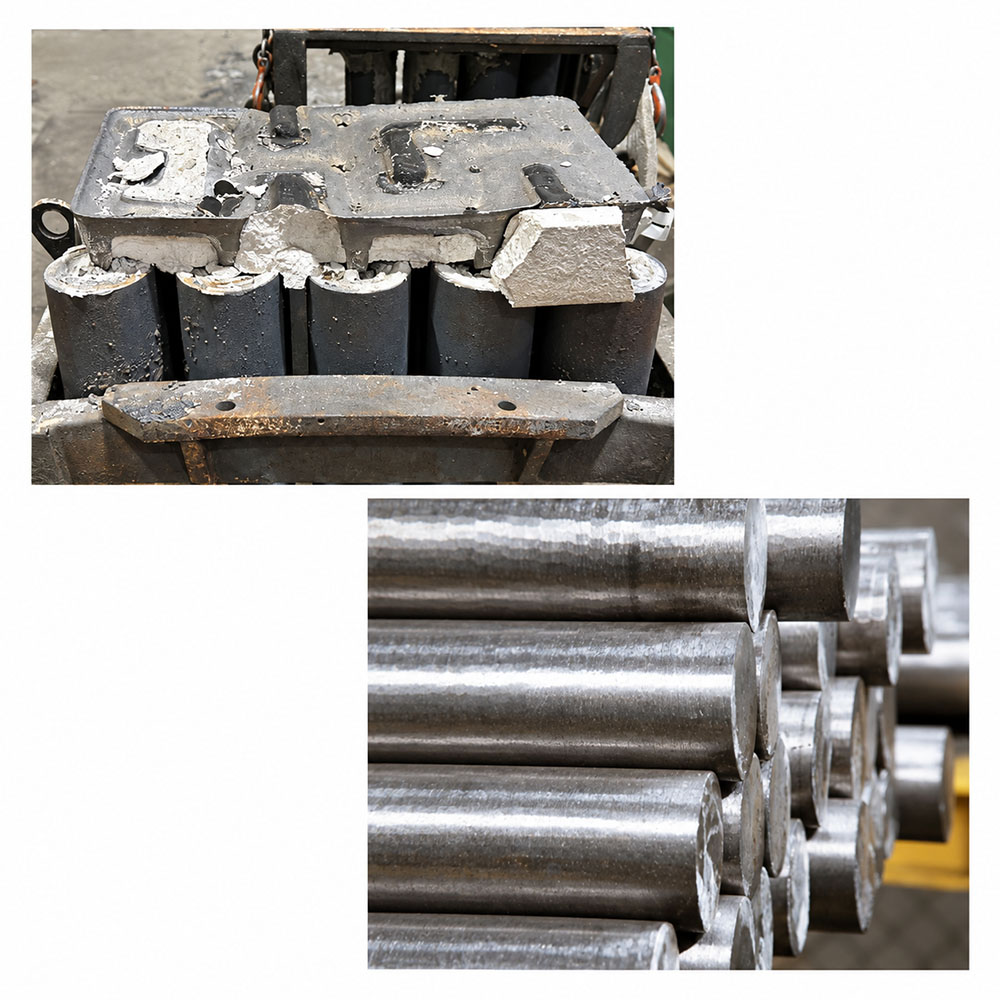

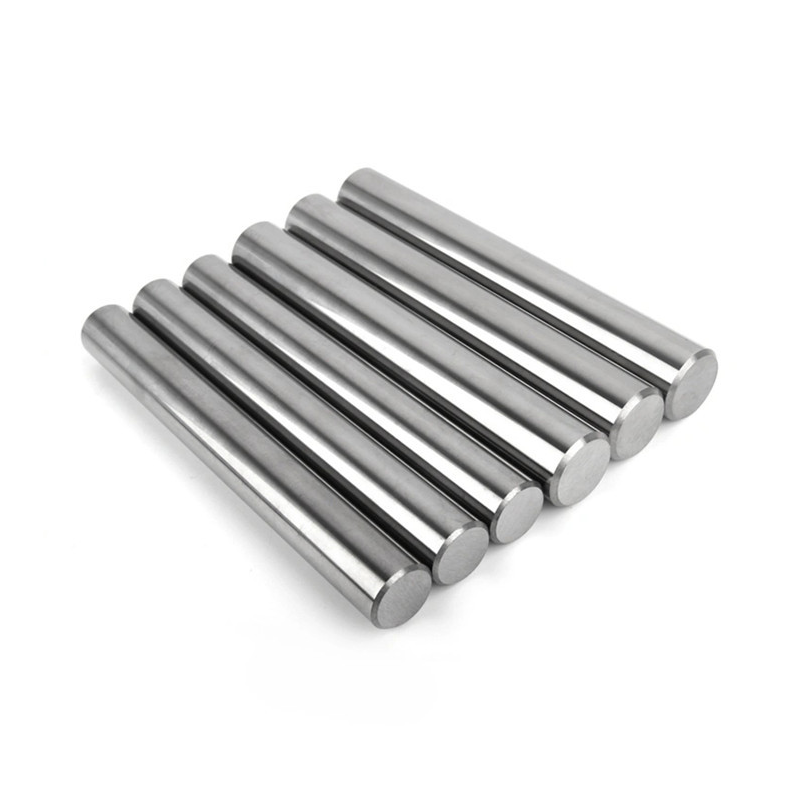

A turbocharger wheel line buys a charge addition on one condition above the rest: the next lot has to behave like the last one. K438 (738LC) master alloy bar is cast to order in round sections from 8.0 mm to 200 mm, with the composition and the impurity limits agreed before the melt and the lot released against that agreement.

K438 (738LC) in a Turbocharger Casting Programme

K438 is a cast grade designation from the cast grade series used for high-temperature alloys in the Chinese standard system, and the same material is written under 738LC. A casting programme buys the bar as an addition to its own melt, so what has to be specified is the composition the programme's route calls for, not a table of finished-part properties.

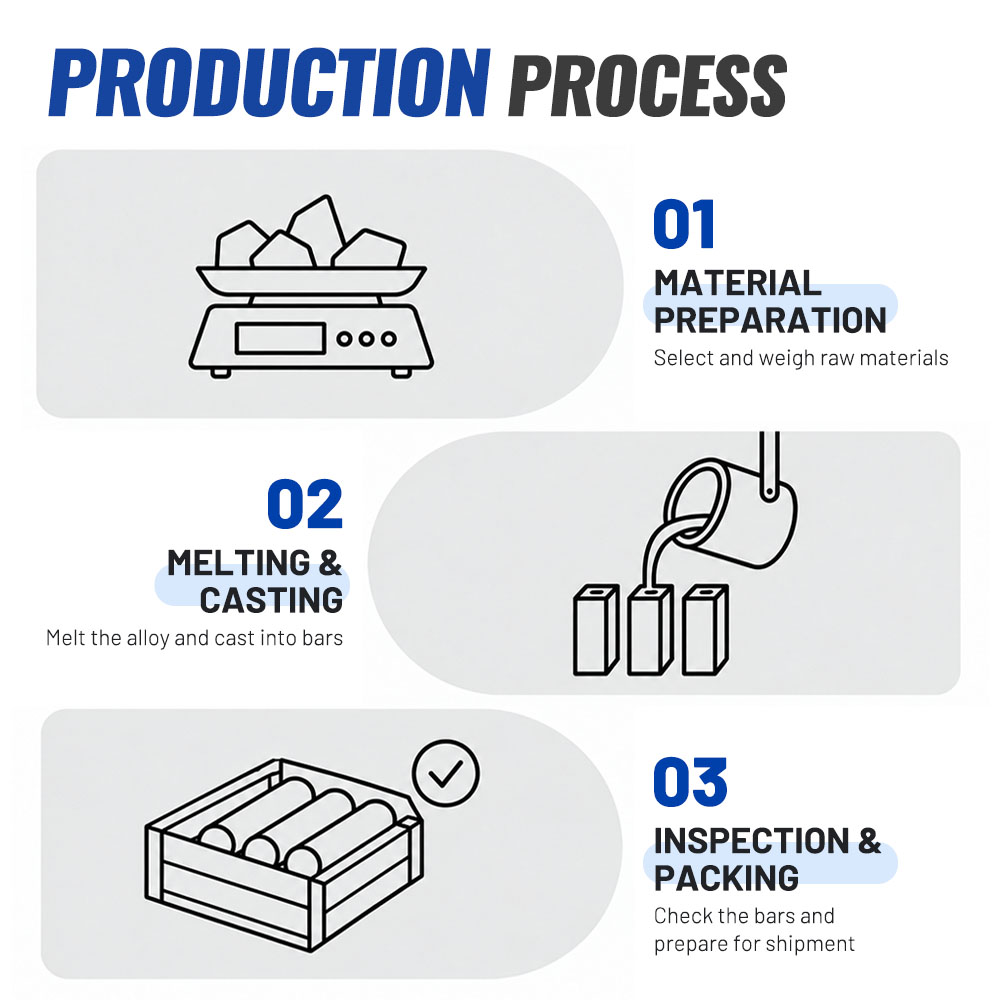

A supplier does not select the grade. It is named in the programme's own specification, and what has to be held is the agreed composition, with the section and the cut length carried on the order. In form the bar belongs with the other high temperature alloy bar products cast at this plant, and it comes off the same route: vacuum melting and a composition check before bar casting into round section.

Specifications

Key Strengths

• Melted to the composition the casting programme specified, one grade per cast.

• Cut lengths matched to the charging bucket in use on the line.

• A mill test certificate issued for every heat and kept with the lot file.

• One release standard applied from the first lot of a campaign to the last.

• Vacuum melting and bar casting carried out on one site.

Technical Details

What a Turbocharger Programme Fixes Before the Melt

The casting programme settles the grade and the limits. The foundry settles the cast section and the cut length, because those follow from the crucible and the charging bucket in use on the line rather than from a drawing of the finished wheel. The quantity then decides whether the melt sits inside a campaign or stands on its own, and the packing follows the quantity.

Reading the Enquiry Against the Casting Requirement

An enquiry reaches a supplier with a grade name and a cast section, together with the quantity required. The grade name points at the composition the programme needs, and the section has to be one the line can charge without a second operation on site. Where a customer works to a designation from another system, the offer is built on the composition rather than on a translated name, so the comparison the foundry makes on arrival is between numbers and not between titles.

Repeatability Across a Casting Campaign

A wheel programme runs over months, and each lot that arrives is measured against the one before it. The grade agreement and the section stay fixed between lots, so the incoming inspection routine is unchanged and a drift is visible when one appears. Setting a new lot beside the previous certificate takes a minute when both documents carry the same fields.

Charging Practice on a Wheel Casting Line

Cut length is what turns a cast bar into a usable addition. A line that charges a set weight per heat wants pieces that can go straight onto the charge, without a cutting step between the store and the furnace and without offcuts that cannot be traced back to a lot. The length is agreed when the order is placed and it stays fixed for a repeat unless the charging practice at the line changes.

The Casting Line This Grade Serves

K438 (738LC) is charged in investment casting operations for turbocharger wheels and for other cast components that see high temperature in service. Pump or valve bodies and heat-treatment hardware are charged on the same basis. In every case the bar enters the melt as an addition, so the specification that matters to a foundry is the composition agreed for the programme.

Quality Assurance

The release point that counts on a cast lot is the finished material. The melt is checked against the agreed grade, the lot is checked again as it is released, the surface is examined for cracks and contamination, and where the order asks for it the structure is assessed for uniformity. Because the same sequence is repeated on every lot, a programme receives one release standard from the first cast to the last.

References

Both designations for this grade come from the cast grade series applied to high-temperature alloys in the Chinese standard system. What governs a lot is the grade agreed on the order, checked against the mill test certificate and the inspection records held for that heat. Background reading for nickel-base cast grades is drawn from ASM International's handbook on nickel and cobalt alloys and from Nickel Institute publications.

Packaging & Delivery

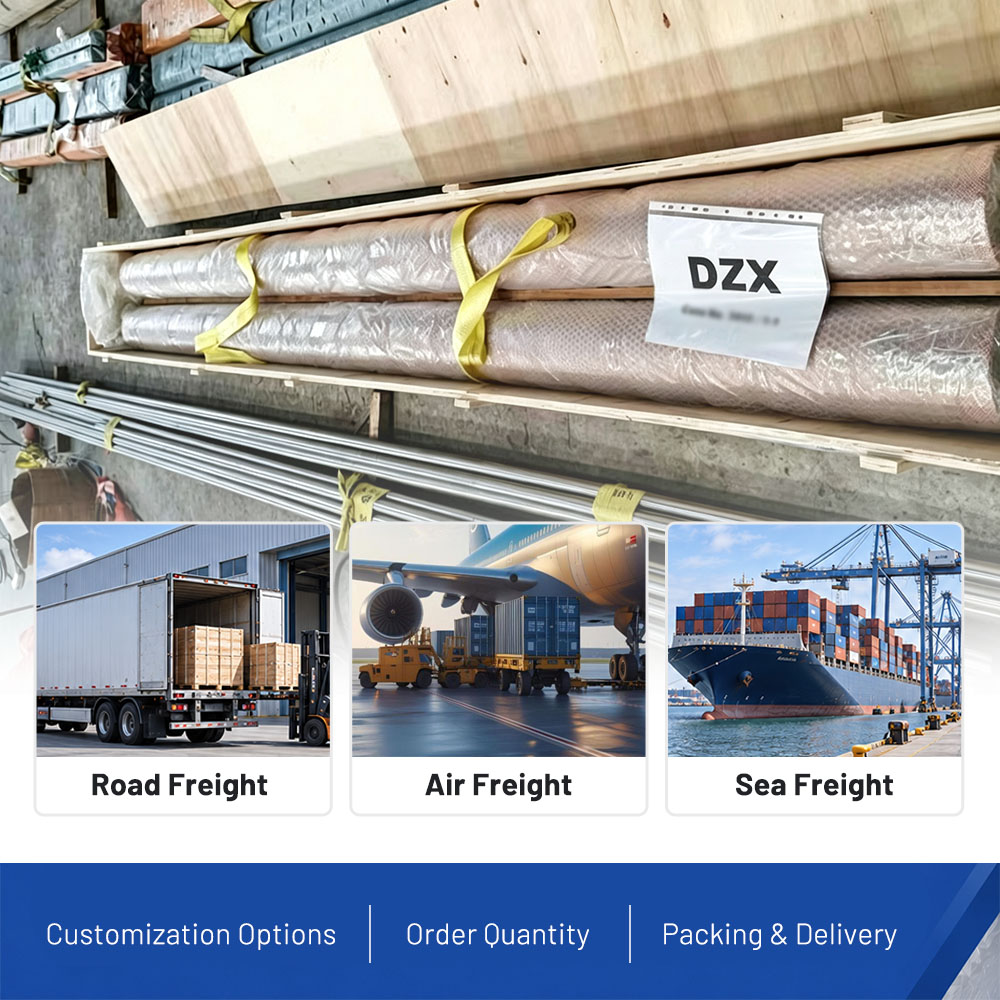

Bar travels in rod bundles with protective wrapping inside export wooden cases marked with the grade and the lot number, so a case can be checked against the packing list on arrival. Cutting to the ordered length is completed before packing, which means the pieces reach the line ready for the charge rather than waiting for a saw. Production is scheduled 15-30 days from order confirmation and freight is quoted against the destination named on the enquiry.

About DZX Alloy

Jiangsu DZX Technology Co., Ltd. began melting and processing alloys at its Changzhou, Jiangsu plant in 2002 and works under ISO 9001 and SGS audited systems. The master alloy line draws on the same melt shop and the same cutting and packing areas as the rest of the plant's output, which is why a cast grade lot follows the checks used for recurring business rather than a separate routine for small orders.

Send the grade and the section the casting line charges with, and the offer follows with a cast date.

FAQ

Q: Which casting programmes is K438 (738LC) supplied into?
A: Investment casting operations for components that see high temperature in service, turbocharger wheels among them, together with pump or valve bodies and heat-treatment hardware.

Q: Does the order have to use the same grade name?
A: The composition and the impurity limits are what the cast is made to. A designation from another standard system is matched by agreeing those figures on the order.

Q: What diameter suits a turbocharger wheel casting?
A: It follows from the crucible and the charging practice on the line rather than from a general catalogue figure, and the section is agreed when the order is placed.

Q: How is repeatability held across a campaign?
A: The grade agreement and the section stay fixed, so each arrival is read against the previous certificate on the same fields.

Q: Which documents travel with each lot?
A: Every lot moves with its mill test certificate, which states the composition of the heat. The packing list carries the case numbers, and the invoice and bill of lading complete the set for the destination.

Q: How is the surface checked before packing?
A: The bar is examined for cracks and contamination, and the structure is assessed for uniformity where the order asks for it.

Q: How is a campaign scheduled?
A: Each lot is booked on a 15-30 day window from order confirmation, and a repeat ordered ahead of the next melt keeps the line supplied.

Q: Does the grade change if the casting programme changes?
A: Yes. One grade is cast per lot, so a programme that moves to another grade is quoted on the composition fixed for that grade.

Q: How is the bar packed for a casting shop?
A: Bundled with protective wrapping in export wooden cases, marked with the grade and the lot number and cut to the ordered length before packing.

Q: What if the foundry's own analysis differs from the certificate?
A: The certificate documents the composition of the lot supplied, so a difference can be traced against a recorded input rather than against an assumption.
