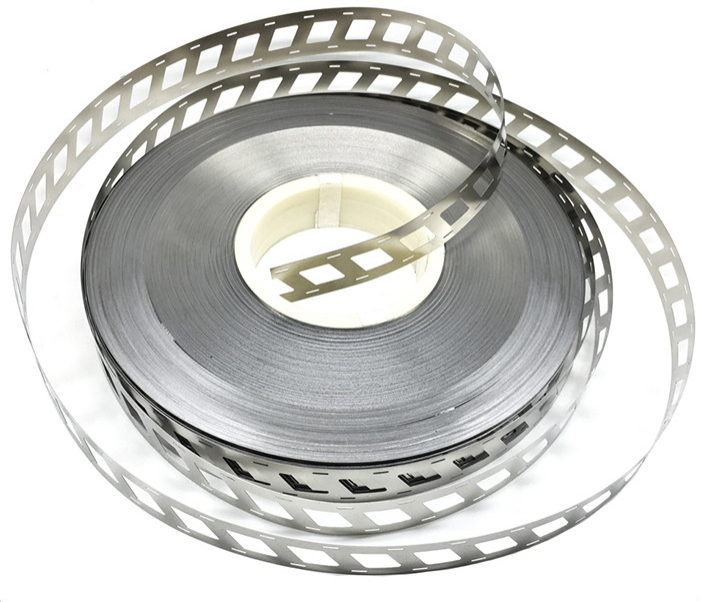

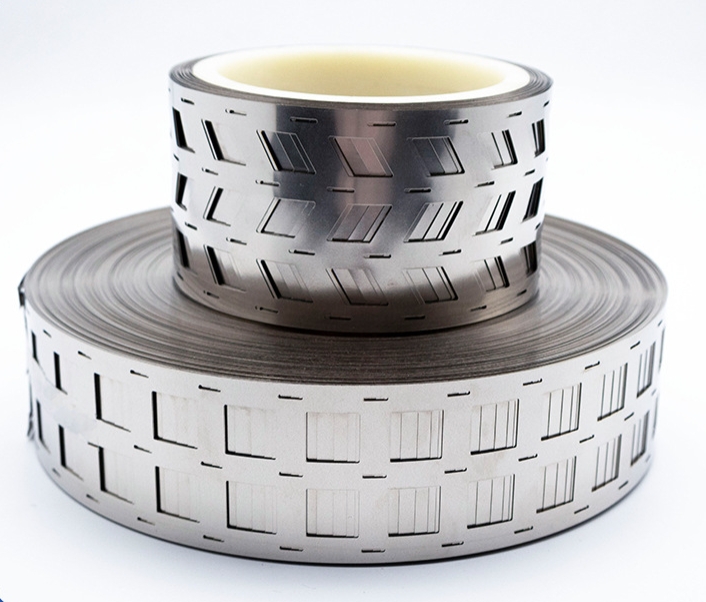

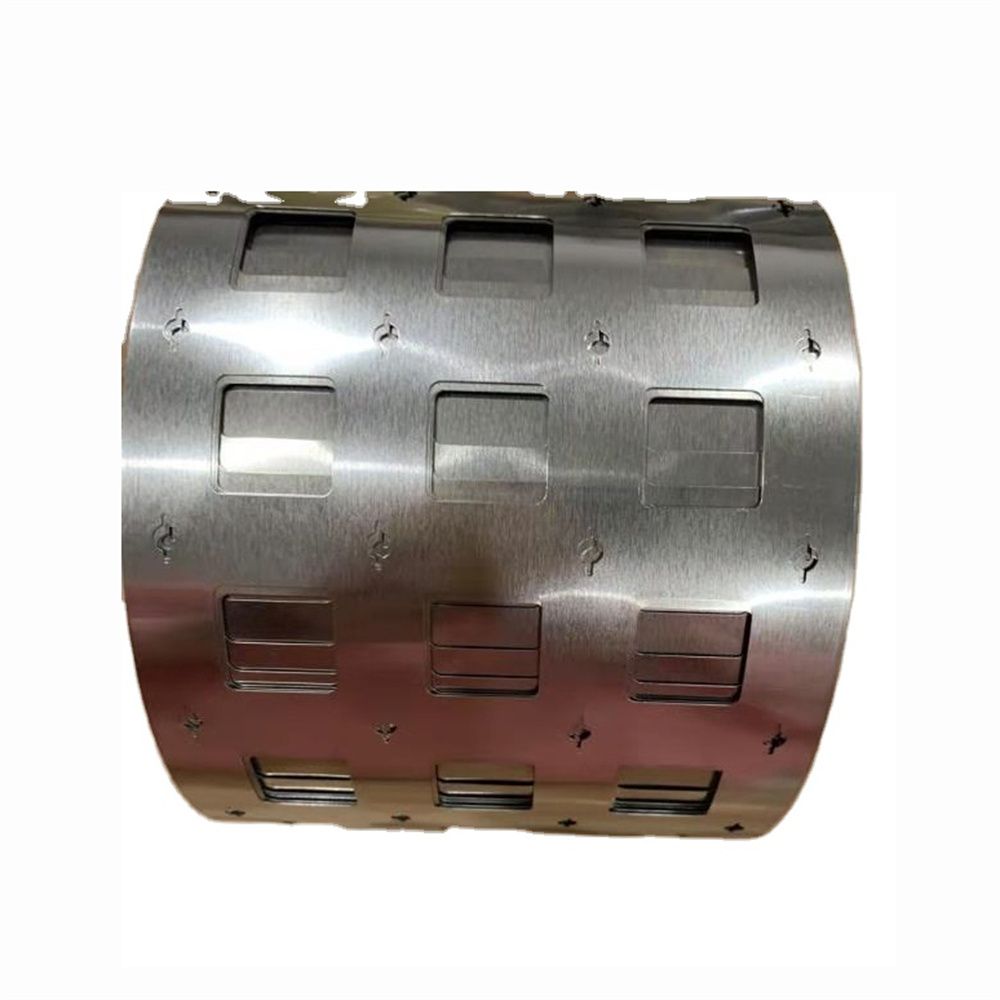

Our SPCC nickel-plated steel strip is independently cold-rolled, surface-activated, electroplated and inspected entirely in-house at DZX, developed as universal cost-effective conductive connecting material compatible with four mainstream cylindrical lithium cell models: 18650, 21700, 26650 and 32650. We adopt prime SPCC cold rolled soft steel as rigid substrate and deploy proprietary low-stress continuous nickel electroplating technology, forming a dense, pinhole-free nickel protective layer with tight metallurgical bonding to steel base. The uniform smooth surface delivers consistent spot welding performance without secondary polishing, and flexible dimensional customization perfectly matches cell spacing of small consumer packs to large high-capacity energy storage modules.

Cylindrical battery pack manufacturers have long struggled with conflicting material limitations during mass assembly. Bare SPCC steel strips carry low upfront procurement cost yet oxidize rapidly in humid battery workshops; iron oxide buildup sharply raises contact resistance, triggering local cell overheating, cold welding fractures and hidden thermal runaway risks inside sealed modules. Pure nickel strips feature stable conductivity and full anti-corrosion capacity, but raw material prices remain 3–6 times higher than nickel-plated SPCC steel, plus soft texture easily deforms under long-term vibration from e-bikes or outdoor storage equipment, loosening welding joints after hundreds of charge-discharge cycles. Low-grade nickel-plated steel from generic processors suffers uneven plating thickness, surface pits and weak coating adhesion; coating peels off during bending or stamping, while fixed single-size rolls cannot fit mixed production lines running 18650 alongside larger 26650/32650 cells, forcing multiple separate material inventories and raising warehouse costs. DZX SPCC nickel-plated steel strip resolves all these drawbacks simultaneously. The SPCC steel core provides superior tensile strength to resist vibration creep, uniform dense nickel coating blocks electrolyte vapor and air oxidation, and flexible customizable width/thickness specifications support unified material stock for all four common cylindrical cell formats to streamline inventory management.

We operate all production workflows self-contained without outsourcing any critical process: SPCC slab cold rolling, full degreasing surface activation, reel-to-reel continuous nickel plating, low-temperature stress relief annealing and burr-free precision slitting. Every finished coil undergoes comprehensive offline testing for nickel coating uniformity, tensile ductility, neutral salt fog resistance and spot welding consistency before warehousing. All raw materials fully comply with RoHS, REACH and IATF 16949 lithium battery industrial standards, eliminating safety hazards caused by unqualified connecting tabs. Real-time optical thickness and surface gloss detectors run on all plating lines to lock nickel coating thickness, SPCC hardness and dimensional tolerance within ultra-narrow fluctuation ranges, ensuring identical conductive and forming performance across every production batch.

This universal SPCC nickel-plated steel strip serves as mainstream multi-size compatible conductive raw material covering three booming downstream sectors driven by global portable energy storage and electric mobility upgrading.

First, electric two-wheeler & power tool cylindrical battery packs. 18650 and 21700 cells dominate scooter, balance bike and handheld drill battery modules; standardized and customized strip dimensions adapt automated spot welding assembly lines for medium-capacity power packs, cutting multi-material inventory costs.

Second, portable power & small outdoor energy storage systems. Power banks, solar portable generators and emergency UPS widely adopt 18650 and 21700 small cells, while high-capacity outdoor storage cabinets rely on large-format 26650 and 32650 cylindrical cells; our single material covers all four cell sizes for mixed production workshops.

Third, industrial equipment & robotics backup batteries. Monitoring sensors, agricultural machinery and lightweight robots deploy all four cylindrical cell specifications based on power demand; anti-corrosion nickel-plated SPCC steel maintains stable conductive performance under factory temperature swings and mild chemical vapor environments.

Global cylindrical lithium battery capacity expansion steadily lifts market demand for multi-format compatible connecting strips. Industry statistics show the annual compound growth rate of nickel-plated SPCC steel for cylindrical cell spot welding reaches 13.2% from 2026 to 2030. Surging pure nickel metal prices push most medium and large battery manufacturers to shift to economical steel-based composite conductive materials, while factories running mixed production of 18650, 21700, 26650 and 32650 packs prioritize universal multi-size compatible strips to reduce separate raw material stockpiles. Mid-to-high-volume battery assembly plants gradually replace fragmented low-grade nickel steel and costly pure nickel tape with DZX universal SPCC nickel-plated steel strips, simplifying procurement workflows, lowering welding scrap rates and cutting overall raw material expenditure.

We collect thousands of on-site assembly feedback from lithium battery manufacturers cooperating with generic material suppliers, summarizing five core quality and production defects brought by non-DZX nickel steel connecting strips:

1. Rapid surface rust of bare SPCC steel strips: Within 1–2 weeks of warehouse storage or humid battery workshop environments, red iron oxide fully covers strip surfaces, destroying spot welding fusion joints and triggering open-circuit overheating failures in finished battery packs.

2. Single-size limited compatibility of low-grade nickel-plated steel: Generic suppliers only produce fixed-width rolls matched for one cell model, forcing factories to purchase separate materials for 18650, 21700, 26650 and 32650 lines, raising inventory capital and warehouse management labor costs.

3. Uneven thin nickel plating on cheap processed steel strips: Discontinuous batch electroplating creates micro pinholes and ultra-thin coating areas; neutral salt fog testing fails within 24 hours, and corrosive media penetrates SPCC base to form hidden rust points inside sealed battery modules.

4. Nickel coating peeling during bending and high-speed stamping: Suppliers skipping pre-plating surface micro-activation produce strips with weak metallurgical bonding between nickel and SPCC steel substrate. Coating flakes off after repeated folding or sharp stamping edges, exposing bare steel that oxidizes quickly to spike contact resistance over battery cycle life.

5. Unstable batch dimensional consistency from small-scale processors: Manual random sampling inspection leads to wide fluctuations in strip width and plating thickness between batches. Mixed-format battery production lines must frequently adjust spot welding machine current parameters, pushing up testing labor costs and finished battery scrap rates.

All these costly production and long-term battery reliability risks can be fully eliminated by adopting DZX universal SPCC nickel-plated steel strips, supported by our full-process closed-loop surface quality monitoring system and flexible multi-size production capacity.

We break down key technical metrics directly determining cylindrical battery welding yield, long-cycle conductive stability and anti-rust service life for battery design and procurement engineers:

Nickel Coating Thickness: Adjustable range 0.5μm–5μm; 1μm standard for low-current 18650/21700 power bank and consumer packs, 3μm recommended for high-current 26650/32650 outdoor energy storage modules. Too thin coating fails salt fog anti-corrosion testing; overly thick nickel raises overall contact resistance and weakens stamping ductility.

Universal Dimensional Customization: Standard ready-stock thickness options 0.12/0.15/0.18/0.2mm, width range 5–30mm, adjustable to fit terminal spacing of 18650, 21700, 26650 and 32650 cylindrical cells without secondary cutting.

SPCC Substrate Tensile Strength & Elongation: Standard soft annealed SPCC base elongation ≥28%, tensile strength 370–440MPa for flexible cell interconnection; hard temper tensile strength 490–610MPa for rigid main busbar terminals of large-capacity 32650 packs.

Neutral Salt Spray Resistance: Standard DZX SPCC nickel-plated strips pass 72-hour salt fog testing without red rust; customized heavy anti-corrosion grades support 200-hour salt mist compliance for coastal outdoor battery equipment.

SPCC Base Purity: Prime low-carbon deep-drawing SPCC steel with ultra-low impurity content, minimizing spot welding electrode abrasion during high-speed mixed-format cylindrical cell assembly.

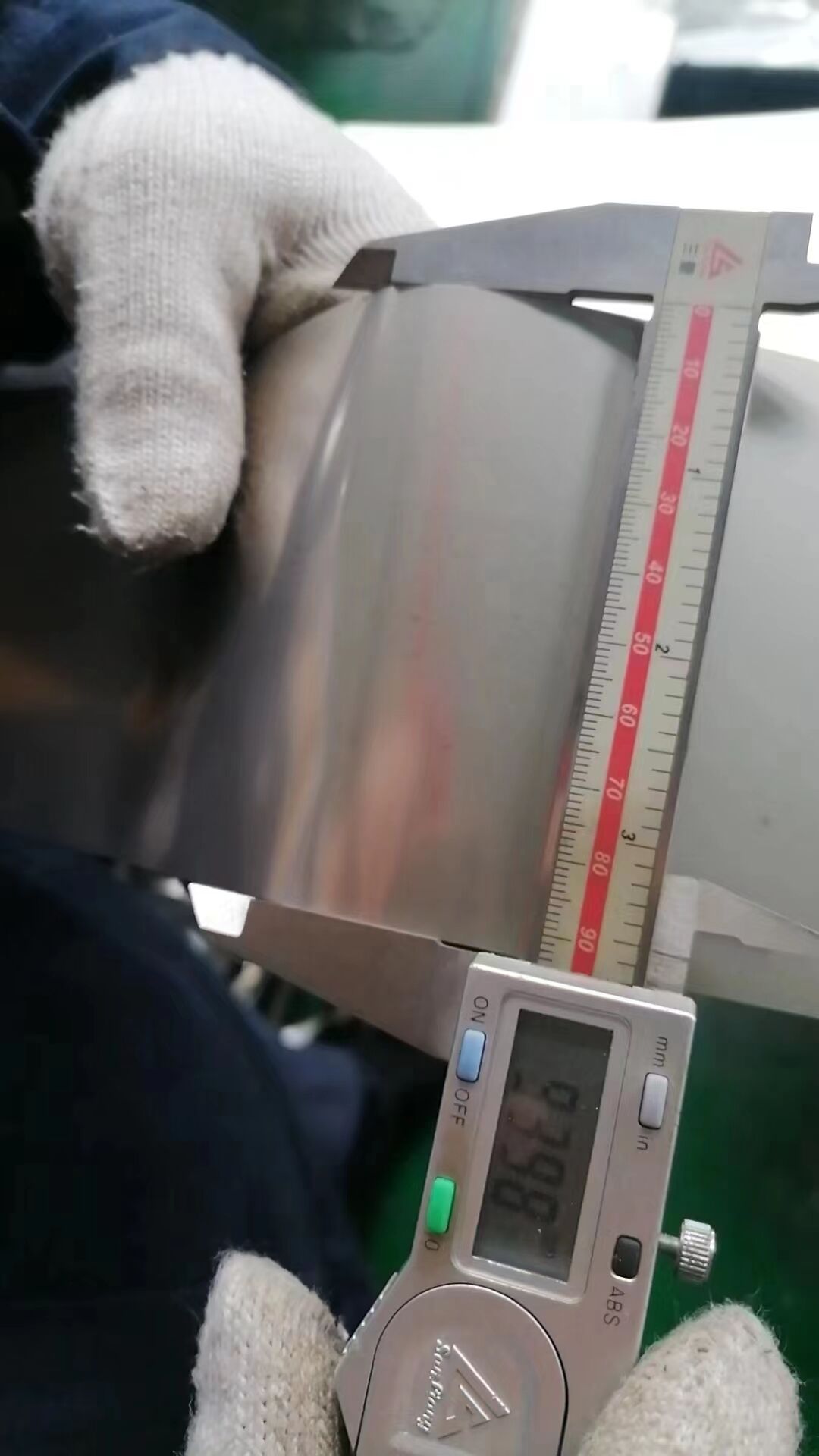

Dimensional Tolerance: Thickness tolerance ±0.002mm, width tolerance ±0.02mm, burr-free slit edges to prevent puncturing battery insulating diaphragms during automated assembly.

We contrast DZX full-industry-chain manufacturing strengths with ordinary third-party material factories, highlighting differentiated core advantages without naming competing brands:

1. Independent full-process production lines & universal multi-size plating R&D laboratory: We operate 7 reel-to-reel continuous nickel electroplating production lines and matched SPCC annealing furnaces, holding multiple composite nickel-plated SPCC steel strip patents for multi-format cylindrical battery applications. Most peer processors only manufacture fixed single-size rolls and lack flexible slitting equipment to cover 18650 through 32650 cell spacing demands. Our technical team optimizes coating density, SPCC ductility and strip width based on customer mixed-format battery pack drawings within three working days for personalized adjustments.

2. Complete full-range global certification portfolio: DZX owns IATF 16949, ISO9001, ISO14001, RoHS and REACH certifications, and provides full SGS nickel coating thickness, salt fog and welding performance test reports attached to every shipment batch. Small-scale processing factories rarely possess automotive-grade lithium battery certification required by power tool and e-bike battery manufacturers.

3. 24-hour real-time batch consistency monitoring & flexible fast delivery: Automatic optical gloss, thickness and hardness detectors run on all production lines for uninterrupted sampling performance testing. Generic factories rely on irregular manual spot checks, causing wide dimensional fluctuations between batches and long customized order lead times; our standard multi-size specifications support ready-stock shipment within 24 hours after order confirmation.

4. Flexible low-MOQ ready-stock & full customization dual service system: All standard SPCC nickel-plated steel dimensions support small-batch spot purchases with ultra-low trial order quantity, and we also support single-sided nickel plating, partial masking plating and special non-standard size customization for proprietary mixed-format cylindrical battery designs. Conventional suppliers set high minimum order limits and refuse small urgent mixed-size orders.

5. Professional multi-format cylindrical battery conductive material technical support: All DZX sales engineers hold lithium battery metal material engineering backgrounds, offering free material thickness and width selection suggestions at battery pack layout design stage to unify raw material inventory and improve automated spot welding yield. Most raw material vendors only complete delivery without downstream mixed-format battery assembly technical consulting.

6. Stable sufficient mass supply capacity: Our monthly production output reaches 170 tons, with large permanent inventory reserves of prime SPCC cold rolled steel and nickel raw materials to avoid delivery delays caused by metal price volatility and raw material supply shortages, a widespread pain point for capital-limited mixed-format battery component manufacturers.

7. 8 Core Complete FAQs
