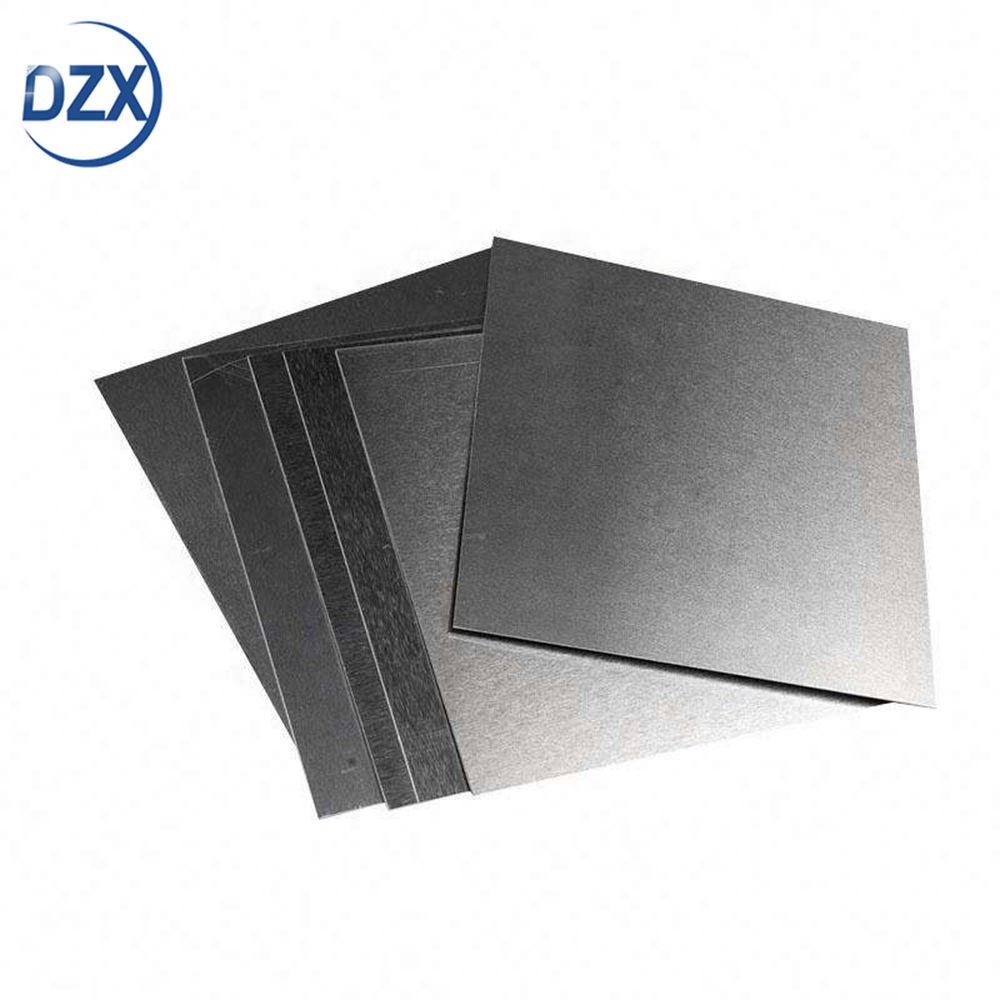

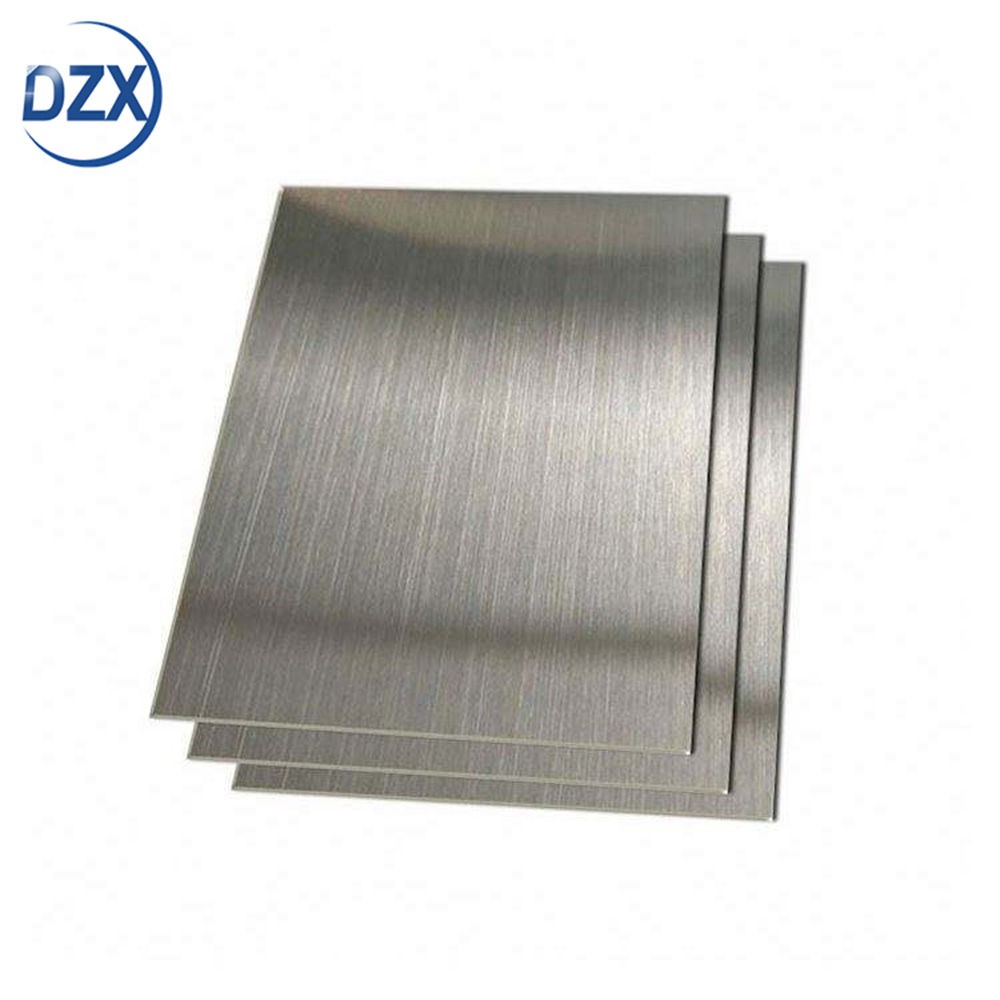

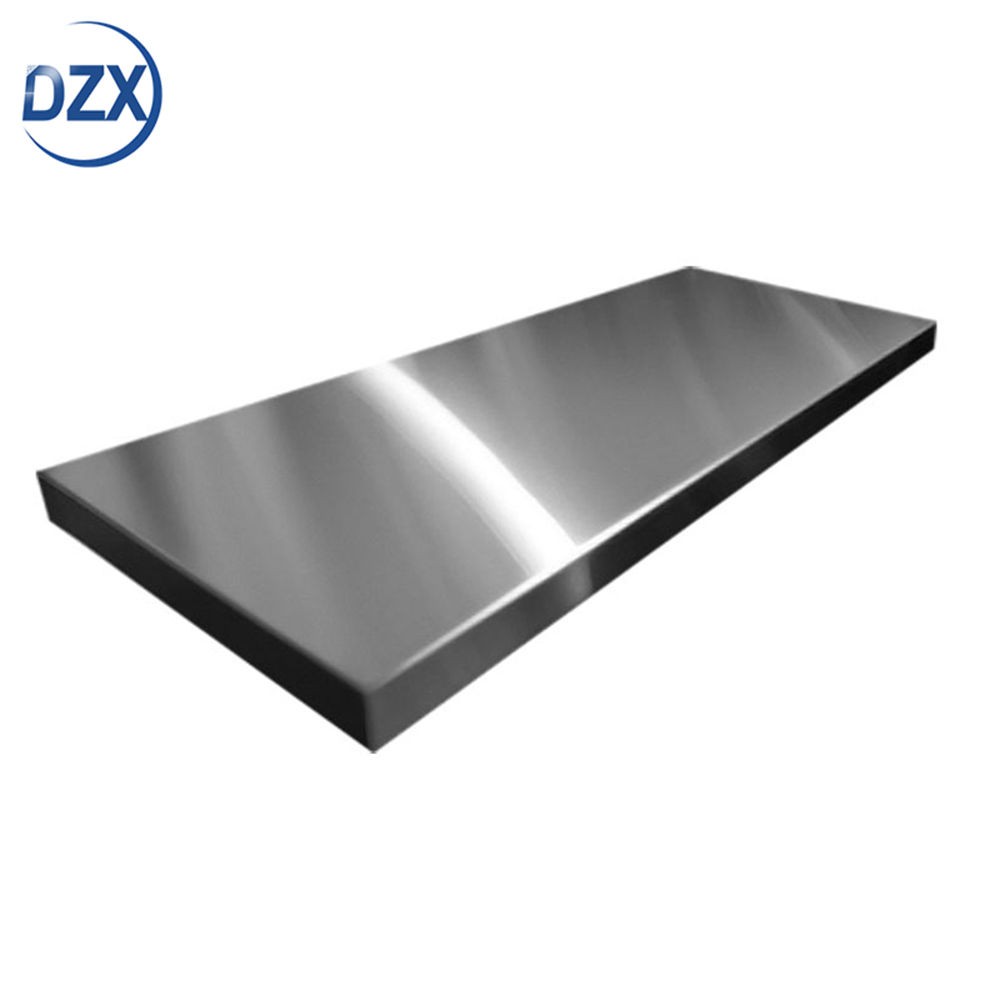

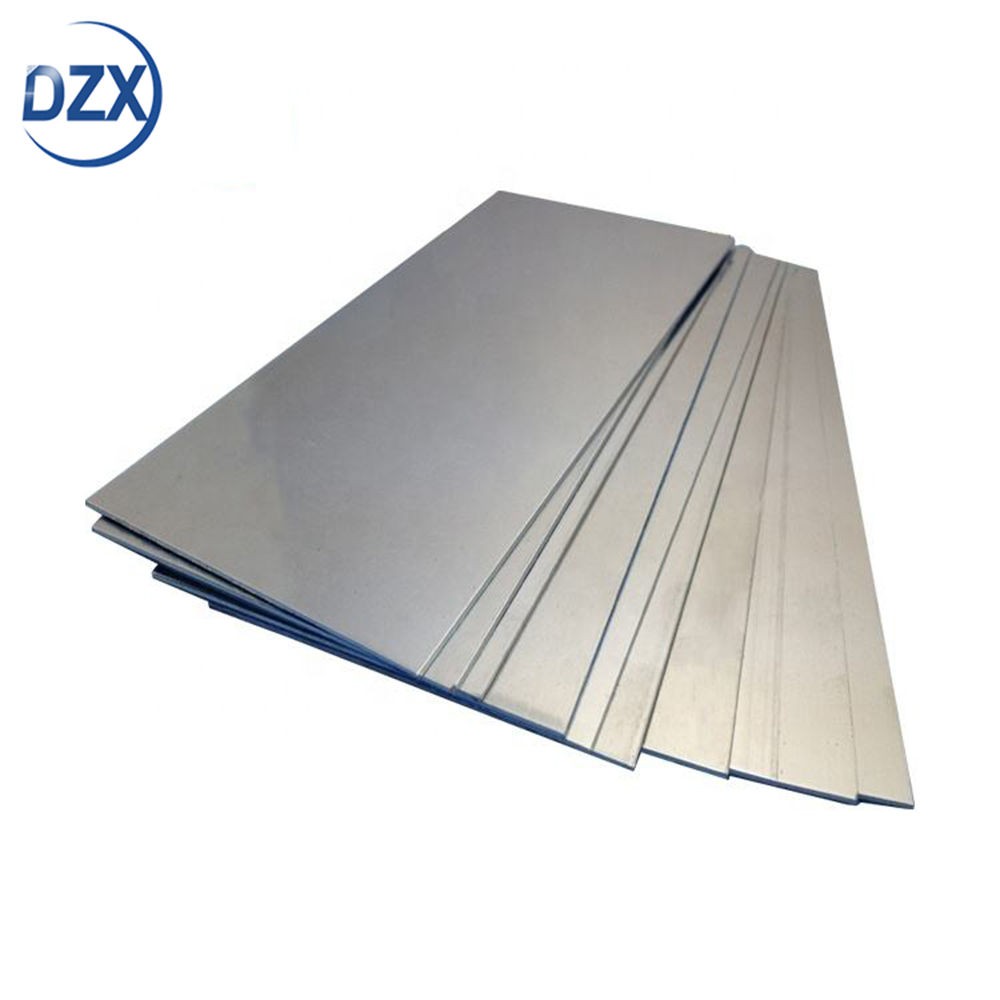

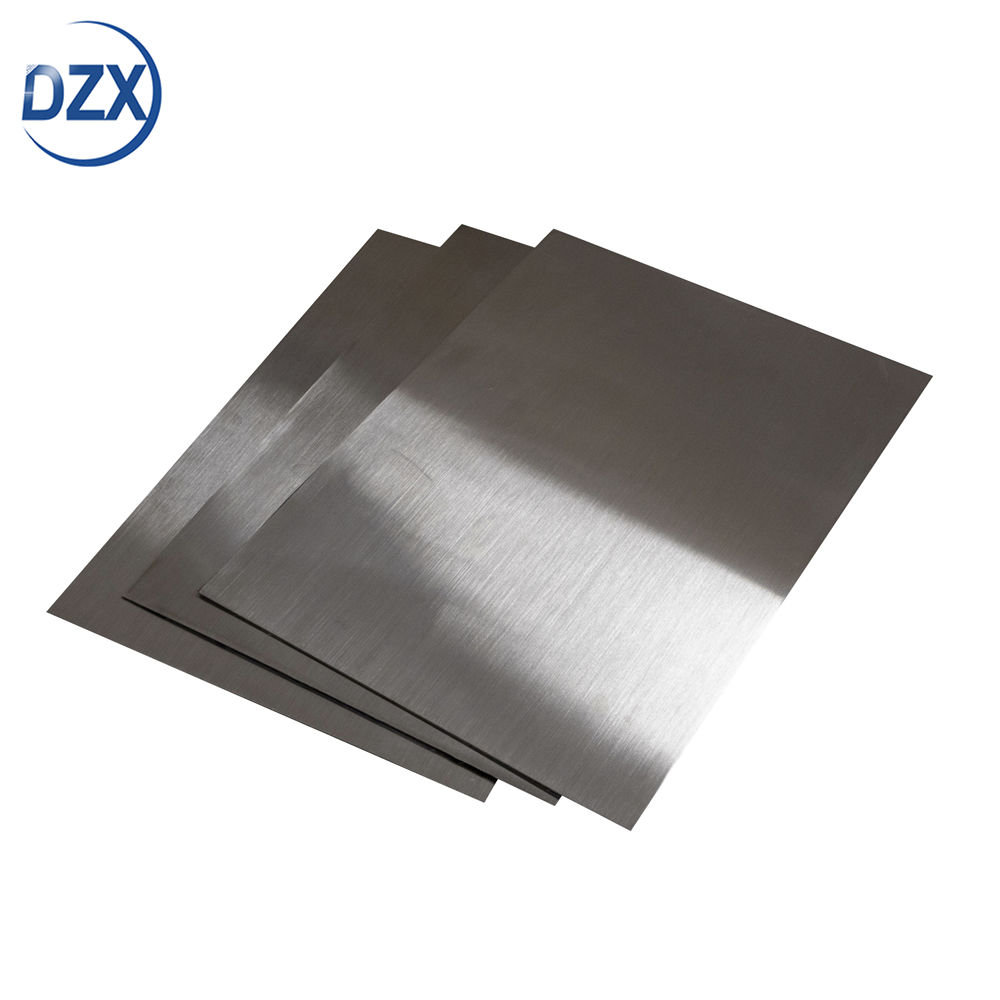

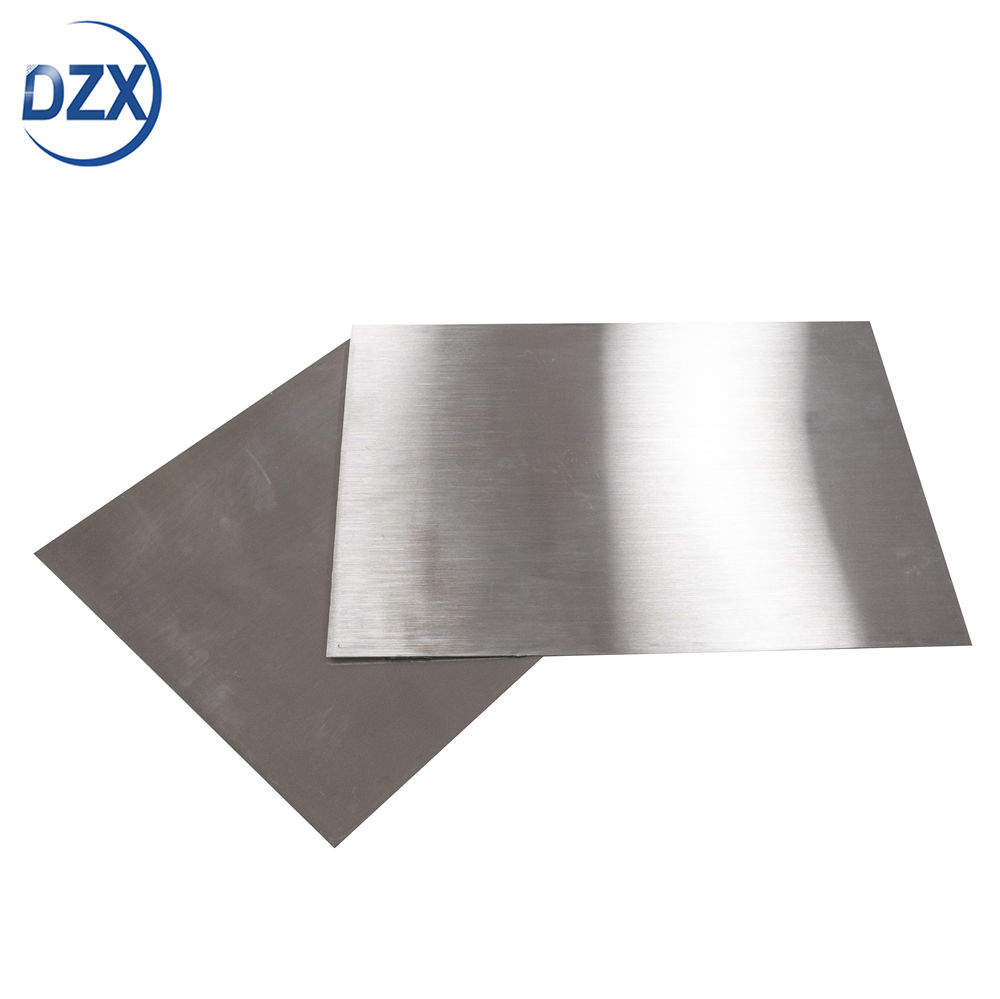

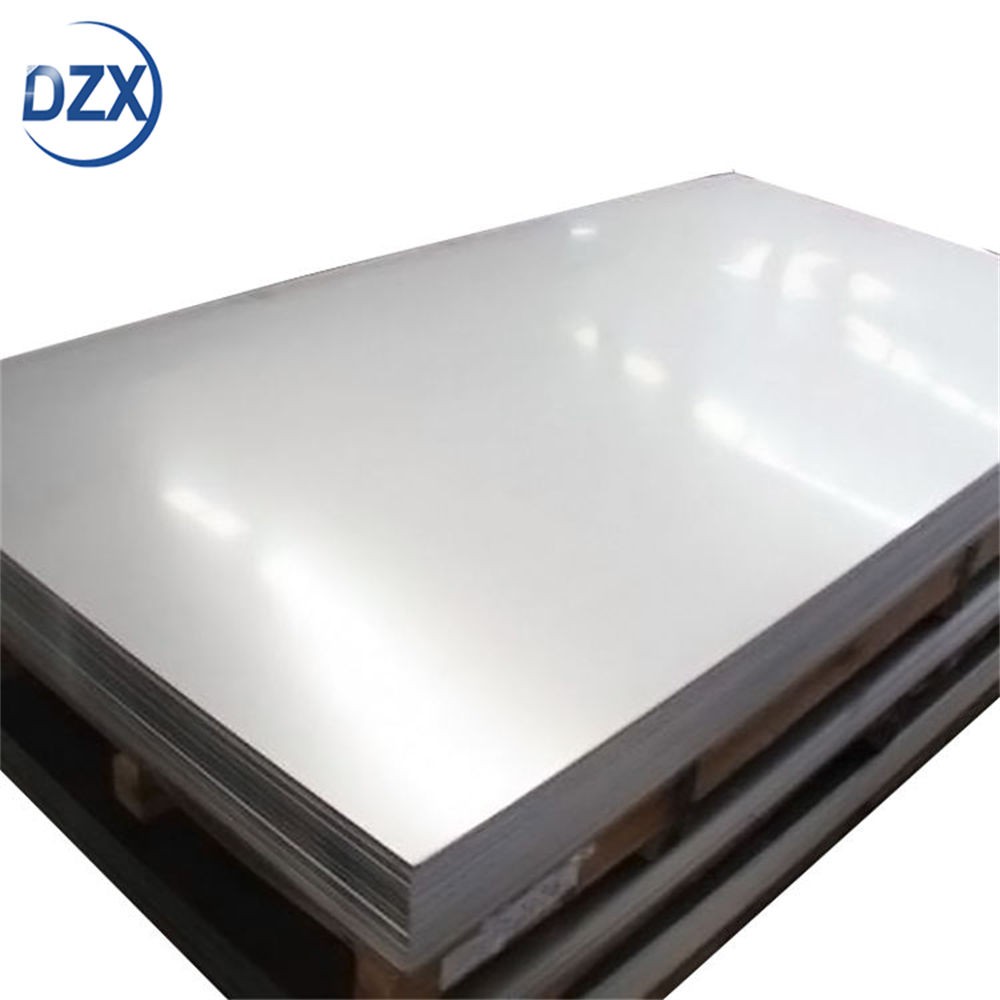

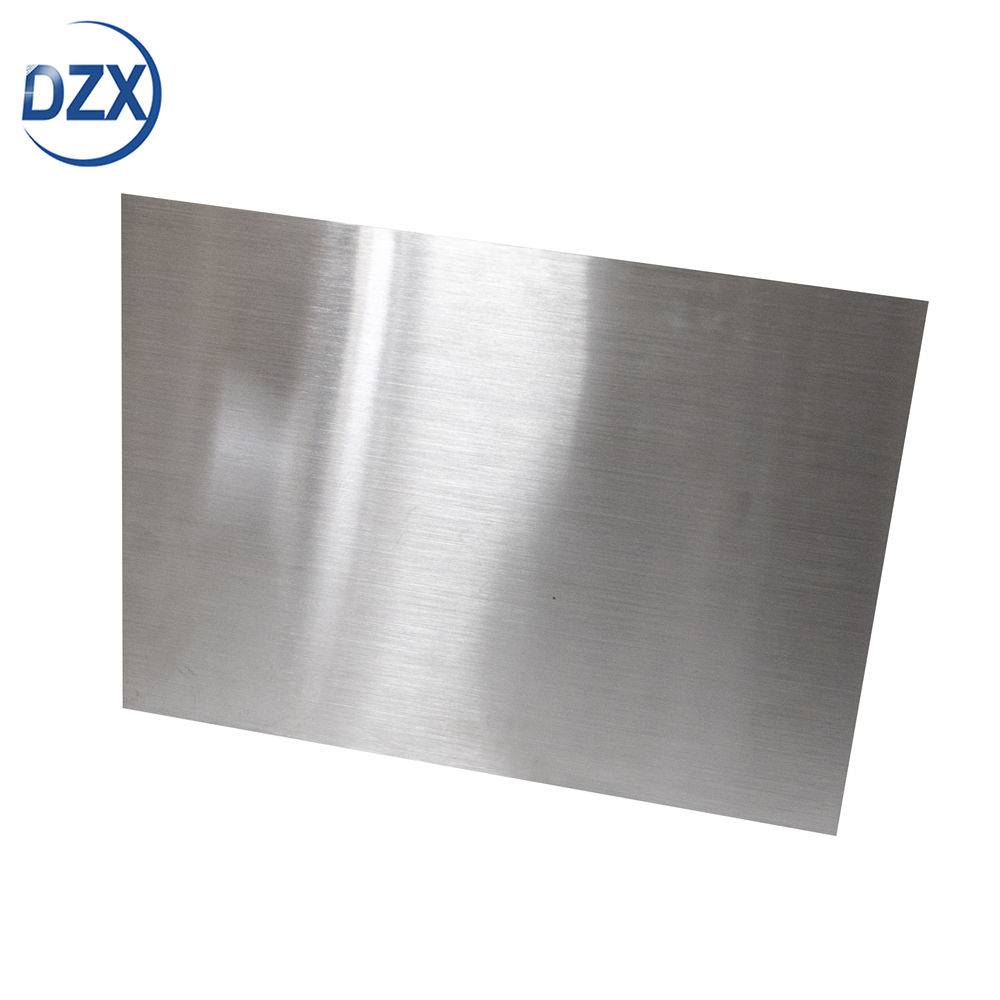

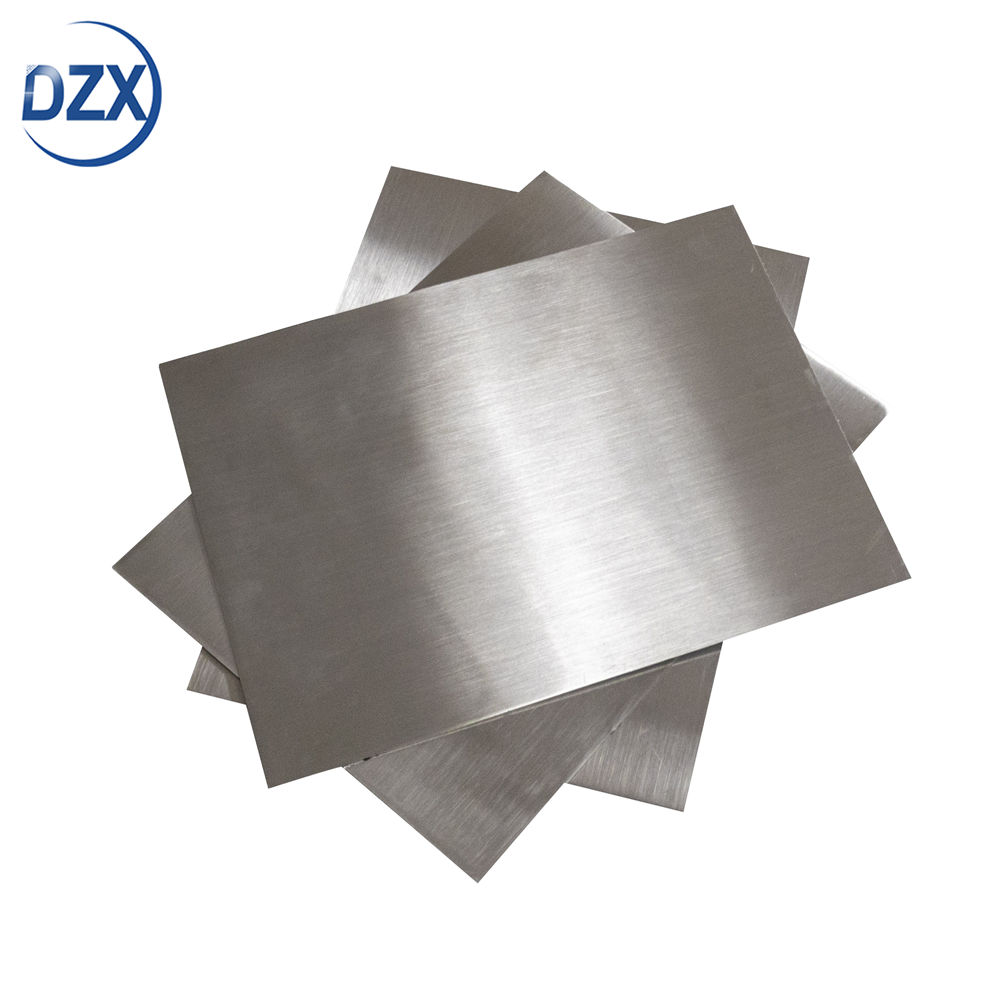

Product name: Inconel plate Grade: Nickel chrome Ni (Min): 58% Size: Customized Size Resistance (μΩ.m): 1.5 Ultimate Strength (≥ MPa): 830 Elongation (≥ %): 30% Melting Point:1435-1446°C
Products Description
Inconel sheets have a wide range of applications in the aerospace industry. As a high-performance alloy material, Inconel plate has become an indispensable material in the aerospace field due to its excellent high-temperature stability, corrosion resistance and excellent mechanical properties.
In the aviation field, Inconel sheets are widely used in high-temperature, high-strength and corrosion-resistant key components such as jet engine components, combustion chambers, turbine blades, and burner nozzles. Because jet engines operate at extremely high temperatures and need to withstand high-temperature airflow and high pressure, they require extremely high thermal stability and corrosion resistance of materials. Inconel plates can maintain their strength and stability in high-temperature environments and have excellent corrosion resistance. They can resist the erosion of combustion products, high-temperature airflow and corrosive media, ensuring reliable engine operation.
Parameter:
Item | 600 | 601 | 617 | 625 | 690 | 718 | X750 | 825 |
C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤1.0 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
Fe | 6-10 | rest | ≤3 | ≤5.0 | 7-11 | rest | 5-9 | ≥22 |
P | ≤0.015 | ≤0.02 | ≤0.015 | ≤0.015 | -- | -- | -- | -- |
S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
Cu | ≤0.5 | ≤1 | -- | -- | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
Ni | ≥72 | 58-63 | ≥44.5 | Bal | ≥58 | 50-55 | ≥70 | 38-46 |
Co | -- | -- | 10-15 | ≤1.0 | -- | ≤1 | ≤1 | -- |
Al | -- | 1-1.7 | 0.8-1.5 | ≤0.4 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
Ti | -- | -- | ≤0.6 | ≤0.4 | -- | -- | 2.25-2.75 | 0.6-1.2 |
Cr | 14-17 | 21-25 | 20-24 | 20-23 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
Nb+Ta | -- | -- | -- | 3.15-4.15 | -- | 4.75-5.5 | 0.7-1.2 | -- |
Mo | -- | -- | 8-10 | 8-10 | -- | 2.8-3.3 | -- | 2.5-3.5 |
B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
SPECIFICATIONS | |
Form | ASTM |
Rod, bar and wire | B 166 |
Plate, sheet and strip | B 168, B 906 |
Seamless pipe and tube | B 167, B 829 |
Welded pipe | B 517, B775 |
Fitting | B 366 |
Billet and bar for reforging | B 472 |
Forging | B 564 |
Shape | Size (mm) |
Wire | 0.5-7.50 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Customized |
Sheet/Plate | Customized |
For more details, pls directly contact us.
Feature:
High temperature resistance: Inconel sheets can maintain excellent mechanical properties and corrosion resistance at extremely high temperatures, and are suitable for high-temperature environments such as aerospace engines.
Corrosion resistance: Inconel sheets have excellent corrosion resistance and can resist the erosion of corrosive media such as acids, alkalis and chlorides, ensuring the long-term stability of parts.
High strength: Inconel sheets have excellent strength and toughness, can withstand high stress and impact loads, and are suitable for harsh working conditions in the aerospace industry.
Advantage:
Lightweight design: Inconel sheets have a lower density than traditional materials, enabling lightweight design of aerospace devices and improving overall performance and fuel efficiency.
High-temperature performance: Inconel sheets perform well in high-temperature environments, have good thermal stability and oxidation protection properties, and are suitable for high-temperature parts in aerospace engines.
Corrosion resistance: Inconel sheets have excellent corrosion resistance and can resist acidic, alkaline and high-temperature gas corrosion in the aerospace field, extending the service life of parts.
Application areas:
Engine parts: Inconel sheets are often used to manufacture high-temperature parts in aerospace engines, such as turbine blades, combustion chamber liners, and nozzle guide vanes.
Gas turbine: Inconel sheets are often used to manufacture gas turbines in aerospace to provide high-temperature, high-pressure power output.
Aerospace Structures: Inconel sheets can also be used to manufacture aerospace structural parts such as support structures, connectors and shields to provide strength and corrosion resistance.
Q&A:
Why does the aerospace industry choose Inconel sheets?
Because Inconel sheets have excellent high-temperature strength and corrosion resistance, they can adapt to the extreme working conditions of aerospace devices.
What is the specific role of Inconel sheets in aerospace engines?
Inconel sheets are often used to manufacture high-temperature parts in engines, such as turbine blades and combustion chamber liners, to ensure their reliability in high-temperature and corrosive environments.
What are the advantages of Inconel sheets over other materials?
Inconel sheets have the advantages of high-temperature strength, corrosion resistance and lightweight design to meet the stringent requirements of the aerospace industry.
