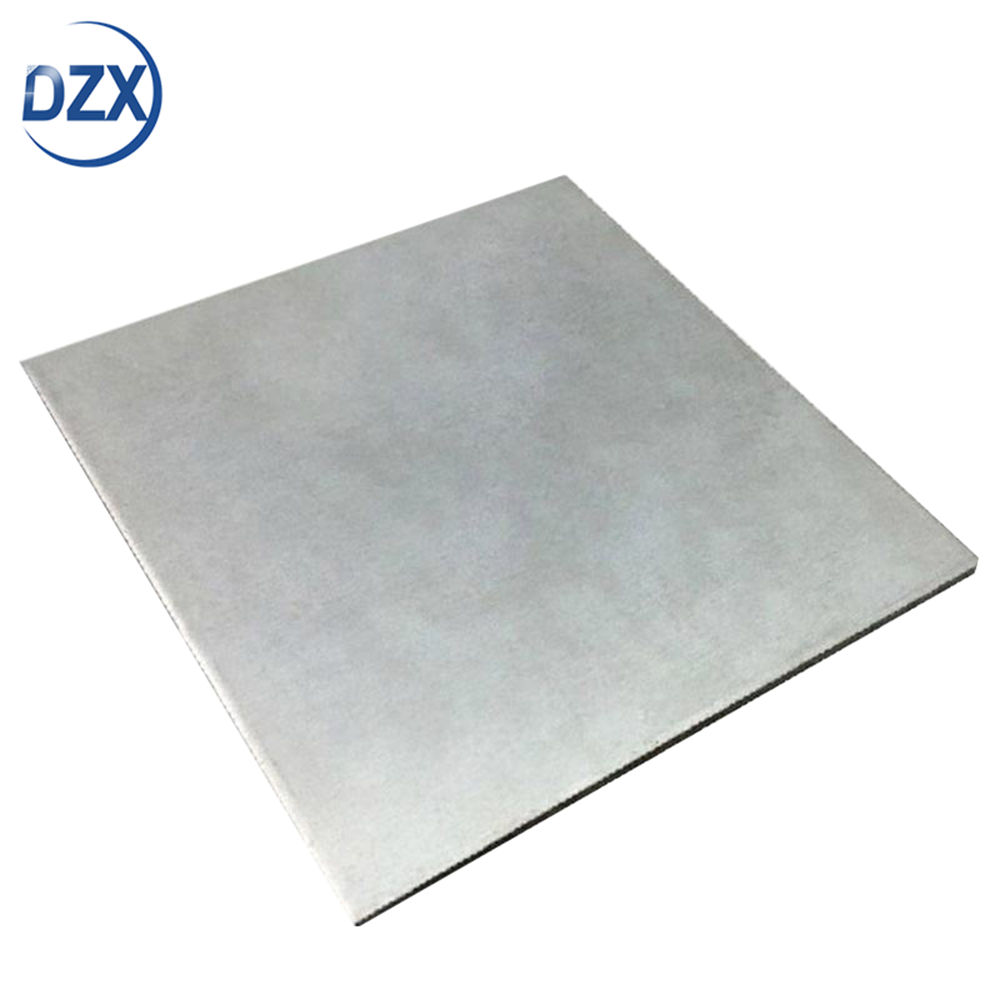

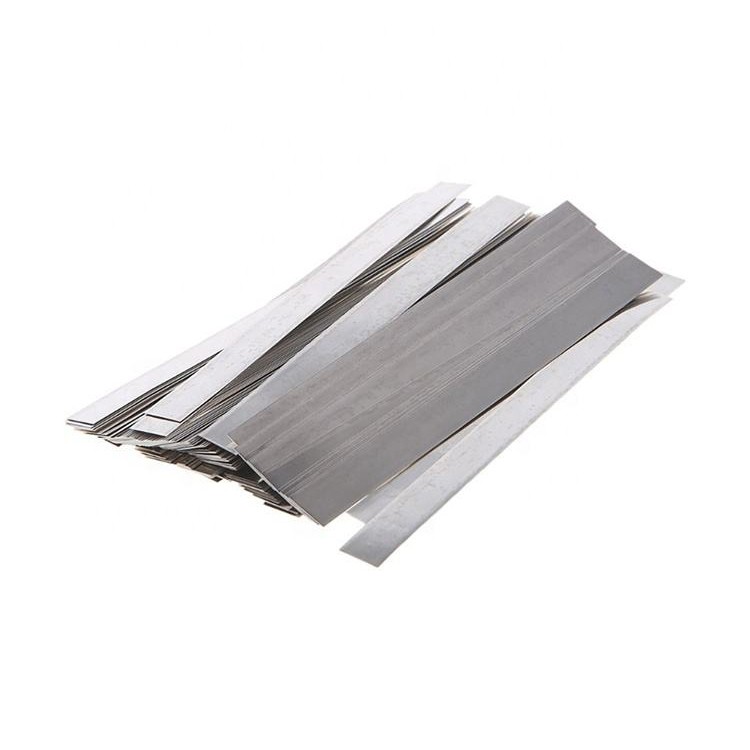

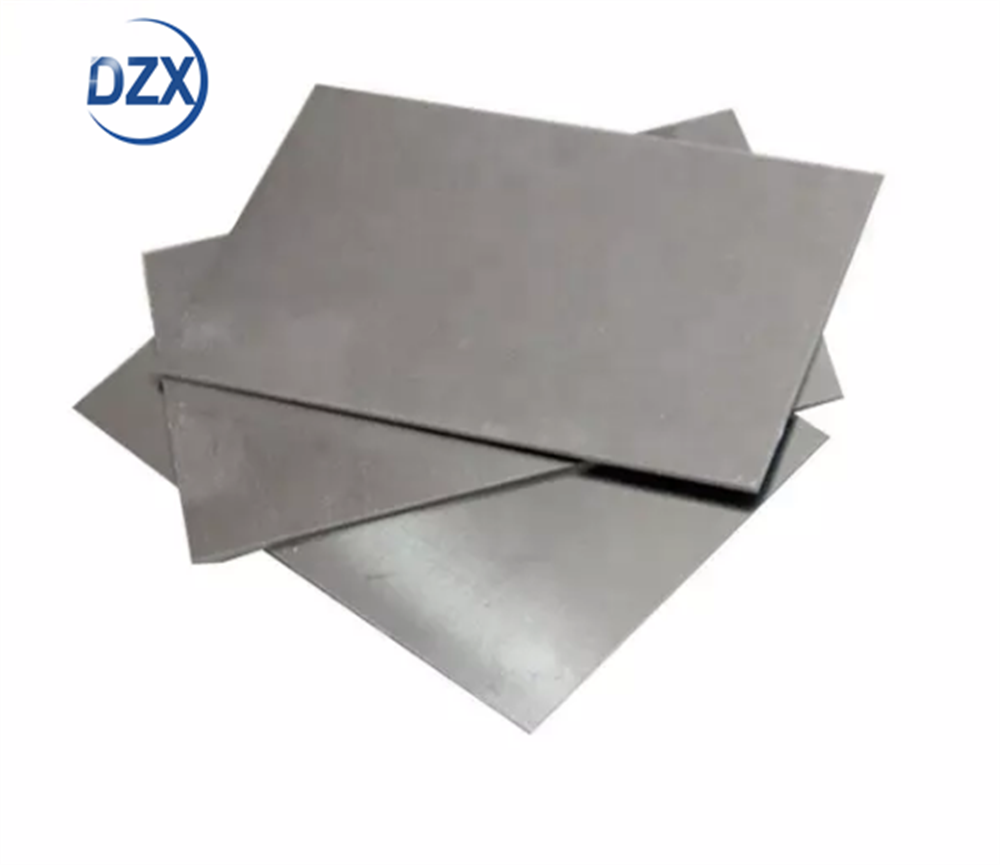

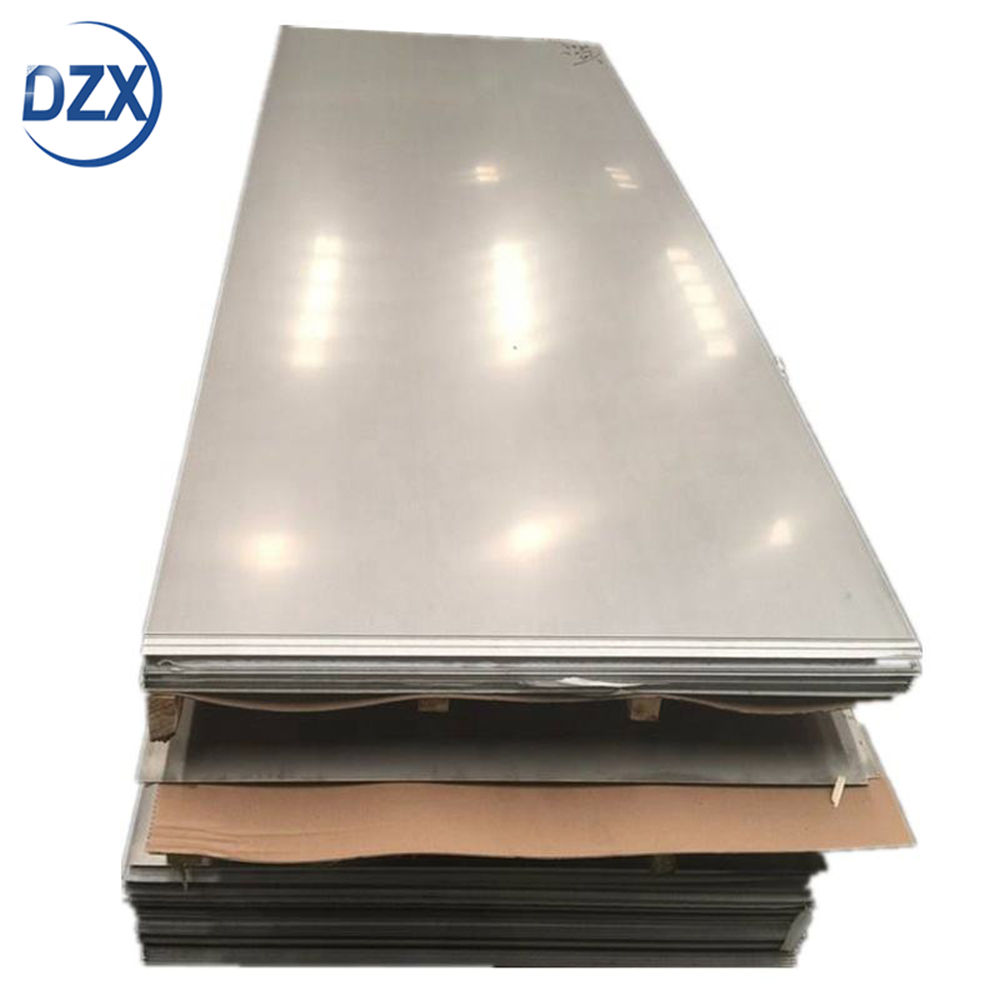

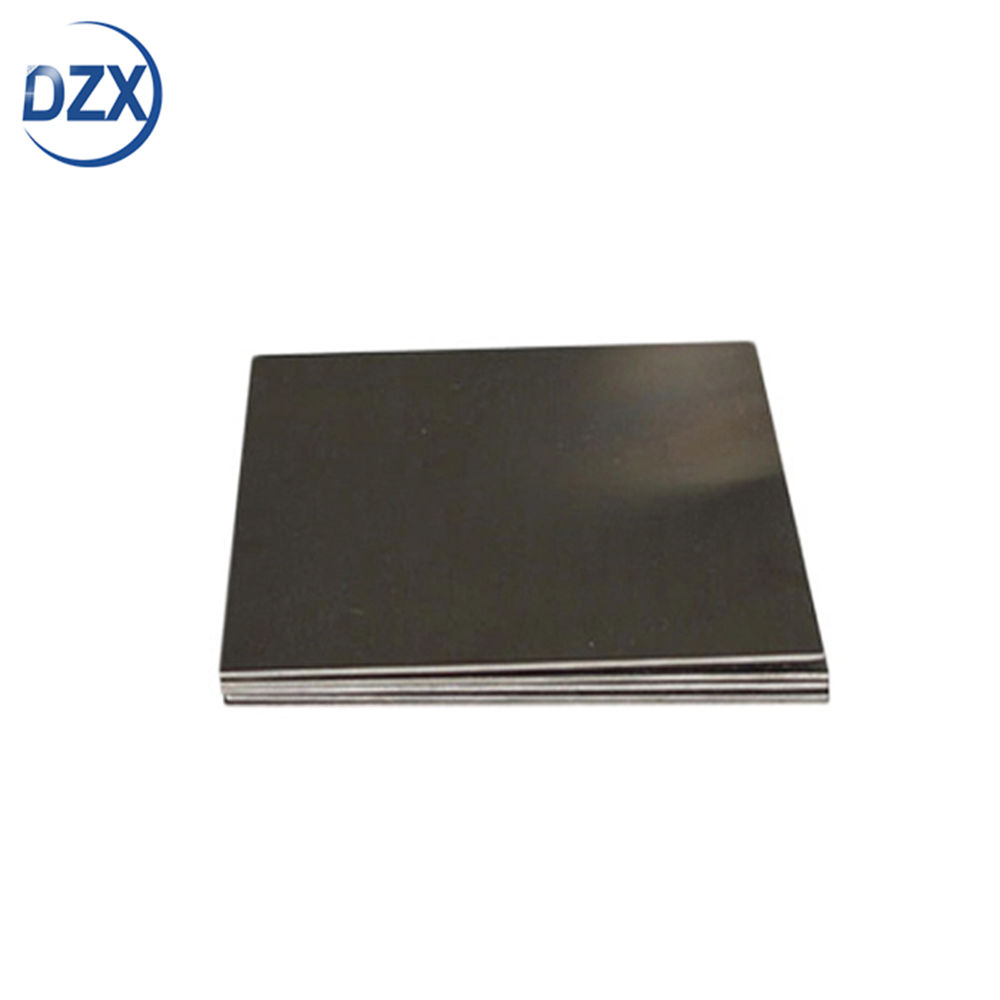

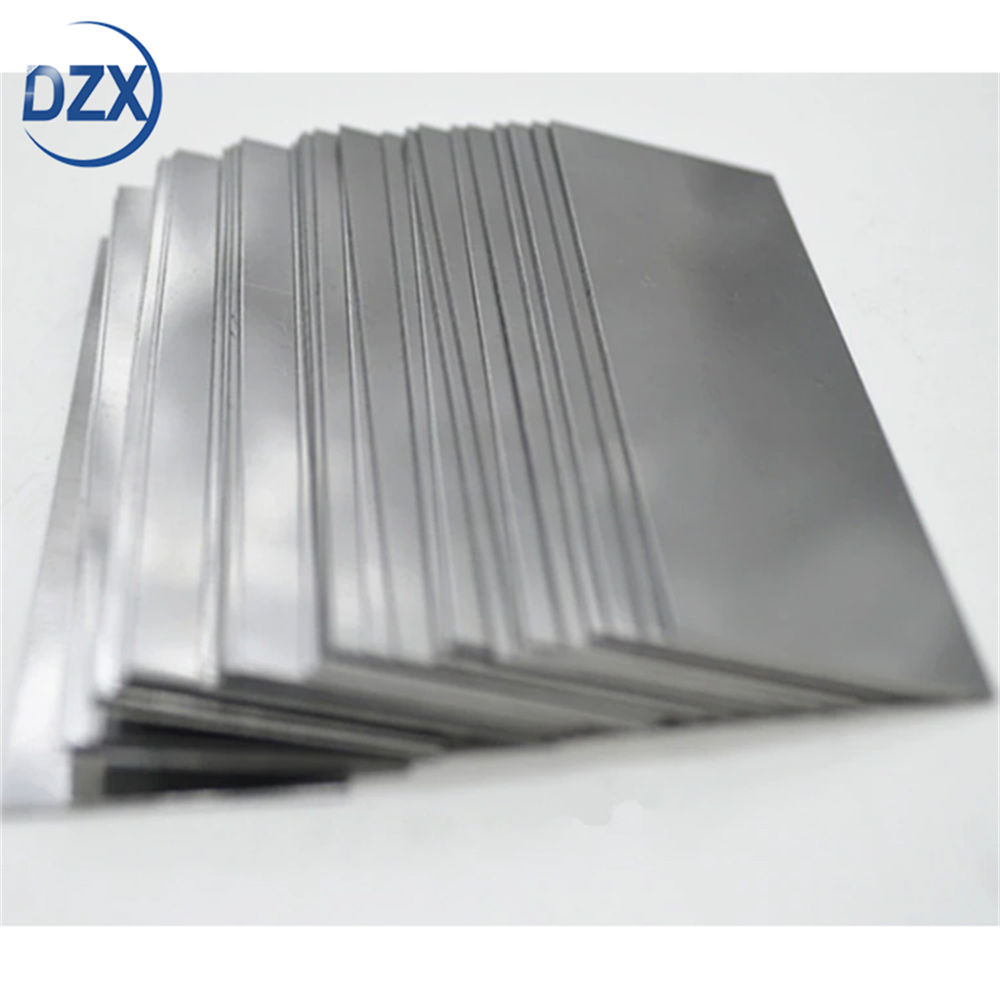

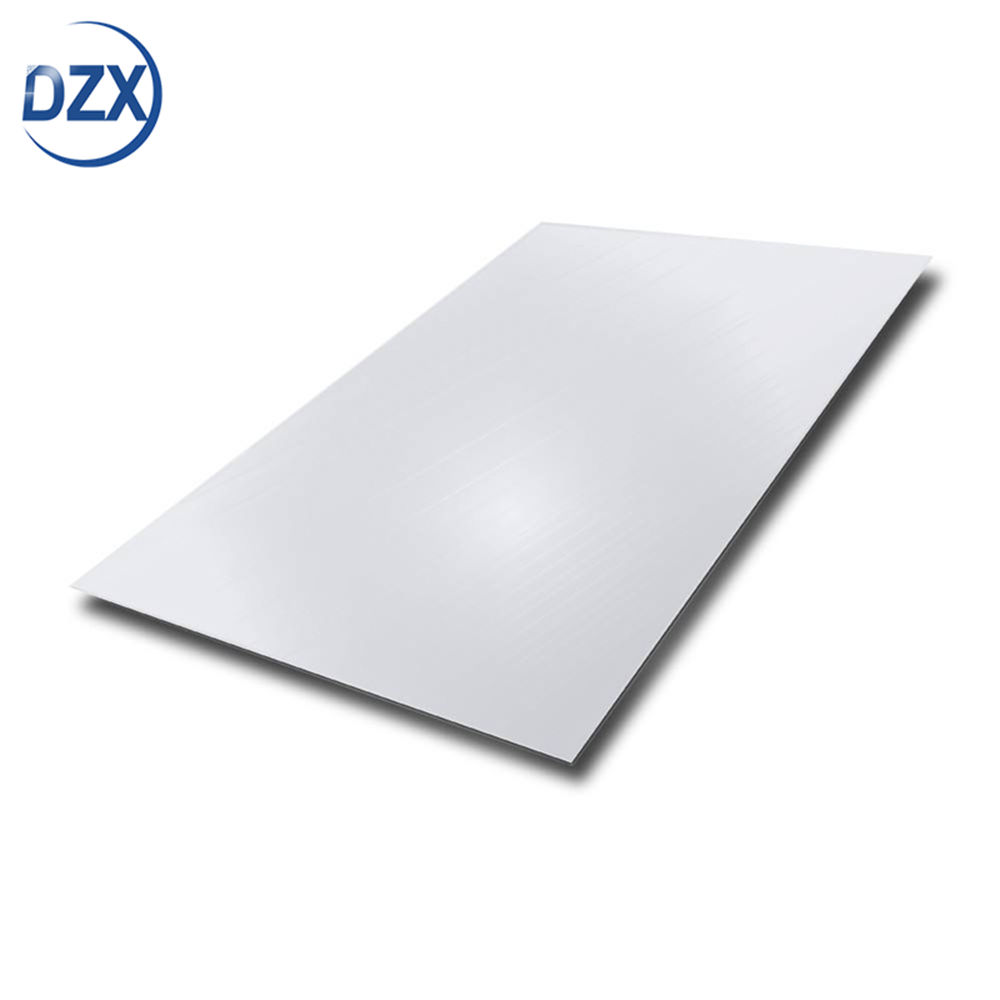

Product name: Inconel plate Grade: Nickel chrome
Ni (Min): 58%
Size: Customized Size
Resistance (μΩ.m): 1.5
Ultimate Strength (≥ MPa): 830
Elongation (≥ %): 30%
Melting Point:1435-1446°C
Products Description
Inconel plate is a high-temperature alloy plate known for its excellent heat resistance, corrosion resistance and high strength properties. It is mainly composed of elements such as nickel, chromium and iron, and also contains other alloying elements such as molybdenum, aluminum and titanium. Inconel boards perform well in high temperatures and extreme environments, resisting issues such as oxidation, corrosion, high temperature oxidation and stress corrosion cracking. Therefore, it is widely used in equipment and components that need to withstand extreme conditions in the aerospace, chemical, petroleum and nuclear industries. Inconel board has good mechanical properties, maintains strength and hardness at high temperatures, and has excellent oxidation and corrosion resistance. It also has good machinability and weldability, making Inconel board ideal for manufacturing components and equipment that operate in high-temperature environments.
Parameter
Item | 600 | 601 | 617 | 625 | 690 | 718 | X750 | 825 |
C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤1.0 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
Fe | 6-10 | rest | ≤3 | ≤5.0 | 7-11 | rest | 5-9 | ≥22 |
P | ≤0.015 | ≤0.02 | ≤0.015 | ≤0.015 | -- | -- | -- | -- |
S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
Cu | ≤0.5 | ≤1 | -- | -- | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
Ni | ≥72 | 58-63 | ≥44.5 | Bal | ≥58 | 50-55 | ≥70 | 38-46 |
Co | -- | -- | 10-15 | ≤1.0 | -- | ≤1 | ≤1 | -- |
Al | -- | 1-1.7 | 0.8-1.5 | ≤0.4 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
Ti | -- | -- | ≤0.6 | ≤0.4 | -- | -- | 2.25-2.75 | 0.6-1.2 |
Cr | 14-17 | 21-25 | 20-24 | 20-23 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
Nb+Ta | -- | -- | -- | 3.15-4.15 | -- | 4.75-5.5 | 0.7-1.2 | -- |
Mo | -- | -- | 8-10 | 8-10 | -- | 2.8-3.3 | -- | 2.5-3.5 |
B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
SPECIFICATIONS | |
Form | ASTM |
Rod, bar and wire | B 166 |
Plate, sheet and strip | B 168, B 906 |
Seamless pipe and tube | B 167, B 829 |
Welded pipe | B 517, B775 |
Fitting | B 366 |
Billet and bar for reforging | B 472 |
Forging | B 564 |
Shape | Size (mm) |
Wire | 0.5-7.50 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Customized |
Sheet/Plate | Customized |
For more details, pls directly contact us.
Characteristic:
High temperature stability: Inconel sheets can maintain stability and strength in high temperature environments and have excellent heat resistance.
Corrosion resistance: Inconel plates have excellent resistance to acidic and alkaline media, oxidation and corrosion, and are suitable for corrosive environments.
High strength: Inconel panels have high strength and durability, able to withstand high stresses and loads while maintaining shape and structural integrity.
Good mechanical properties: Inconel sheets have excellent mechanical properties, including good ductility, toughness and fatigue resistance.
Application areas:
Aerospace industry: Inconel sheets are widely used in the aerospace field for high-temperature, high-strength and corrosion-resistant components such as jet engine components, combustion chambers, turbine blades, and burner nozzles.
Chemical industry: Due to its excellent corrosion resistance, Inconel sheets are widely used in chemical equipment, reactors, evaporators, heat transferers and other corrosion-resistant equipment and pipelines.
Energy Industry: Inconel sheets are used in the energy sector for high-temperature and corrosion-resistant applications such as oil and gas extraction, power generation equipment, nuclear power equipment, and refineries.
Q&A:
Q: What are the advantages of Inconel plates compared with stainless steel plates?
A: Compared with stainless steel plates, Inconel plates have higher temperature stability and corrosion resistance, and are suitable for higher temperatures and harsher environments. In addition, Inconel sheets offer higher strength and fatigue resistance.
Q: How difficult is it to process Inconel sheets?
A: Inconel sheets are relatively difficult to process because of their high strength and heat resistance, which usually require the use of high-temperature alloy tools and advanced processing technology. For parts with complex shapes and high precision requirements, special machining processes may be required.
Q: What effect does the heat treatment process of Inconel sheets have on the performance?
A: The heat treatment process of Inconel sheet can significantly affect its performance. Common heat treatments include solution treatment, aging treatment, etc. Proper heat treatment can improve the strength, hardness and corrosion resistance of Inconel sheets and improve their overall performance.
