Product name: inconel pipe
Grade: Nickel Base Alloy
Ni (Min): 72%
Size: Customized
Density：8.1-8.4g/cm³
Melting Point：1350-1410℃
Tensile Strength：500-1200Mpa
Yield Strength：200-1000Mpa
Elongation：15-45%
Products Description：

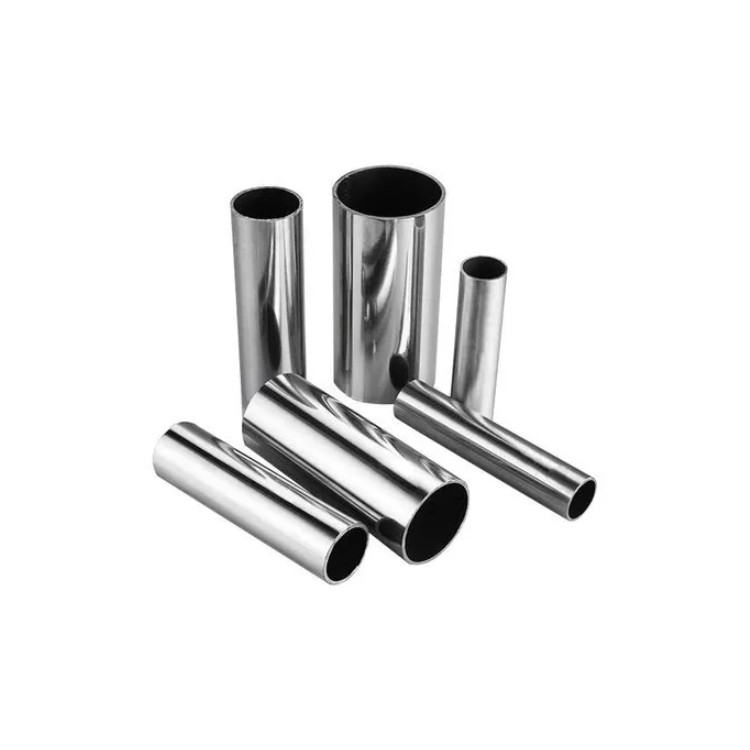

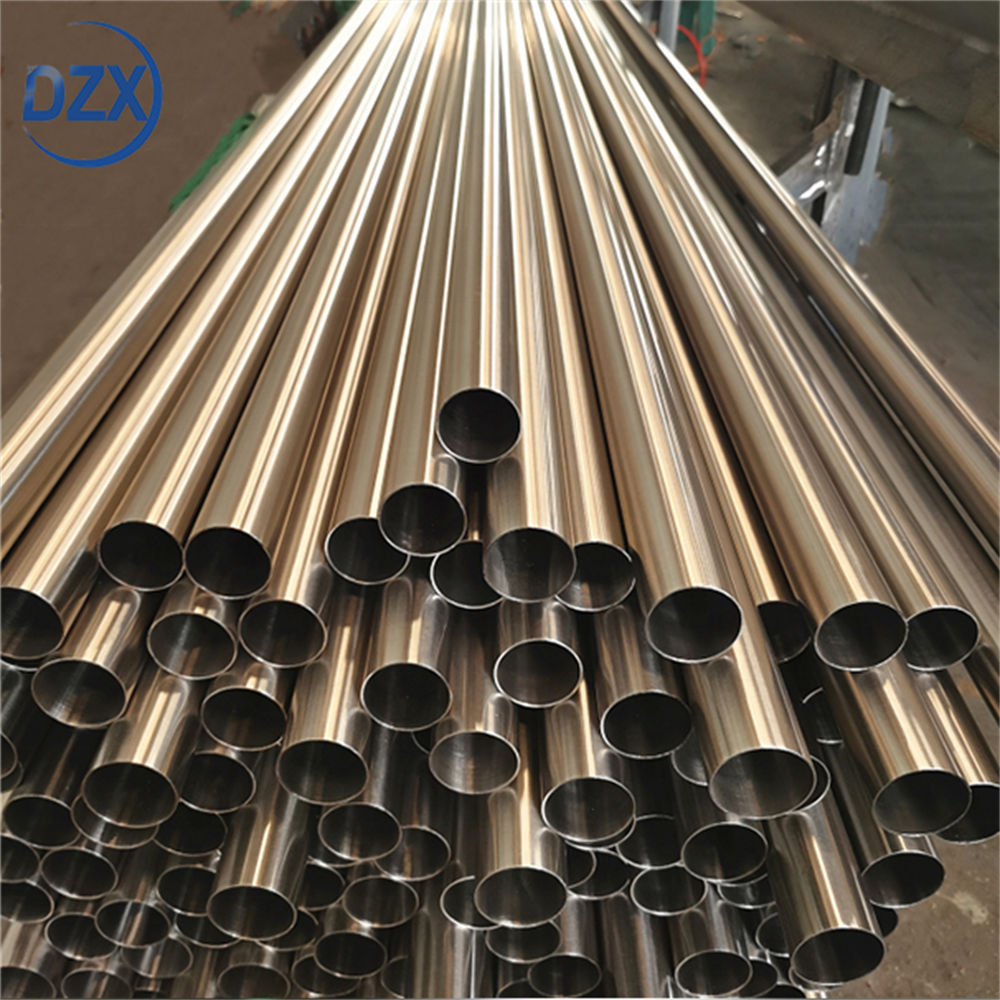

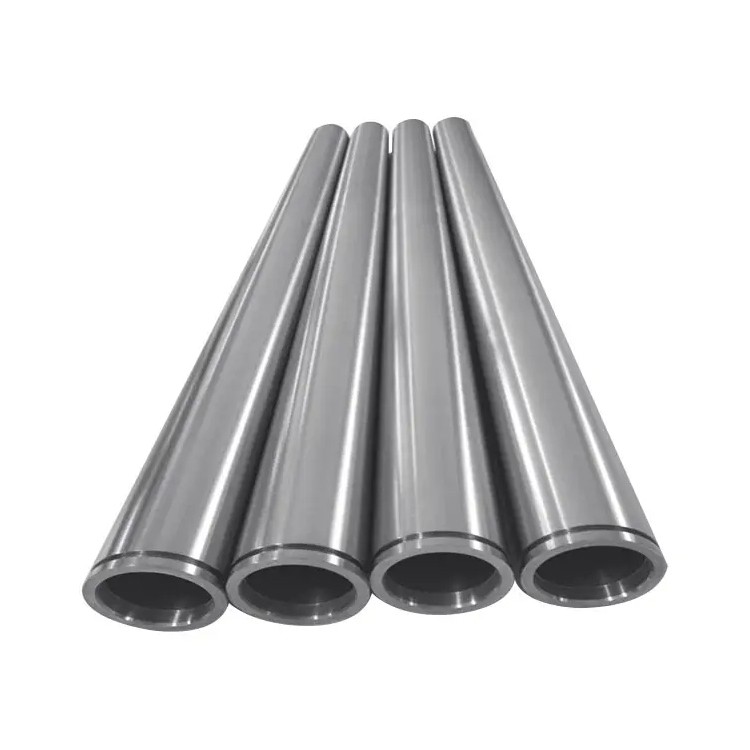

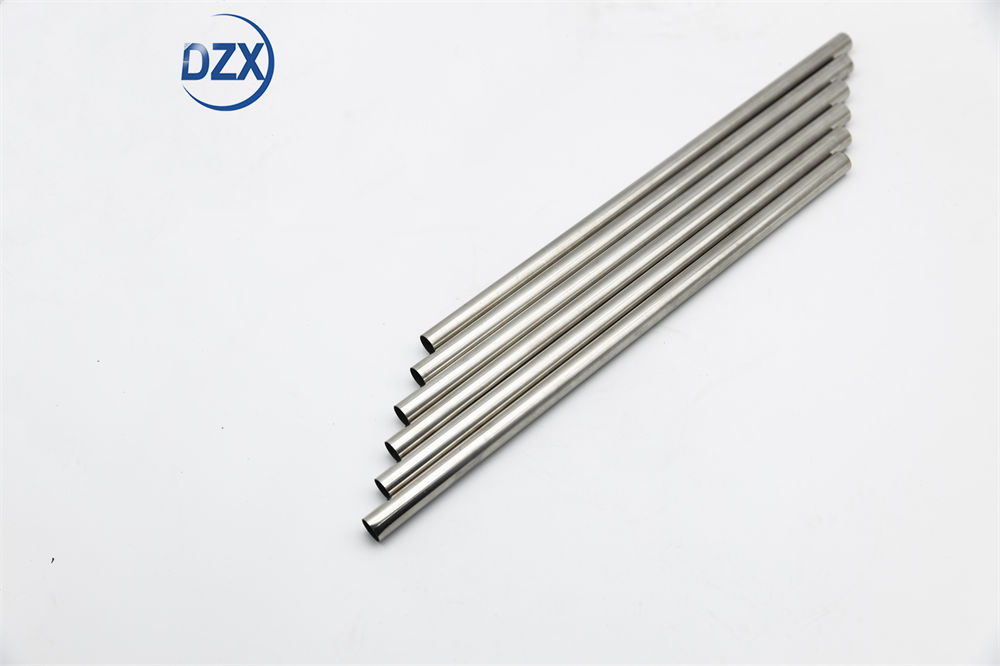

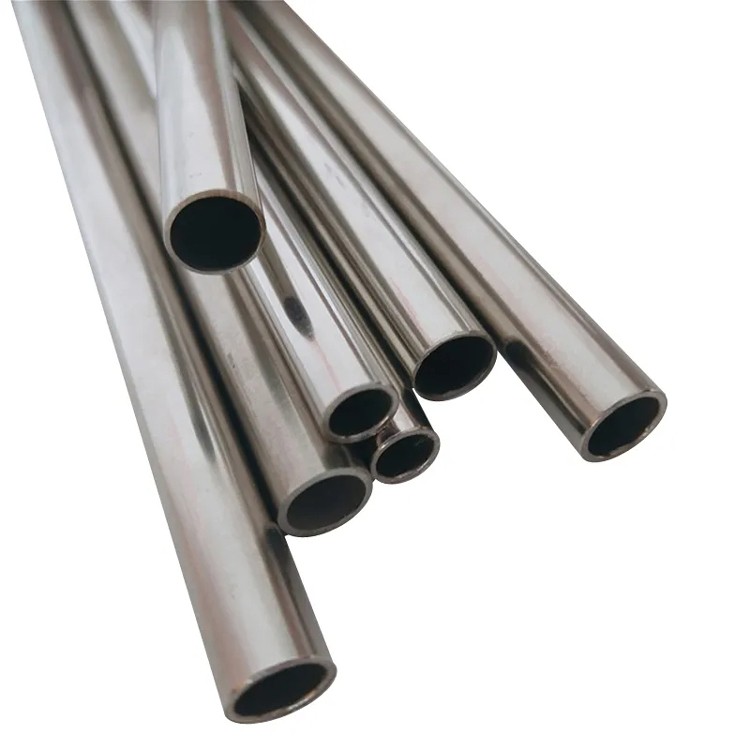

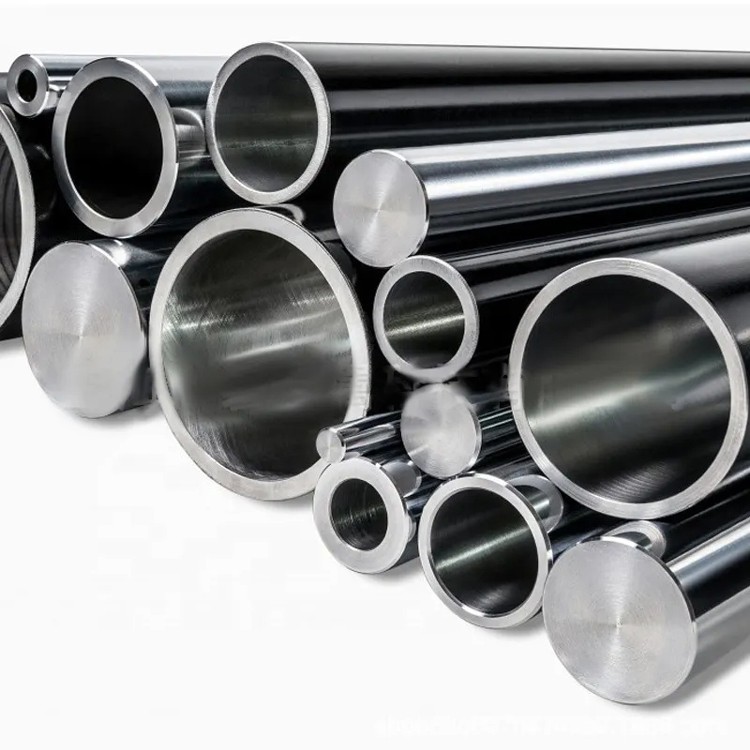

Inconel alloy 600/625/718/X750 seamless pipe
Inconel is a nickel-chromium alloy used for applications that require corrosion and high temperature resistance. This nickel alloy was designed for service temperatures from cryogenic to elevated temperatures in the range of 2000°F. It is non-magnetic, has excellent mechanical properties, and presents the desirable combination of high strength and good weldability under a wide range of temperatures.
The high nickel content in Inconel 600 enables it to retain considerable resistance under reducing conditions, makes it resistant to corrosion by a number of organic and inorganic compounds, gives it excellent resistance to chloride-ion stress-corrosion cracking and also provides excellent resistance to alkaline solutions. Typical applications of this nickel alloy include the chemical, pulp and paper, aerospace, nuclear engineering and heat treating industries.
Parameter：
Item | Inconel 600 | Inconel 601 | Inconel 617 | Inconel 625 | Inconel 690 | Inconel 718 | Inconel X750 | Inconel 825 |
C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
Ni | ≥72 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
Ti | -- | -- | ≤0.6 | ≤1.15 | -- | -- | 2.25-2.75 | 0.6-1.2 |
Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
Shape | Size (mm) |
Wire | 0.5-7.50 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Customized |
Sheet/Plate | Customized |
For more details, pls directly contact us.
Characteristic:
High temperature corrosion resistance: Inconel pipe has excellent high temperature corrosion resistance and can maintain stability under extreme temperatures and corrosive media.
Oxidation resistance: Inconel pipe is resistant to high-temperature oxidation and can maintain good surface condition in high-temperature environments.
Mechanical Properties: Inconel pipe has excellent mechanical properties, including high strength, good ductility and toughness.
Advantage:
High Temperature Applications: Inconel pipe performs well in high temperature environments and can withstand the corrosion and pressure of high temperature gas, steam and liquid media.
Corrosion resistance: Inconel pipe has good resistance to various corrosive media such as acids, alkalis, and salts, including sulfuric acid, chloride, and chlorine gas.
Resistance to stress corrosion cracking: Inconel pipe has high resistance to stress corrosion cracking and is suitable for environments subject to a combination of stress and corrosion.
Application areas:
Oil and gas industry: Inconel pipes are widely used in oil and gas extraction, refining and chemical processes for the transportation and processing of high temperature, high pressure and corrosive media.
Aerospace industry: Inconel tubes are used in high-temperature components such as aircraft engines, gas turbines and jet propulsion systems and are able to withstand extreme working conditions.
Chemical industry: Inconel pipes are widely used in chemical production equipment, reactors and evaporators to cope with the corrosion and high temperature requirements of acidic and alkaline media.
Nuclear industry: Inconel pipes perform critical structural and piping functions in nuclear reactors and can resist radiation and high temperature corrosion.
Food Processing Industry: Inconel pipe is used in food processing equipment, providing corrosion resistance and high temperature stability, suitable for food processing processes involving acidity and high temperature.
Q&A:
What material are Inconel tubes made of?
Inconel pipes are made of Inconel alloy, which is mainly composed of nickel, chromium and a small amount of iron, cobalt and other elements.
What are the main features of Inconel tubes?
Inconel pipe has high temperature corrosion resistance, oxidation resistance and excellent mechanical properties.
What temperature ranges are Inconel tubes suitable for?
Inconel pipe is suitable for high temperature environments, with common operating temperature ranges reaching over 600°C (1112°F).
