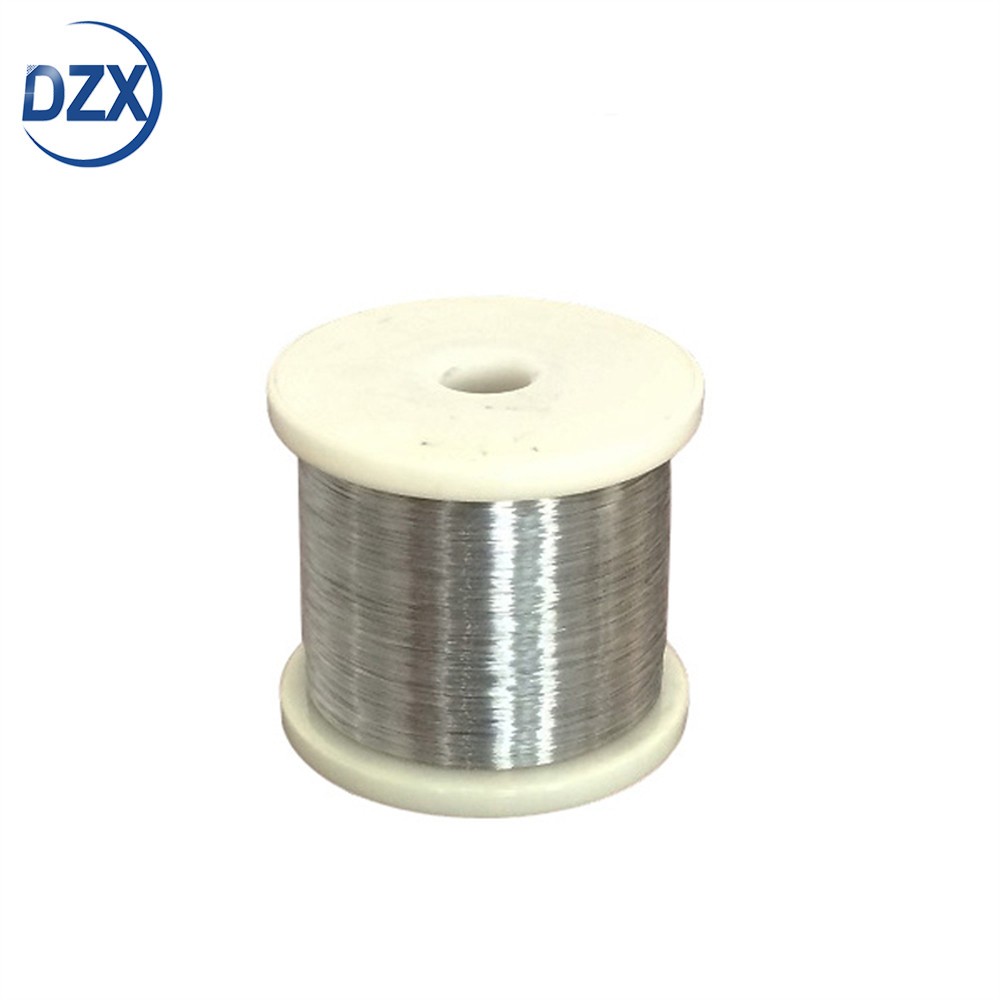

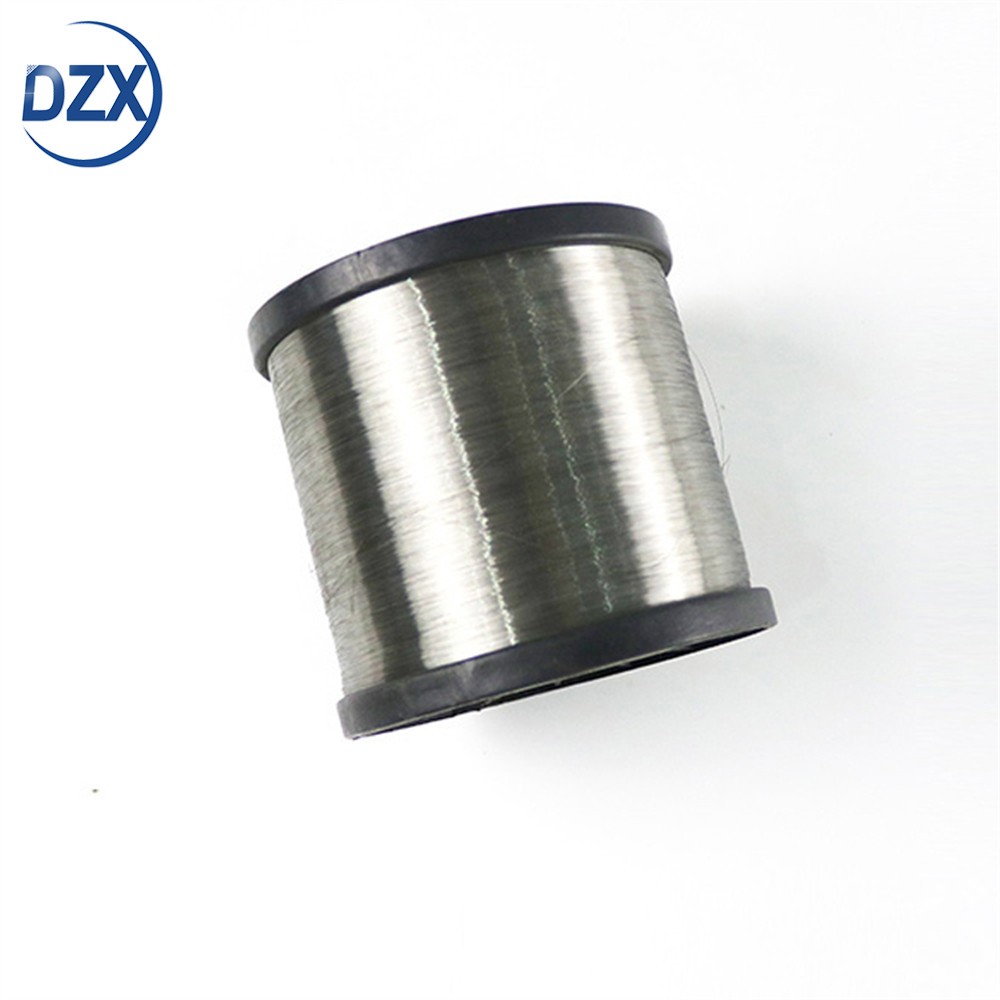

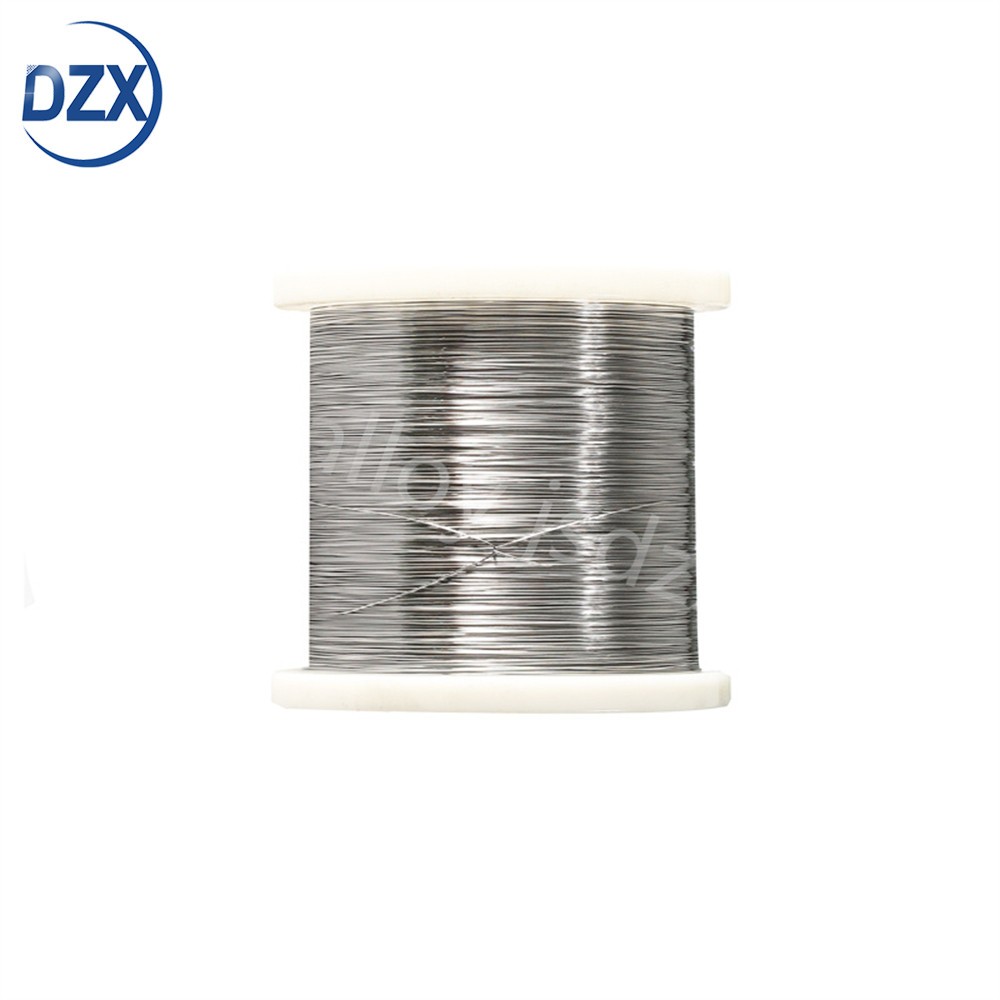

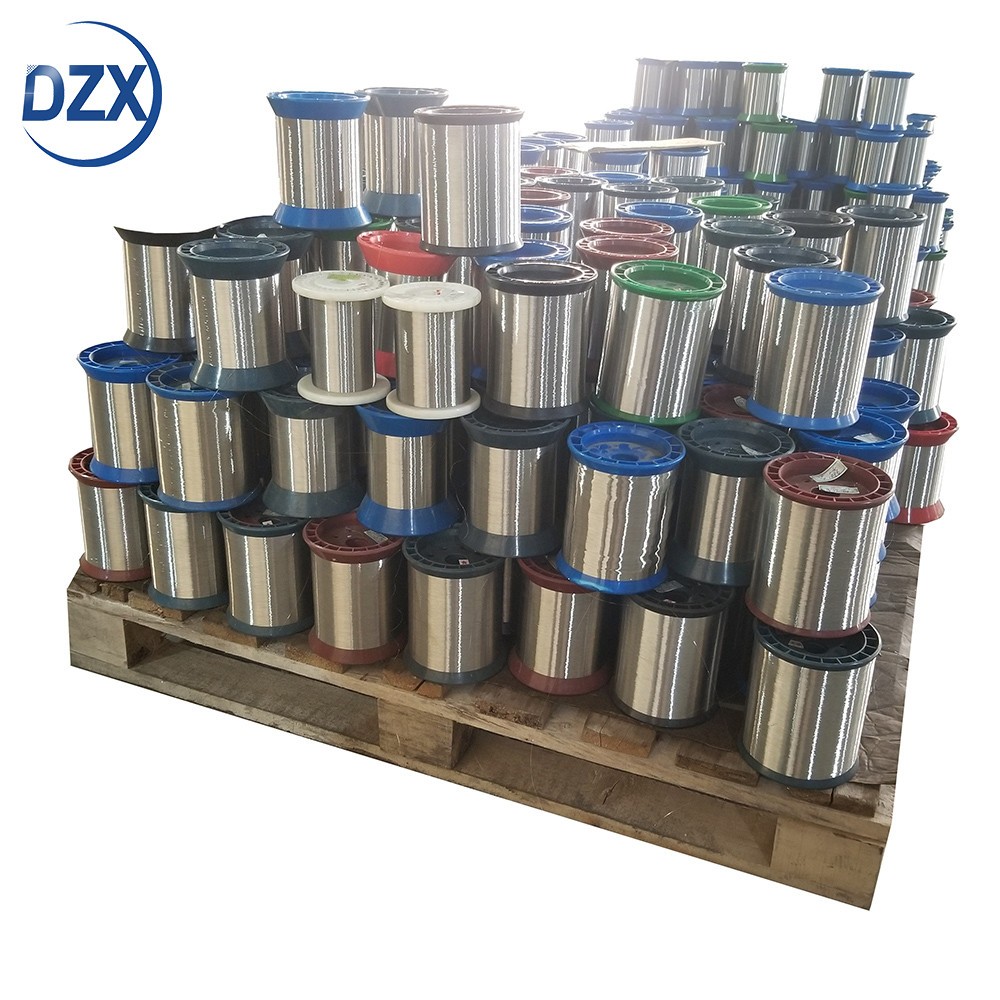

UNS N06625 2.4856 Inconel 600 601 625 Wire Nickel Alloy Wire
Product name: Inconel Wire Grade: Nickel Base Alloy Ni (Min): 72% Size: Customized Density：8.1-8.4g/cm³ Melting Point：1350-1410℃ Tensile Strength：500-1200Mpa Yield Strength：200-1000Mpa
0Product name: Inconel Wire Grade: Nickel Base Alloy Ni (Min): 72% Size: Customized Density：8.1-8.4g/cm³ Melting Point：1350-1410℃ Tensile Strength：500-1200Mpa Yield Strength：200-1000Mpa
Products Description
Inconel alloy wire is a high-performance material composed of elements such as nickel, chromium and iron. It has excellent corrosion resistance and high temperature stability, allowing it to maintain material strength and integrity in harsh environments and extreme temperatures. This makes Inconel alloy wire ideal for critical components and equipment in the chemical industry, aerospace, energy and other fields. At the same time, it also has excellent mechanical properties and processability, which can meet different engineering needs. In short, Inconel alloy wire plays an important role in various industrial fields with its many excellent properties.
Advantages:
Corrosion resistance: Inconel alloy wire performs well in various corrosive media. It can resist corrosion from acidic, alkaline, salt water and oxidizing media, including sulfuric acid, hydrochloric acid, chloride and seawater. Therefore, it is often used in components such as pipelines, valves and reactors in chemical, petrochemical and offshore engineering fields.
High temperature performance: Inconel alloy wire has excellent high temperature stability and oxidation resistance. It can maintain high strength and hardness in extreme high temperature environments while forming a dense oxide protective film to prevent further oxidation and corrosion. This makes it ideal for high temperature applications such as aerospace, aircraft engines and heat treatment equipment.
Mechanical properties: Inconel alloy wire has excellent mechanical properties, including high strength, good fatigue resistance and resistance to stress corrosion cracking. It can withstand complex mechanical loads and extreme working conditions, maintaining structural integrity and reliability. This makes it widely used in high-strength structures and components in aerospace, automotive, chemical and energy fields.
Processability: Inconel alloy wire has good processability and can be formed and processed by a variety of processing methods. It can be cold processed, hot processed and welded to meet the needs of different shapes and sizes. This makes it flexible and malleable during the manufacturing process.
Physical property
Density: ρ=8.28g/cm3
Melting temperature range: 1393-1427℃
Item | Inconel 600 | Inconel 601 | Inconel 617 | Inconel 625 | Inconel 690 | Inconel 718 | Inconel X750 | Inconel 825 |
C | ≤0.15 | ≤0.1 | 0.05-0.15 | ≤0.08 | ≤0.05 | ≤0.08 | ≤0.08 | ≤0.05 |
Mn | ≤1 | ≤1.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤1 | ≤1 |
Fe | 6-10 | rest | ≤3 | rest | 7-11 | rest | 5-9 | ≥22 |
P | ≤0.015 | ≤0.02 | ≤0.015 | -- | -- | -- | -- | -- |
S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.01 | ≤0.01 | ≤0.03 |
Si | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.35 | ≤0.5 | ≤0.5 |
Cu | ≤0.5 | ≤1 | -- | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.5 | 1.5-3 |
Ni | ≥72 | 58-63 | ≥44.5 | 50-55 | ≥58 | 50-55 | ≥70 | 38-46 |
Co | -- | -- | 10-15 | ≤10 | -- | ≤1 | ≤1 | -- |
Al | -- | 1-1.7 | 0.8-1.5 | ≤0.8 | -- | 0.2-0.8 | 0.4-1 | ≤0.2 |
Ti | -- | -- | ≤0.6 | ≤1.15 | -- | -- | 2.25-2.75 | 0.6-1.2 |
Cr | 14-17 | 21-25 | 20-24 | 17-21 | 27-31 | 17-21 | 14-17 | 19.5-23.5 |
Nb+Ta | -- | -- | -- | 4.75-5.5 | -- | 4.75-5.5 | 0.7-1.2 | -- |
Mo | -- | -- | 8-10 | 2.8-3.3 | -- | 2.8-3.3 | -- | 2.5-3.5 |
B | -- | -- | ≤0.006 | -- | -- | -- | -- | -- |
Shape | Size (mm) |
Wire | 0.5-7.50 |
Rod/Bar | 8.0-200 |
Strip | (0.5-2.5)*(5-180) |
Tube/Pipe | Customized |
Sheet/Plate | Customized |
For more details, pls directly contact us.
Application areas:
Aerospace Industry: Inconel alloy wire is widely used in the aerospace industry.
Energy Industry: Inconel alloy wire is widely used in the energy industry in oil and gas extraction, chemical processes, and power generation equipment.
Chemical Industry: Inconel alloy wire is used in the chemical industry to manufacture corrosion-resistant equipment and piping systems.
Nuclear industry: Inconel alloy wire is widely used in the nuclear industry due to its radiation resistance and corrosion resistance.
Automotive industry: Inconel alloy wire is used in the automotive industry to manufacture components such as exhaust systems and turbochargers.
Marine industry: Inconel alloy wire is widely used in marine environments.
