Our bright surface nickel coated steel strip is fully independently rolled, polished and electroplated at DZX, developed as cost-effective, high-strength conductive raw material for lithium battery cell interconnection, pack busbars and protective BMS terminal. We adopt low-carbon cold-rolled steel as rigid substrate and deploy our proprietary mirror-bright continuous nickel plating technology, forming a pore-free, mirror-smooth nickel protective film tightly metallurgically bonded to steel base. The ultra-bright uniform surface eliminates surface burrs, oxidation spots and uneven plating, delivering stable spot welding performance without extra polishing preprocessing for battery manufacturers.

A long-standing production bottleneck for lithium battery factories is balancing raw material cost, mechanical rigidity, anti-rust performance and welding stability. Bare steel strips carry low procurement cost yet oxidize rapidly in humid battery workshops, generating high-resistance iron oxide layers that trigger battery overheating and cold welding failure. Pure nickel strips own outstanding conductivity and anti-corrosion capacity but come with extremely high raw material prices and soft texture prone to deformation under vibration inside battery packs. Ordinary matte nickel-plated steel strips feature uneven dull surfaces, requiring secondary grinding before spot welding and bringing unstable fusion strength between cells and tabs. DZX bright nickel coated steel strip solves all these drawbacks simultaneously. The steel core provides superior tensile strength to resist vibration creep, the mirror-bright dense nickel coating blocks moisture, electrolyte vapor and surface oxidation, while the uniform smooth surface guarantees consistent low contact resistance and one-step spot welding without extra surface treatment.

We control all production workflows in-house, including steel cold rolling, precision surface mirror polishing, reel-to-reel low-stress nickel electroplating, stress relief annealing and burr-free precision slitting, without outsourcing polishing or plating links to third-party processors. Every finished coil undergoes full offline testing for surface brightness uniformity, nickel coating thickness, tensile hardness, neutral salt fog resistance and spot welding ductility before shipment. All raw materials comply with RoHS, REACH and IATF 16949 automotive lithium battery standards, eliminating hidden thermal runaway risks caused by defective conductive tabs. Real-time optical thickness and surface gloss detectors run on all production lines to lock nickel coating thickness, steel hardness and dimensional tolerance within ultra-narrow fluctuation ranges, ensuring identical conductive and forming performance across thousands of bulk batches.

This bright surface nickel coated steel strip acts as mainstream economical conductive raw material covering three fast-expanding lithium battery downstream sectors boosted by global energy electrification transformation.

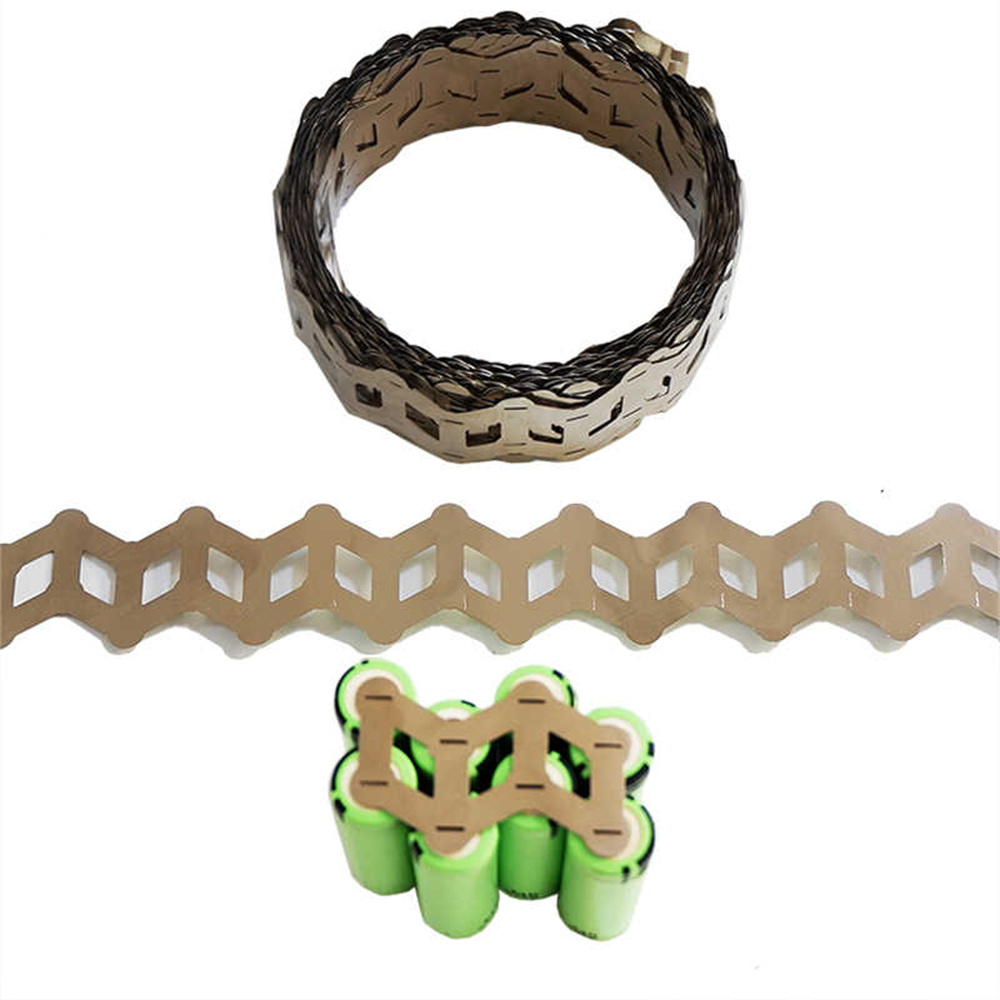

First, two-wheeler & portable power lithium battery packs. 18650, 21700 cylindrical cell connecting tabs, power bank internal jumpers and small energy storage module busbars require thin, smooth stampable raw materials for mass progressive die production; the bright surface simplifies automatic spot welding and reduces manual rework rate.

Second, grid & household energy storage battery cabinets. Outdoor storage systems face drastic temperature swings and coastal salt mist erosion; rigid bright nickel-plated steel busbars fit fixed modular power distribution structures, maintaining stable conductive performance under long-term outdoor service.

Third, automotive & power tool lithium battery components. EV auxiliary battery terminals, power tool battery pack interconnectors and battery management system shrapnel contacts withstand vehicle vibration and workshop chemical vapor, demanding scratch-free bright surfaces for reliable long-cycle welding joints.

Global lithium battery capacity expansion continuously lifts demand for high-quality composite nickel-plated conductive raw materials. Industry statistics show the annual compound growth rate of nickel coated steel strips for battery conductive parts reaches 13.0% from 2026 to 2030. Surging pure nickel metal prices push battery manufacturers to switch to economical steel-based composite conductive materials, while stricter battery consistency and reliability standards force factories to phase out cheap matte-plated and bare steel strips with unstable welding performance. Mid-to-high-volume lithium battery assembly plants gradually adopt bright surface nickel coated steel strips to cut preprocessing labor costs, reduce welding scrap rates and extend full battery service life.

We collect thousands of on-site assembly feedback from lithium battery manufacturers cooperating with generic material processors, summarizing five core quality defects brought by non-DZX conductive steel strips:

1. Fast surface rust of bare steel strips: Within 1–2 weeks of warehouse storage or humid battery workshop environment, red iron oxide covers strip surfaces, ruining spot welding joints and causing open-circuit overheating defects in finished battery packs.

2. Extra polishing cost of matte nickel-plated steel strips: Conventional low-grade plated steel carries dull uneven surfaces with tiny plating pits; factories must add secondary grinding procedures before welding, increasing labor time and production costs.

3. Uneven thin nickel plating on cheap processed strips: Discontinuous batch electroplating creates pinholes and ultra-thin coating areas; neutral salt fog testing fails within 24 hours, and corrosive media penetrates steel base to form hidden rust points inside sealed battery modules.

4. Nickel coating peeling during stamping and bending: Suppliers skipping pre-plating mirror polishing and micro-activation produce strips with weak metal bonding between nickel and steel. Coating flakes off after repeated folding or sharp stamping edges, exposing bare steel that oxidizes quickly.

5. Unstable batch consistency from small-scale processors: Manual random sampling inspection leads to wide fluctuations in plating thickness and surface gloss between batches. Battery factories must frequently adjust spot welding machine current parameters, pushing up testing labor costs and finished product scrap rates.

All these costly production and battery reliability risks can be fully eliminated by switching to DZX standardized bright surface nickel coated steel battery conductive strips, supported by our full-process closed-loop surface quality monitoring system.

We break down key technical metrics that directly decide battery welding yield, conductive stability and anti-rust service life for battery design engineers:

Nickel Coating Thickness: Adjustable range 0.5μm–5μm; 1μm standard for portable consumer lithium batteries, 3μm recommended for automotive and outdoor energy storage packs. Too thin coating fails salt fog anti-corrosion testing; overly thick nickel raises overall contact resistance and weakens stamping ductility.

Mirror Bright Surface Gloss: DZX controlled gloss level ≥450GU, uniform mirror finish without pits, scratches or matte spots, eliminating secondary polishing procedures before spot welding.

Tensile Strength & Elongation: Standard soft annealed steel base elongation ≥25%, tensile strength 380–450MPa for deep-drawn miniature cell tabs; hard temper tensile strength 500–620MPa for rigid thick busbars requiring structural stiffness.

Neutral Salt Spray Resistance: Standard DZX bright plated products pass 72-hour salt fog testing without red rust; customized heavy anti-corrosion grades support 200-hour salt mist compliance for coastal energy storage battery projects.

Steel Base Purity: Low-carbon cold rolled steel with ultra-low impurity content, minimizing stamping die abrasion during high-speed mass battery tab production.

Dimensional Tolerance: Thickness tolerance ±0.002mm, width tolerance ±0.02mm, burr-free slit edges to prevent battery diaphragm puncturing during cell assembly.

We contrast DZX full-industry-chain manufacturing strengths with ordinary third-party material factories, highlighting differentiated core advantages without naming competing brands:

1. Independent full-process production lines & dedicated bright plating R&D laboratory: We operate 6 reel-to-reel mirror polishing and continuous nickel electroplating production lines and matched steel annealing furnaces, holding multiple bright nickel composite steel strip patents for battery conductive parts. Most peer processors outsource polishing and plating procedures and cannot adjust nickel coating thickness, surface gloss and steel hardness to match automatic battery spot welding demands. Our technical team optimizes coating density, surface smoothness and steel ductility based on customer battery pack drawings within three working days.

2. Complete full-range global certification portfolio: DZX owns IATF 16949, ISO9001, ISO14001, RoHS and REACH certifications, and provides full SGS surface gloss, plating thickness and salt fog test reports attached to every shipment batch. Small-scale processing factories rarely possess automotive lithium battery-grade certification required by EV battery pack manufacturers.

3. 24-hour real-time surface & batch consistency monitoring: Automatic optical gloss, thickness and hardness detectors run on all production lines for uninterrupted sampling performance testing. Generic factories rely on irregular manual spot checks, causing wide fluctuations in surface brightness and plating thickness between batches and generating extra welding parameter adjustment costs for downstream battery manufacturers.

4. Flexible low-MOQ customized service system: We support single-sided bright nickel plating, partial masking plating, customized thickness/width reels and tailored soft/hard steel temper combinations, with trial order MOQ as low as 50kg. Conventional suppliers only stock fixed matte standard sizes with minimum order quantity exceeding 500kg.

5. Professional lithium battery conductive material technical support: All DZX sales engineers hold metal battery material engineering backgrounds, offering free material selection optimization suggestions at battery tab stamping and welding design stage to eliminate preprocessing steps and improve assembly yield. Most raw material vendors only complete delivery without downstream battery welding application technical consulting.

6. Stable sufficient mass supply capacity: Our monthly production output reaches 160 tons, with large reserves of low-carbon cold rolled steel raw materials to avoid delivery delays caused by steel and nickel price volatility and raw material supply shortages, a widespread pain point for capital-limited small battery component manufacturers.

1μm thin bright nickel coating balances cost and anti-rust performance for power bank, e-bike and small consumer lithium battery tabs. Automotive and outdoor grid energy storage battery busbars require 3μm thick bright nickel coating to resist long-term salt fog and workshop chemical vapor corrosion. Our engineers will recommend optimal coating thickness after analyzing your battery’s service environment and continuous discharge current parameters.

No. Our mirror-smooth uniform nickel surface stabilizes welding current transmission, reduces electrode abrasion and extends spot welder service life. The dense low-stress nickel layer forms consistent conductive fusion joints without adjusting machine power parameters. Mass production clients record a 4–6% rise in welding yield compared with generic matte nickel-plated steel strips.

Absolutely. Pre-plating mirror polishing and low-temperature stress relief annealing strengthen tight metallurgical bonding between bright nickel layer and steel substrate. After 50 repeated 90-degree bending tests and high-speed progressive die stamping simulation, zero coating shedding occurs, fully matching miniaturized battery tab forming requirements below 0.2mm thickness.

Our sealed anti-rust moisture-proof vacuum packaging guarantees six months of indoor storage with unchanged mirror bright surface and zero rust, far superior to bare steel’s one-week anti-rust storage limit and matte plated steel’s three-month surface fading defect. We provide upgraded double-layer vacuum anti-corrosion packaging for coastal high-humidity lithium battery production workshops.

All core product specifications fully comply with IATF 16949 automotive battery standards, passing 200-hour neutral salt fog, thermal cycle and vibration aging testing. We maintain stable bulk supply for multiple first-tier automotive lithium battery component manufacturers.

Full personalized customization is fully supported. We adjust steel base thickness (0.05–1.0mm), width (1–300mm), soft/hard temper proportion, single-sided bright plating and pre-cut fixed-length rolls strictly following customer technical drawings, with ultra-low trial order minimum quantity and free sample development support.

Our bright nickel coated steel strips carry slightly higher contact resistance than pure nickel, but the resistance difference stays within safe range for most medium and low-current lithium battery discharge scenarios, while raw material procurement costs drop by over 65%, bringing remarkable cost advantages for mass battery pack assembly production.

Free third-party SGS full inspection reports covering surface gloss, nickel coating thickness, neutral salt fog resistance and tensile hardness indicators are attached to every delivery batch. If customers raise quality doubts about incoming materials, we offer complimentary full laboratory performance testing and on-site welding process technical guidance free of charge.
