Our anti-corrosion nickel plated steel strip is independently rolled, electroplated and tested by DZX, specially engineered as cost-effective, high-strength raw stock for mass precision electronic stamping components. We adopt low-carbon cold-rolled steel as rigid base substrate and apply our proprietary dense low-stress nickel electroplating craft, forming a pore-free, tightly bonded nickel protective film that never delaminates after high-speed stamping, repeated bending, spot welding or long-term exposure to humid, dusty and slightly corrosive electronic workshop environments.

A long-standing dilemma troubling electronic stamping factories is balancing mechanical strength, anti-rust performance and raw material cost. Bare steel strips deliver rigid mechanical support at low prices yet rust rapidly under damp air, generating oxide layers that spike contact resistance and cause defective soldering or unstable signal transmission in finished electronic parts. Pure nickel strips offer full corrosion resistance but carry excessive material costs and weak tensile strength, prone to deformation under stamping pressure. Stainless steel resists rust well yet suffers poor spot welding performance and ultra-high inherent resistance, unsuitable for conductive electronic contact components. DZX nickel plated steel strip resolves all three drawbacks simultaneously. The solid steel core provides superior tensile strength ideal for thin mini stamped hardware, while the uniform nickel coating blocks moisture, chloride gas and surface oxidation to stabilize electrical contact performance.

We control every production procedure fully in-house, including steel slab cold rolling, surface degreasing activation, reel-to-reel continuous nickel plating, stress relief annealing and burr-free precision slitting, without outsourcing plating or heat treatment to external processors. Every finished coil undergoes full offline testing for plating uniformity, tensile hardness, neutral salt fog resistance and stamping ductility before delivery. All materials comply with RoHS, REACH and IATF 16949 automotive electronics standards, eliminating risks of electronic component failure triggered by unqualified base metal or defective plating layers. Real-time optical thickness detectors run on all production lines to lock nickel coating thickness, steel hardness and dimensional tolerance within ultra-narrow fluctuation ranges, ensuring identical stamping and electrical performance across thousands of bulk batches.

This anti-corrosion nickel plated steel strip acts as universal foundational raw material covering four fast-growing downstream electronic stamping sectors driven by miniaturization and cost optimization trends.

First, consumer electronic precision stamped contacts. SMD shrapnel contacts, battery protection BMS terminals, charging port conductive tabs and remote control internal connectors rely on our strips for thin forming, stable spot welding and daily anti-rust performance in household humid environments.

Second, automotive electronic stamped components. ECU shielding cans, sensor terminal shrapnels, wiring harness small connectors and new energy control module hardware face long-term vibration, temperature swings and road salt mist; ordinary bare steel raw materials fail prematurely within vehicle service cycles.

Third, industrial control & IoT electronic hardware. PLC miniature terminals, wireless signal shielding frames, smart sensor stamped shells and industrial switch contacts operate amid factory oil vapor and weak corrosive gas, demanding long-term stable conductive performance.

Fourth, portable energy device stamped parts. Two-wheeler lithium battery connecting tabs, power bank internal conductive frames and small energy storage module jumpers require low-cost high-strength stampable raw materials compatible with high-volume progressive die production.

Global electronic precision stamping market expansion continuously lifts demand for composite nickel-plated steel raw materials. Industry statistics show the annual compound growth rate of nickel plated steel strip for electronic stamping reaches 12.8% from 2026 to 2030. Surging copper and pure nickel raw material prices push component manufacturers to adopt economical steel-based composite conductive materials, while stricter product reliability standards force factories to phase out cheap bare steel strips prone to rust failure. Mid-to-high-end electronic stamping plants gradually replace single-metal raw materials with anti-corrosion nickel-plated steel to cut production scrap rates and extend finished component service life.

We collect thousands of on-site production feedback from electronic stamping manufacturers cooperating with generic material processors, summarizing five core quality defects brought by non-DZX conductive steel strips:

1. Rapid surface rust of bare steel strips: Within 1–2 weeks of warehouse storage or humid workshop environment, red iron oxide covers surfaces, ruining spot welding joints and causing open-circuit defects in finished electronic contacts.

2. Poor cost efficiency of pure nickel and stainless steel strips: Pure nickel raw material costs remain extremely high, while stainless steel generates unstable high resistance and weak welding fusion, raising post-stamping rework expenses.

3. Uneven thin nickel plating on low-cost processed strips: Discontinuous batch electroplating creates pinholes and ultra-thin coating areas; neutral salt fog testing fails within 24 hours, and corrosive media penetrates steel base to form hidden rust points inside sealed electronic assemblies.

4. Nickel coating peeling during high-speed stamping and bending: Suppliers skipping pre-plating surface micro-activation produce strips with weak metallurgical bonding between nickel and steel. Coating flakes off after repeated folding or sharp stamping edges, exposing bare steel that rusts quickly.

5. Unstable batch consistency from small-scale processors: Manual random sampling inspection leads to wide fluctuations in plating thickness and steel tensile hardness between batches. Stamping factories must frequently adjust die clearance and welding machine parameters, pushing up labor testing costs and finished product scrap rates.

All these costly production and electronic component reliability risks can be fully eliminated by switching to DZX standardized anti-corrosion nickel plated steel stamping strip, supported by our full-process closed-loop parameter monitoring system.

We break down key technical metrics that directly decide stamping yield, electronic part conductivity and anti-rust service life for hardware design engineers:

Nickel Coating Thickness: Adjustable range 0.3μm–5μm; 1μm standard for indoor consumer electronic contacts, 3μm recommended for automotive and industrial IoT electronic parts. Too thin coating fails salt fog anti-corrosion testing; overly thick nickel raises overall contact resistance and weakens stamping ductility.

Tensile Strength & Elongation: Standard soft annealed steel base elongation ≥25%, tensile strength 380–450MPa for deep-drawn miniature stamped shrapnels; hard temper tensile strength 500–620MPa for rigid thin shielding frames requiring structural stiffness.

Neutral Salt Spray Resistance: Standard DZX products pass 72-hour salt fog testing without red rust; customized heavy anti-corrosion grades support 200-hour salt mist compliance for vehicle and coastal industrial electronics.

Steel Base Purity: Low-carbon cold rolled steel with ultra-low impurity content, minimizing stamping die abrasion during high-speed progressive stamping mass production.

Contact Resistivity: Stable low contact resistance maintained under repeated thermal cycles; nickel surface avoids oxidation resistance surge compared to bare steel.

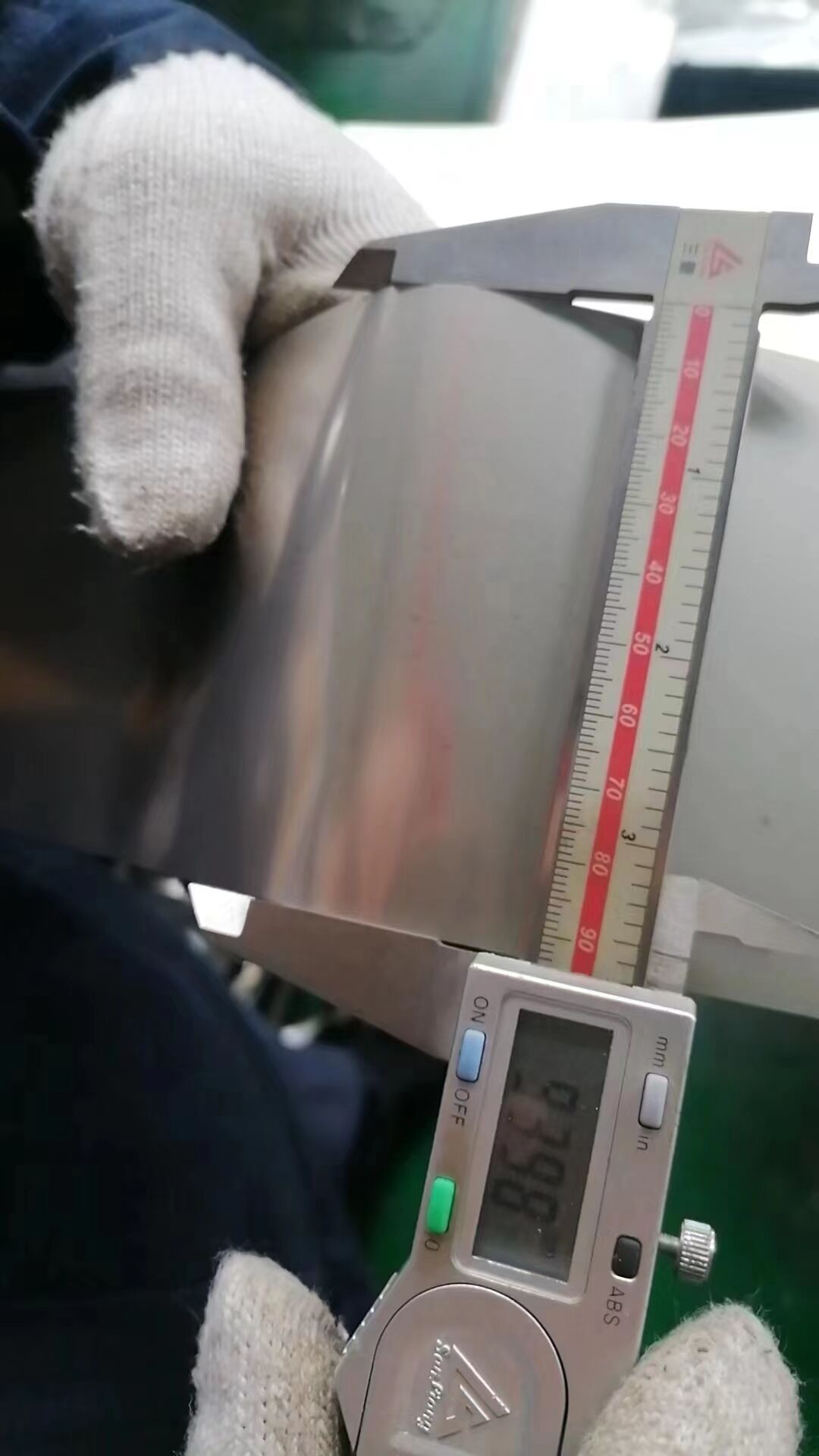

Dimensional Tolerance: Thickness tolerance ±0.002mm, width tolerance ±0.02mm, burr-free slit edges to prevent short-circuit scratching during electronic component assembly.

We contrast DZX full-industry-chain manufacturing strengths with ordinary third-party material factories, highlighting differentiated core advantages without naming competing brands:

1. Independent full-process production lines & in-house stamping material R&D laboratory: We operate 6 reel-to-reel continuous nickel electroplating production lines and dedicated steel annealing furnaces, holding multiple composite nickel-plated steel stamping material patents. Most peer processors outsource plating procedures and cannot adjust nickel coating thickness, steel hardness to match high-speed progressive die stamping demands of customer electronic parts. Our technical team optimizes coating density, steel ductility and surface smoothness based on customer stamping drawing files within three working days.

2. Complete full-range global certification portfolio: DZX owns IATF 16949, ISO9001, ISO14001, RoHS and REACH certifications, and provides full SGS test reports attached to every shipment batch. Small-scale processing factories rarely possess automotive electronics-grade certification required by vehicle stamping component manufacturers.

3. 24-hour real-time batch consistency monitoring: Automatic optical thickness and hardness detectors run on all production lines for uninterrupted sampling performance testing. Generic factories rely on irregular manual spot checks, causing wide fluctuations in plating thickness and steel ductility between batches and generating extra stamping die wear and production loss for downstream manufacturers.

4. Flexible low-MOQ customized service system: We support single-sided nickel plating, partial masking plating, customized thickness/width reels and tailored soft/hard steel temper combinations, with trial order MOQ as low as 50kg. Conventional suppliers only stock fixed standard sizes with minimum order quantity exceeding 500kg.

5. Professional electronic stamping material technical support: All DZX sales engineers hold metal stamping material engineering backgrounds, offering free material selection optimization suggestions at the stamping die design stage to improve forming yield and reduce die maintenance costs. Most raw material vendors only complete delivery without downstream stamping application technical consulting.

6. Stable sufficient mass supply capacity: Our monthly production output reaches 165 tons, with large reserves of low-carbon cold rolled steel raw materials to avoid delivery delays caused by steel price volatility and raw material supply shortages, a widespread pain point for capital-limited small manufacturers.

1μm thin nickel coating balances cost and anti-rust performance for indoor consumer electronic contacts, BMS tabs and small remote control shrapnels. Automotive and industrial IoT electronic stamped components require 3μm nickel thickness to resist long-term salt fog and workshop chemical vapor corrosion. Our engineers will recommend optimal coating thickness after analyzing your finished part service environment.

No. Our smooth low-stress nickel surface reduces stamping die friction and abrasion, extending die service life. The uniform nickel layer forms a thin conductive interface during welding pulse discharge, forming tight metal fusion joints without adjusting machine power parameters. Mass production clients record a 4–6% rise in stamping and welding yield compared with generic low-grade plated steel strips.

Absolutely. Pre-plating surface micro-etching and low-temperature stress relief annealing strengthen metallurgical bonding between nickel layer and steel substrate. After 50 repeated 90-degree bending tests and high-speed progressive die stamping simulation, zero coating shedding occurs, fully matching miniaturized electronic component forming requirements below 0.2mm thickness.

Our sealed anti-rust moisture-proof packaging guarantees six months of indoor storage with zero surface rust, far superior to bare steel’s one-week anti-rust storage limit. We provide vacuum anti-corrosion packaging as an optional upgrade for coastal high-humidity electronic stamping workshops.

All core product specifications comply with IATF 16949 automotive electronics standards, passing 200-hour neutral salt fog, thermal cycle and vibration aging testing. We maintain stable bulk supply for multiple first-tier automotive electronic stamping component manufacturers.

Full personalized customization is fully supported. We adjust steel base thickness (0.05–2mm), width (5–300mm), soft/hard temper, single-sided plating and pre-cut fixed-length rolls strictly following customer technical drawings, with ultra-low trial order minimum quantity.

Our nickel plated steel strips carry slightly higher contact resistance than pure nickel, but the performance gap stays acceptable for most low-current electronic contact scenarios, while raw material costs drop by over 60%, bringing remarkable cost advantages for mass stamping production.

Free third-party SGS full inspection reports are attached to every delivery batch. If customers raise quality doubts about incoming materials, we offer complimentary laboratory testing covering nickel coating thickness, neutral salt fog resistance, tensile ductility and contact resistance indicators.
