Products Description

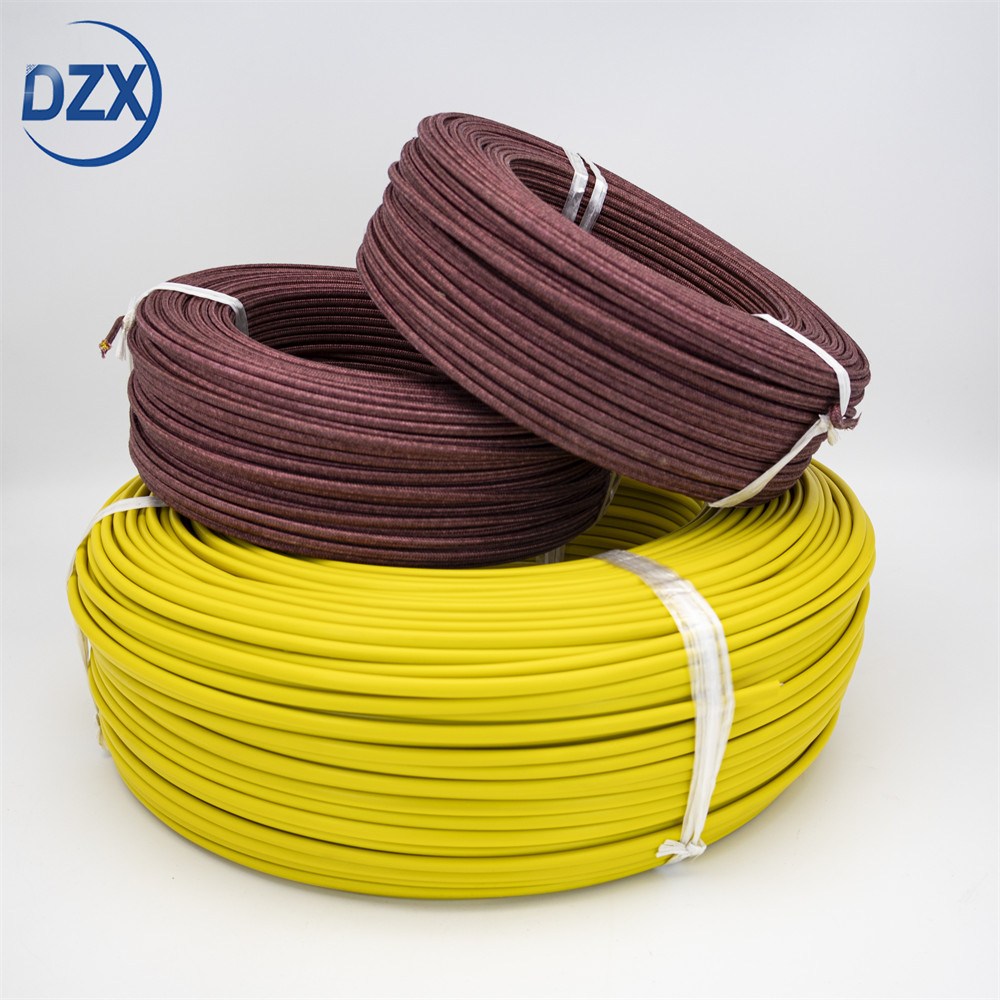

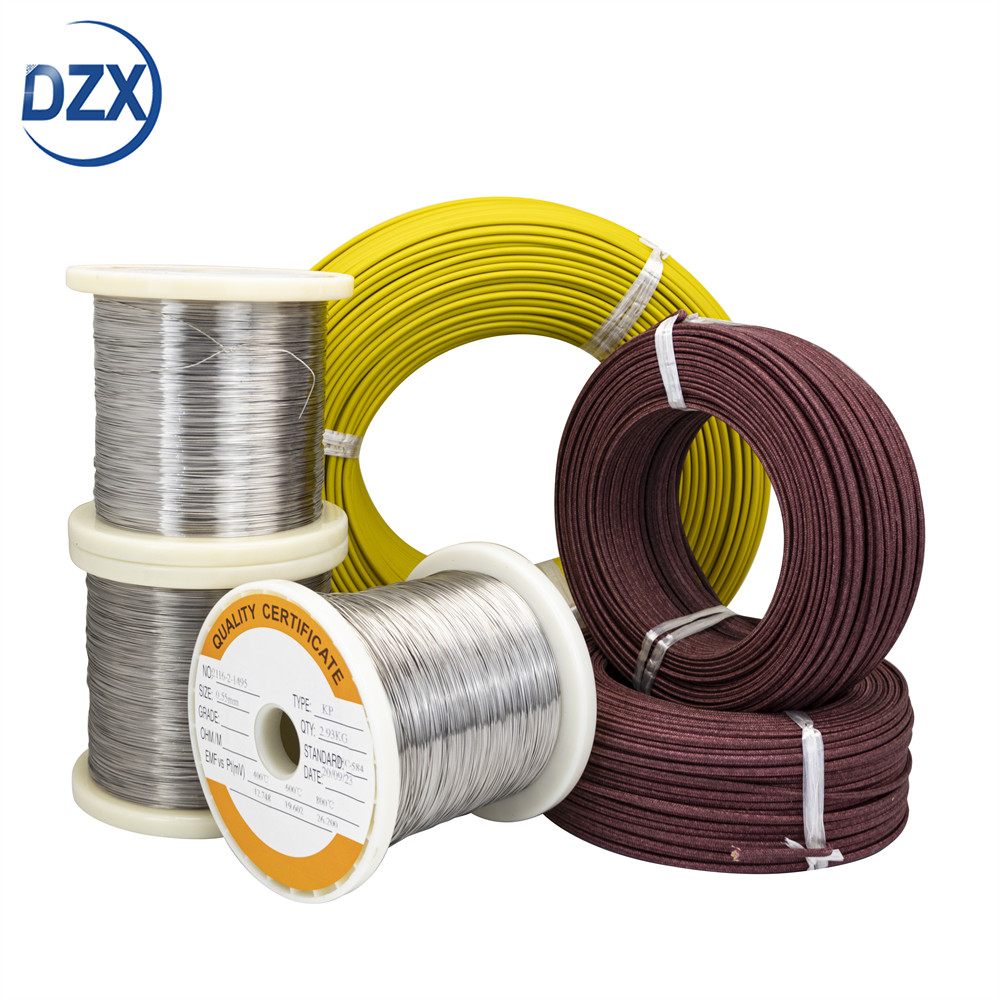

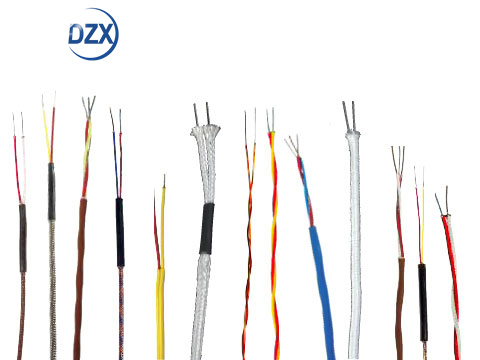

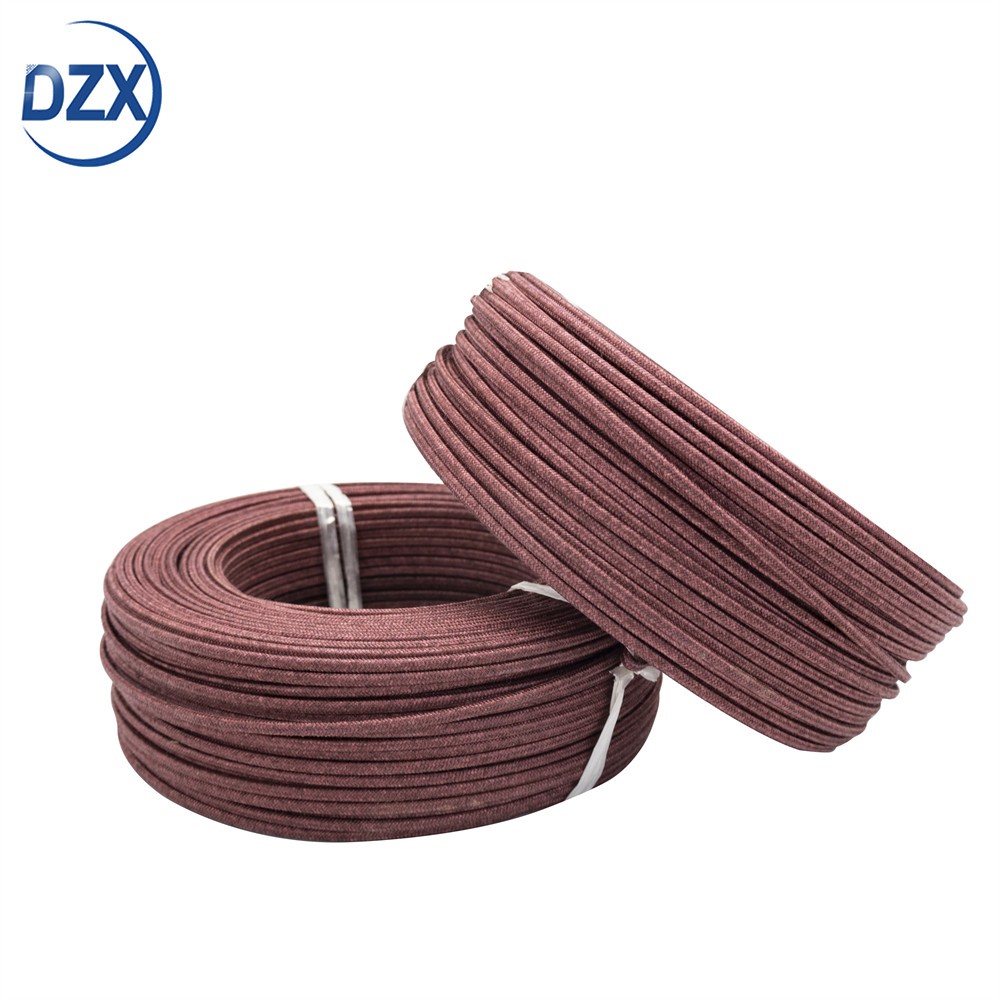

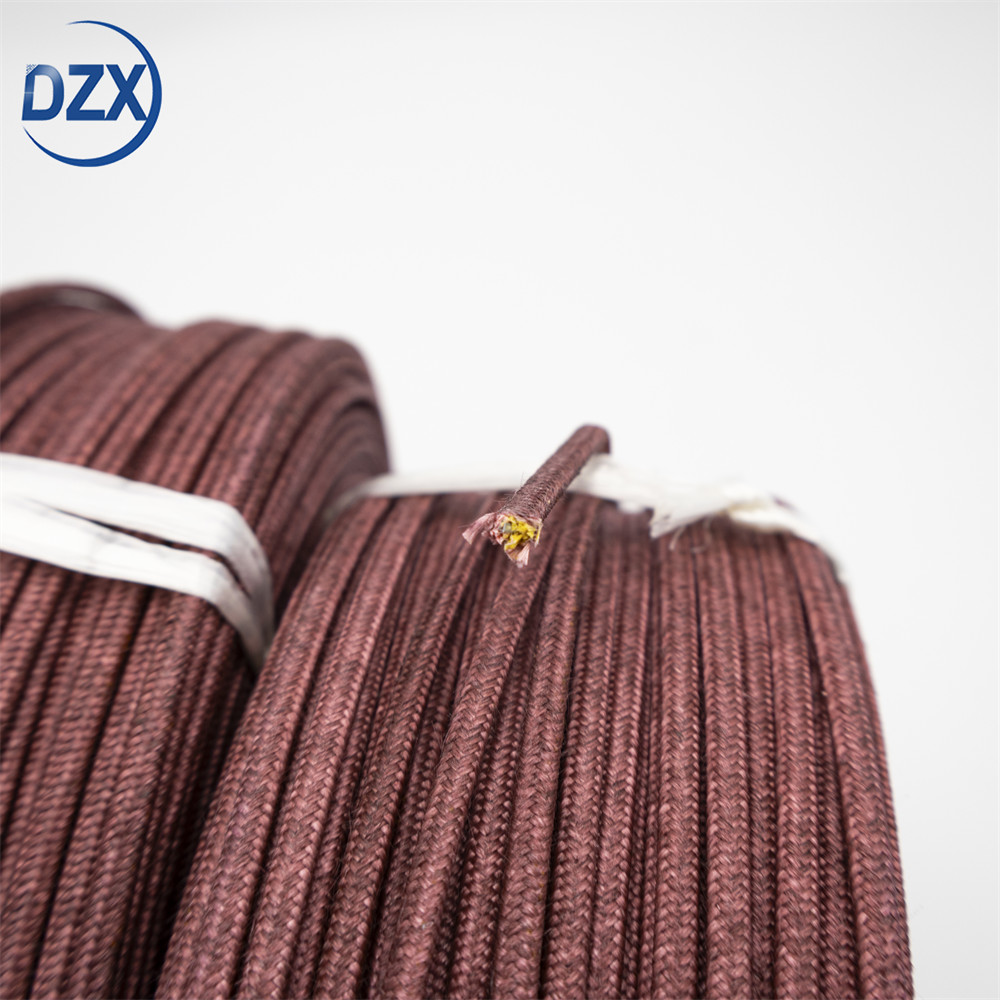

Type J Fiberglass/Silicone/PVC insulated thermocouple compensation wire/ extension cable

Description

J-type thermocouples are widely popular in industrial and scientific research fields due to their stable performance, easy maintenance, and economical cost. Iron copper nickel thermocouple (J-type thermocouple), also known as iron constantan thermocouple, is a type of thermocouple commonly used for temperature measurement and control. The positive electrode (JP) is made of pure iron, while the negative electrode (JN) is made of copper nickel alloy, commonly known as constantan. The nominal chemical composition of constantan is about 55% copper and 45% nickel, while containing small but very important elements such as cobalt, iron, and manganese. Although this thermocouple is called constantan, it is different from other types of constantan such as nickel chromium constantan and copper constantan, and therefore cannot be replaced by EN or TN.

The iron constantan thermocouple covers a wide range of measurement temperature ranges, from -210 ° C to 1200 ° C, but the commonly used temperature range is 0 ° C to 750 ° C. This type of thermocouple is widely used in industrial production, scientific laboratories, and other temperature monitoring fields, providing a reliable solution for temperature measurement.

Products parameter

Main features:

Economy and practicality: J-type thermocouples have become the preferred choice for many temperature measurement applications due to their lower cost and reliable performance.

Chemical composition is clear: the positive electrode (JP) is made of pure iron, and the negative electrode (JN) is made of copper nickel alloy, containing 55% copper and 45% nickel, as well as small amounts of cobalt, iron, manganese and other elements, ensuring the stability and accuracy of the thermocouple.

Wide measurement temperature range: Covering a measurement temperature range of -210 ° C to 1200 ° C, the commonly used temperature range is 0 ° C to 750 ° C, meeting a wide range of industrial needs.

Easy to maintain: Due to its simple structure, the installation and maintenance of J-type thermocouples are very convenient.

Anti interference performance: Good resistance to electromagnetic interference, ensuring accurate measurement results even in complex environments.

Application field:

Industrial process control: Monitor the temperature of key equipment in industries such as chemical, food processing, and metal processing to ensure the stability and safety of the production process.

Environmental monitoring: used for meteorological stations, environmental monitoring stations, etc. to collect and analyze temperature data.

Research laboratory: precise temperature control and monitoring within the medium temperature range in the laboratory.

Medical equipment: Monitor and control temperature in medical equipment to ensure the safety of the treatment process.

Education field: As a teaching tool in education and training, it helps students understand the basic principles of temperature measurement.

Reasons for choosing J-type thermocouples:

Economy: Provides a cost-effective solution suitable for applications with limited budgets but requiring reliable measurements.

Stability and accuracy: The combination of pure iron positive electrode and copper nickel alloy negative electrode ensures the stability and accuracy of thermocouples over a wide temperature range.

Technical Support: Our technical support team is always ready to answer your questions and provide assistance.

Take immediate action:

Contact us immediately to learn more about J-type thermocouples or obtain quotes for customized solutions.
