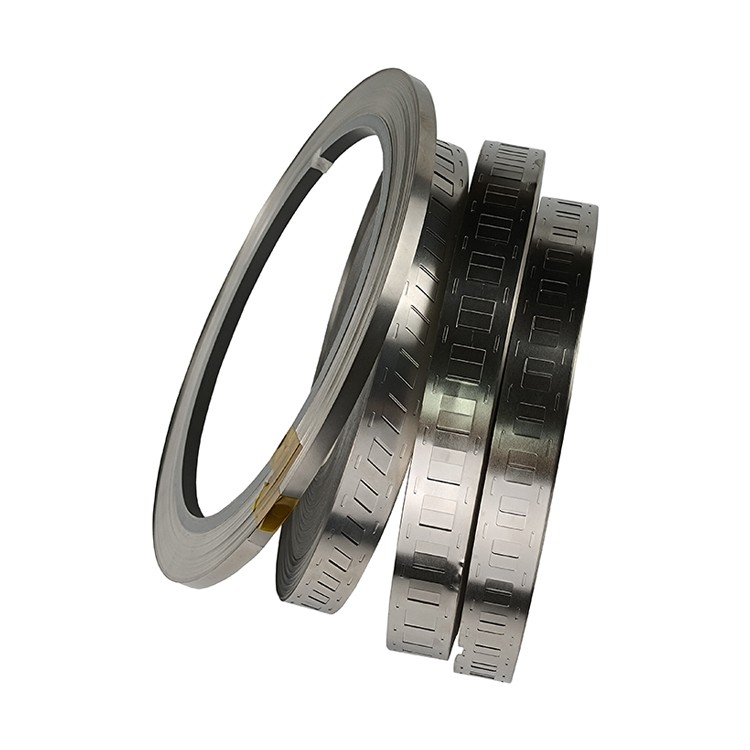

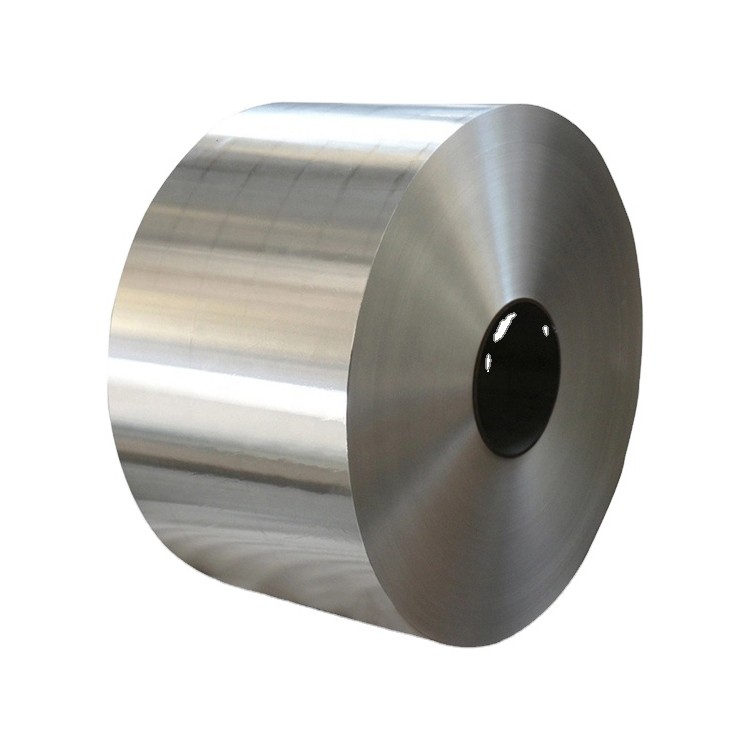

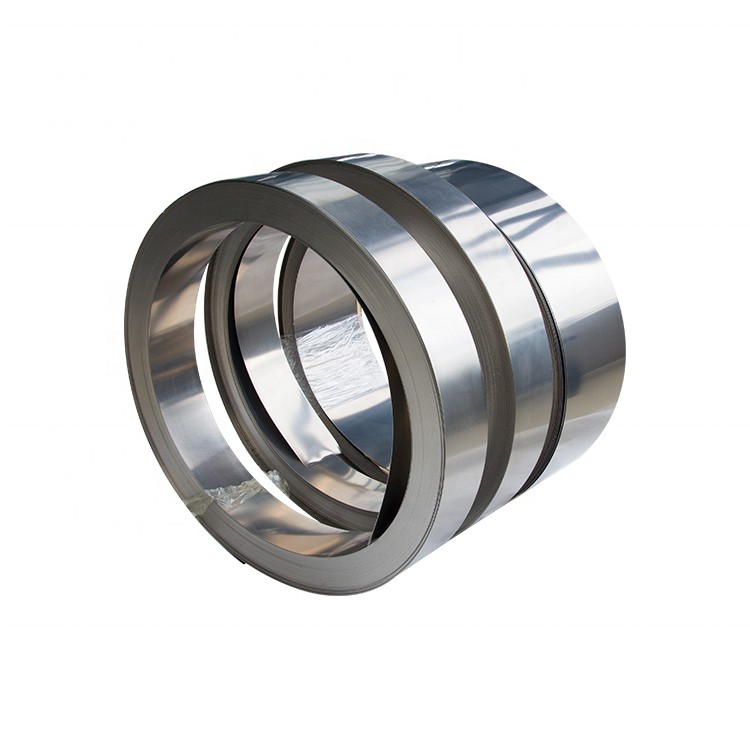

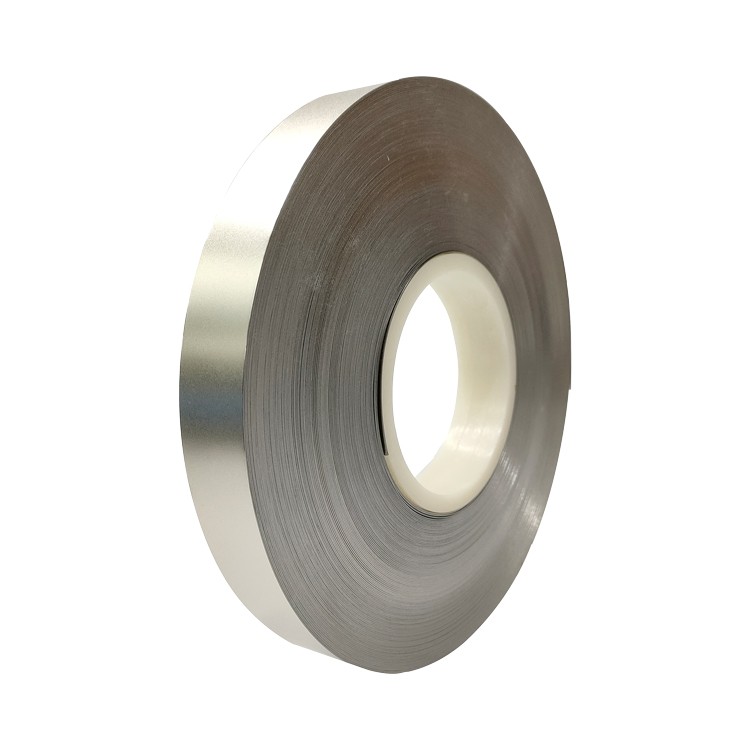

Top Quality 0.05mm 0.1mm Precision FeNi50 Nickel Iron Alloy Strip Invar 36 4J29 Foil
Product name: precision alloy stirp
Grade: Nickel Base Alloy
Size: Customized Size
Ultimate Strength (≥ MPa): 550
Elongation (≥ %): 15-25%
Density: 8.11 g/cm³
0Product name: precision alloy stirp
Grade: Nickel Base Alloy
Size: Customized Size
Ultimate Strength (≥ MPa): 550
Elongation (≥ %): 15-25%
Density: 8.11 g/cm³
Products Description
Top quality 0.05mm 0.1mm precision FeNi29Co17 nickel iron alloy strip kovar 29 4J29 foil
Invar 36, also known as FeNi36, is a nickel-iron, low-expansion alloy containing 36% nickel. It has a low coefficient of expansion from cryogenic temperatures to about 260°C. In the dry air at home temperature, invar 36 has good resistance to corrosion. But in moist air, it may go corrosion.Invar 36 is suitable for the applications who require low coefficient of expansion, such as production, storage and transportation of liquid gas, temperature regulation devices working below 200°C, aperture mask, unit frameworks working below -200°C and so on.
Alloy Type | Trade Name | UNS No. | Specifications | Forms Of Supply | |||
Rod | Strip | Wire | Sheet | ||||
Ni29Co17 | Kovar | K94610 | ASTM F15 | √ | √ | √ | √ |
FeNi36 | Invar 36 | K93603 | ASTM 1684 | √ | √ | √ | |
FeNi32Co5 | Super Invar 32-5 | KI93500 | ASTMF1684 | √ | √ | √ | |
FeNi27Co25 | Ceramvar | F1466 | ASTMF1466 | √ | √ | √ | √ |
FeNi42 | Alloy 42 | K94100 | ASTM F30 | √ | √ | √ | |
FeNi46 | Alloy 46 | K94600 | ASTM F30 | √ | √ | √ | |
FeNi48 | Alloy 48 | K94800 | ASTMF30 | √ | √ | √ | |
FeNi50 | Alloy 52 | K95050 | ASTM F30 | √ | √ | √ | √ |
Item | 1J33 | 3J01 | 3J9 | 4J29 | 4J32 | 4J33 | 4J45 | FeNi50 | Invar36 |
C | ≤0.05 | ≤0.05 | 0.22-0.26 | ≤0.03 | ≤0.05 | ≤0.03 | ≤0.05 | ≤0.05 | ≤0.1 |
Mn | 0.30-0.6 | ≤1.00 | 1.80-2.20 | ≤0.5 | 0.2-0.6 | ≤0.5 | ≤0.8 | ≤0.8 | ≤0.5 |
Fe | Rest | ||||||||
P | ≤0.020 | ≤0.020 | ≤0.03 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.006 |
S | ≤0.020 | ≤0.020 | ≤0.020 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.04 |
Si | 0.30-0.6 | ≤0.80 | 1.30-1.70 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.35 |
Ni | 32.8-33.8 | 34.5-36.5 | 9.0-10.5 | 28.5-29.5 | 31.5-33 | 28.5-29.5 | 44.5-45.5 | 49.5-50.5 | 35-38 |
Al | 1.0-2.0 | 1.00-1.80 | -- | -- | -- | -- | ≤0.1 | ≤0.1 | -- |
Co | -- | -- | -- | 16.8-17.8 | 3.2-4.2 | 16.8-17.8 | -- | -- | -- |
Ti | -- | 2.70-3.20 | -- | -- | -- | -- | -- | -- | -- |
Cu | -- | -- | -- | ≤0.2 | 0.4-0.8 | ≤0.2 | -- | -- | -- |
Cr | -- | 11.5-13.0 | 19.0-20.5 | ≤0.2 | -- | ≤0.2 | -- | -- | -- |
Mo | -- | -- | 1.60-1.85 | ≤0.2 | -- | ≤0.2 | -- | -- | -- |
For more details, pls directly contact us.
