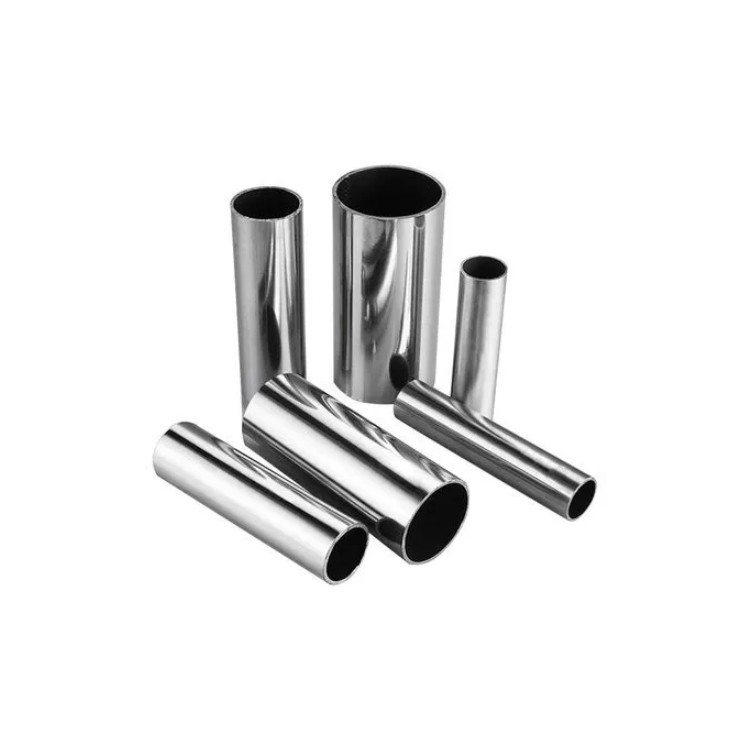

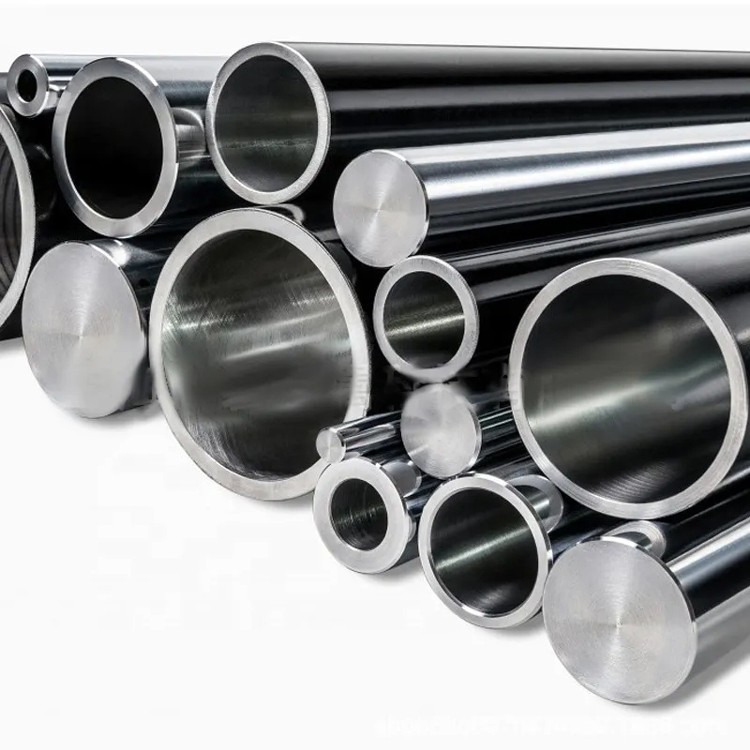

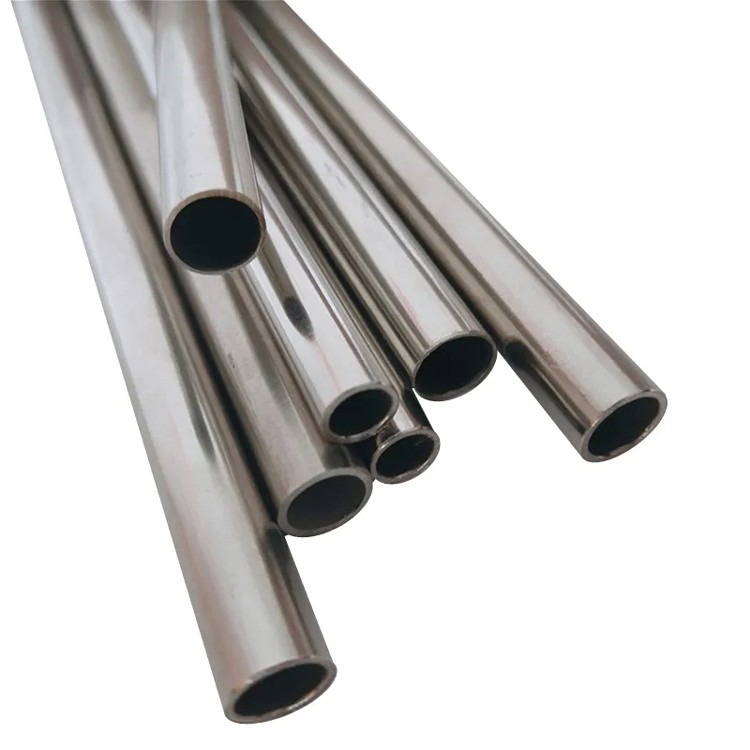

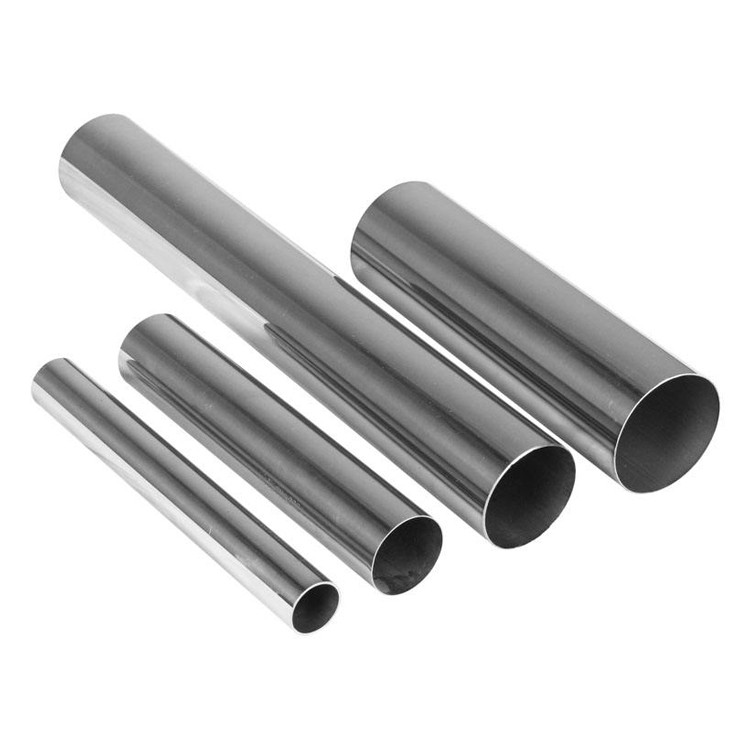

Nickel-copper Alloy Monel 400 UNS N04400 Nickel Alloy Seamless Pipe/Tube
Product name: monel tube
Grade: Ni Cu
Ni (Min): 63%
Size: custom made
Ultimate Strength (≥ MPa): 480
Melting：1300-1350 °C
Elongation (≥ %): 20%-35%
Service:OEM\ODM
0Product name: monel tube
Grade: Ni Cu
Ni (Min): 63%
Size: custom made
Ultimate Strength (≥ MPa): 480
Melting：1300-1350 °C
Elongation (≥ %): 20%-35%
Service:OEM\ODM
Products Description
Nickel -copper alloy Monel 400 UNS N04400 nickel alloy seamless pipe/tube
Monel 400 is copper nickel alloy, has good corrosion resistance. In salty water or seawater has excellent resistance to pitting corrosion, stress corrosion ability. Especially hydrofluoric acid resistance and resistance to the hydrochloric acid. Widely used in the chemical, oil, Marine industry.
It is widely used on many aspects, like valve and pump parts, electronic components, chemical processing equipment, gasoline and freshwater tanks, petroleum processing equipment, propeller shafts, marine fixtures and fasteners, boiler feedwater heaters and other heat exchangers.
Item | Ni | Cu | Fe | Mn | C | Si | S |
Monel 400 | ≥63 | 28-34 | ≤2.5 | ≤2 | ≤0.3 | ≤0.5 | ≤0.025 |
Item | Ni | Cu | Al | Ti | Fe | Mn | S | C | Si |
Monel K500 | ≥63 | 27-33 | 2.3-3.15 | 0.35-0.85 | ≤2 | ≤1.5 | ≤0.01 | ≤0.25 | ≤0.5 |
Item | Density | Melting point | Tensile Strength | Yield Strength | Elongation | HB |
Monel 400 | 8.83 g/cm3 | 1300-1390℃ | 480 | 170 | 35% | ≥331 |
Item | Density | Melting point | Tensile Strength | Yield Strength | Elongation |
Monel K500 | 8.05 g/cm3 | 1288-1343℃ | 1100 | 790 | 20% |
Monel 400 | Bar/Rod | Forging | Pipe | Sheet/Strip | Welding Wire |
Standard | ASTM B164 | ASTM B564 | ASTM B165 | ASTM B127 | ErNiCu-7 |
Monel K500 | Bar/Rod | Forging | Pipe | Sheet/Strip | Welding Wire |
Standard | ASTM B864 | AMS4676 | ASTM B865 | ASTM B564 | ErNiCu-7 |
For more details, pls directly contact us.
