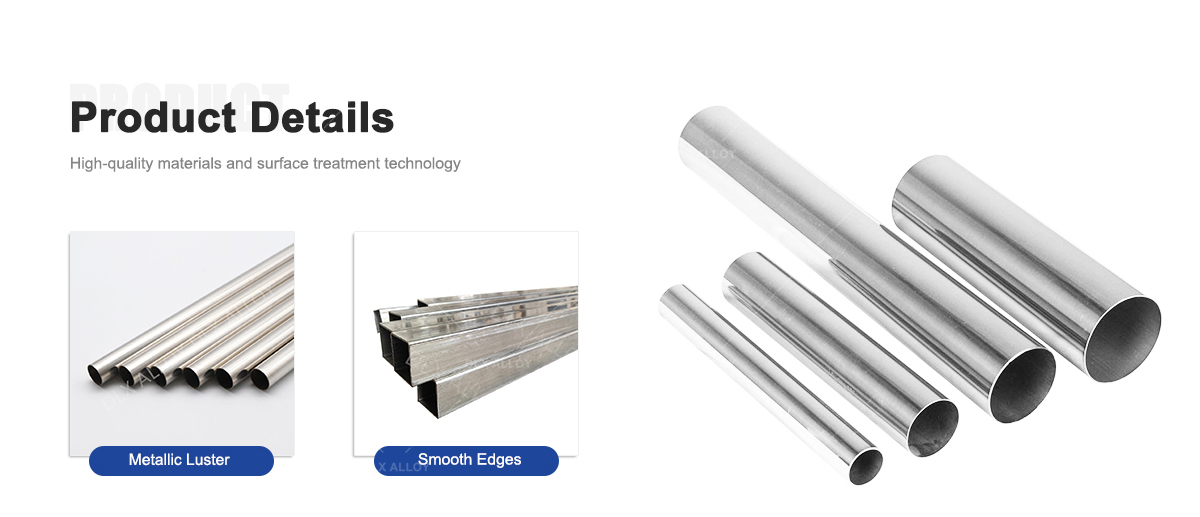

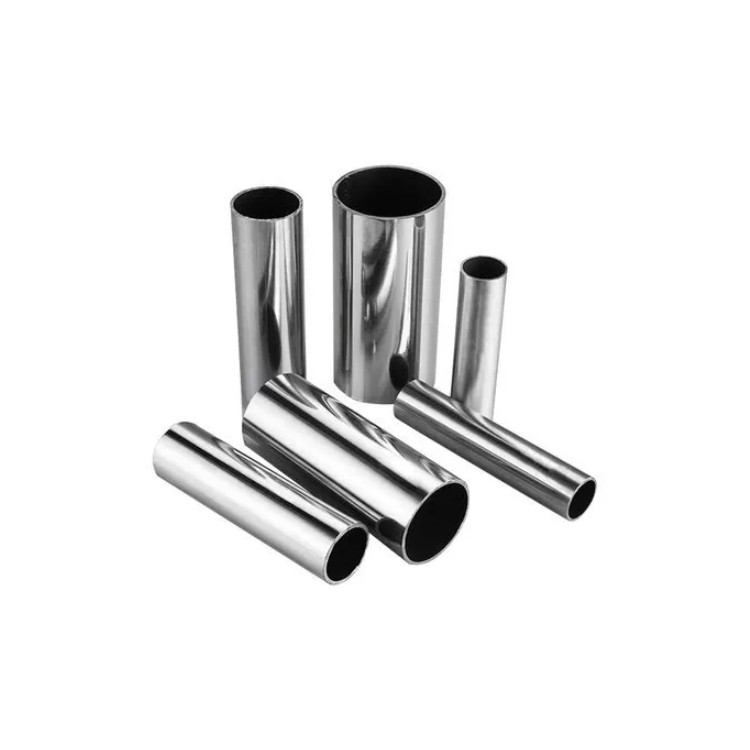

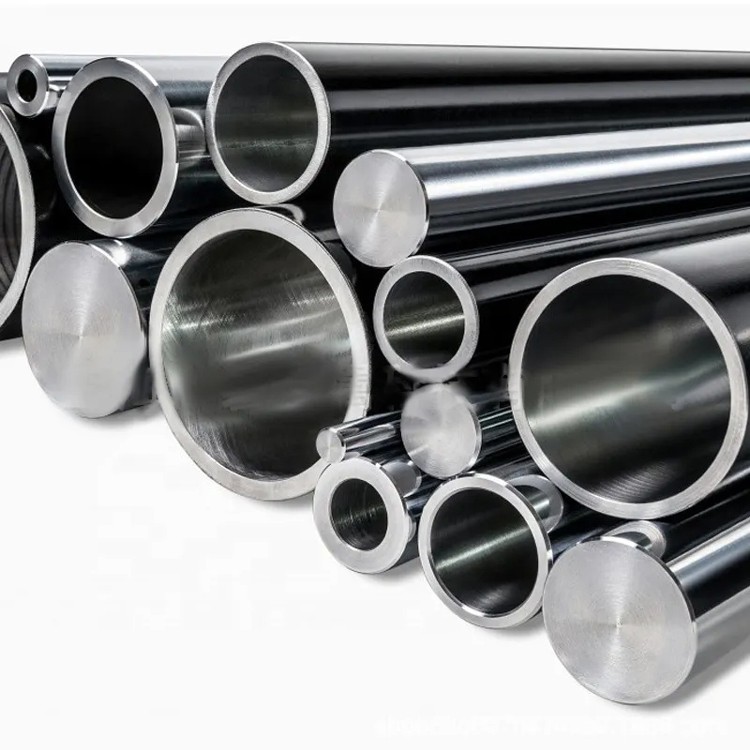

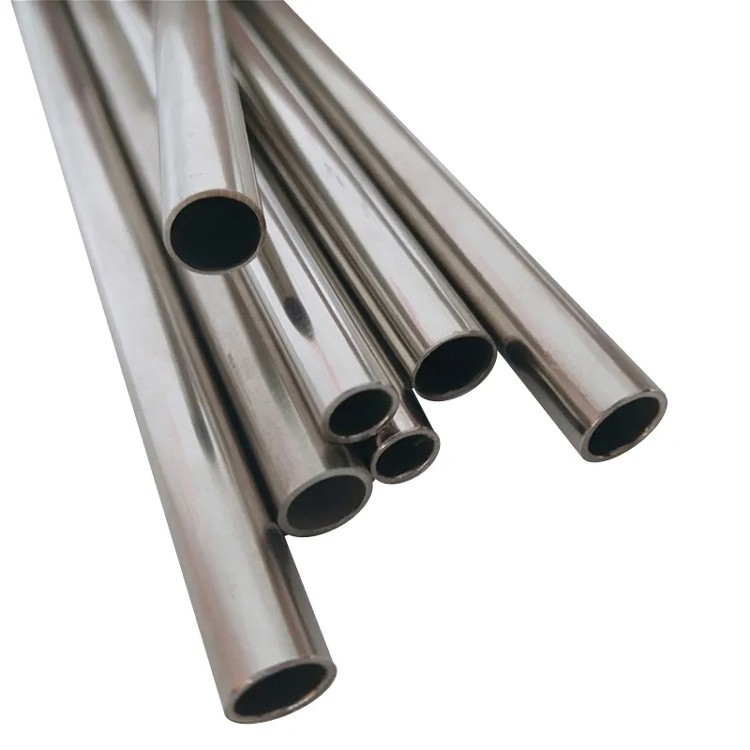

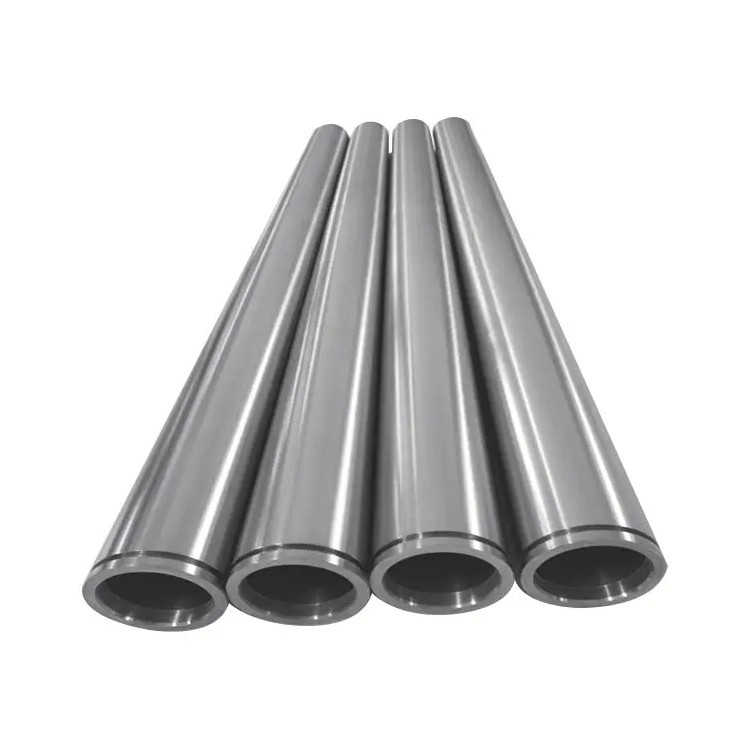

Product name: hastelloy pipe
Grade: HC-276.C-22.C-4.B2.B3.N
Size: 0.025-10mm
Tensile Strength (≥ MPa): 690 MPa
Elongation (≥ %): 40%
Density：8.89 g/cm3
Melting Point: 1325-1370 °C
Products Description
Hastelloy is a nickel-based corrosion-resistant alloy, which is mainly divided into two categories: nickel-chromium alloy and nickel-chromium-molybdenum alloy. Hastelloy has good corrosion resistance and thermal stability, and is mostly used in aviation, chemical fields, etc.
Hastelloy is composed of elements such as Ni, Cr, Mo, Fe, Si, etc. It is Ni-Mo series, Ni-Cr-Mo series and Ni-Si series corrosion-resistant and heat-resistant alloys in nickel-based alloys. Its density 9.2g/cm, melting point 1330-1380℃, magnetic permeability ≤1.001 (℃, RT).
Product Information
Size Range | |
Wire | 0.5-7.5mm |
Rod/Bar | 8.00-200mm |
Strip | (0.50-2.5)*(5-180)mm |
Tube | Customized |
Plate | Customized |
Hastelloy grades: Hastelloy C276, Hastelloy C22, Hastelloy C-2000, Hastelloy C-4, Hastelloy C, Hastelloy B, Hastelloy B-2, Hastelloy B-3, Hastelloy X, Hastelloy G-30, Hastelloy G-35, etc.
UNS N10276, UNS N06022, UNS N06200, UNS N10665, UNS N10675, UNS N06030, UNS N06002, etc. Hastelloy seamless pipes, steel plates, round bars, forgings, flanges, H-rings, welded pipes, steel strips, straight bars, wires and supporting welding consumables, processed parts, etc.
Hastelloy | |||||||||||
Grade | Ni | Cr | Mo | W | Co | C | Mn | Si | S | P | Other |
C-276 | Rem | 15-16.5 | 15-17 | 3-4.5 | 2.5 | 0.01 | 1 | 0.08 | 0.001 | 0.015 | V0.1-0.3 |
C-22 | 56-59 | 20-22.5 | 12.5-14.5 | 2.5-3.5 | 2.5 | 0.015 | 0.5 | 0.08 | 0.02 | V0.35 | |
C-2000 | Rem | 22-24 | 15-17 | 2 | 0.01 | 0.5 | 0.06 | 0.01 | 0.025 | A10.5 Cul.6 | |
B-2 | Rem | 0.4-0.7 | 26-30 | 1 | 0.01 | 1 | 0.08 | 0.01 | 0.02 | Cu0.5 | |
B-3 | 65 | 1-3 | 27-32 | 3 | 3 | 0.01 | 3 | 0.1 | 0.01 | 0.03 | Vo.2 A10.5 Ti0.2 Cuo.2 |
G-30 | Rem | 28-31.5 | 4-6 | 1.5-4 | ≤5 | 0.03 | ≤2 | ≤1 | ≤0.02 | ≤0.04 | Nb/Ta0.3-1.5 Cul-2.4 |
X | Rem | 20.5-23.5 | 8-10 | 0.2-1 | 0.5-2.5 | 0.05-0.15 | 1 | 1 | 0.015 | 0.025 | A10.5 Ti0.15 B0.005 |
C-4 | Rem | 14-18 | 14-17 | 2 | 0.015 | 1 | 0.08 | 0.7 | 0.04 | Ti0.7 | |
G-35 | 8-10 | 5 | 2 | 0.03 | 2-3 | 1.5 | 1 | 2 | 0.02 | Cu0.04 | |
C | Rem | 14.5-17.5 | 15-17 | 3-4.5 | 0.03 | 1 | 0.03 | 0.04 | |||
Hastelloy | Density (g/cm3) | Melting point (℃) | Elongation A5 (%) | Tensile Strength (Rm N/mm2) | Yield Strength (RP0.2N/mm2) |
C-276 | 8.9 | 1325-1370℃ | 62 | 758 | 363 |
C-22 | 8.9 | 1325-1370 ℃ | 40 | 690 | 283 |
C-2000 | 8.5 | 1399℃ 2550°F | 45 | 690 | 283 |
B-2 | 9.2 | 1330-1380℃ | 40 | 745 | 325 |
B-3 | 9.22 | 1370-1418℃ | 40 | 760 | 350 |
G-30 | 8.22 | 1399℃ 2550°F | 62 | 524 | 200 |
X | 8.3 | 1260-1355℃ | 30 | 690 | / |
C-4 | 8.64 | 399°C 2550°F | 40 | 690 | 280 |
G-35 | 8.22 | 1370-1400℃ | / | / | / |
C | 8.94 | 1330-1380 ℃ | 40 | 690 | 310 |
