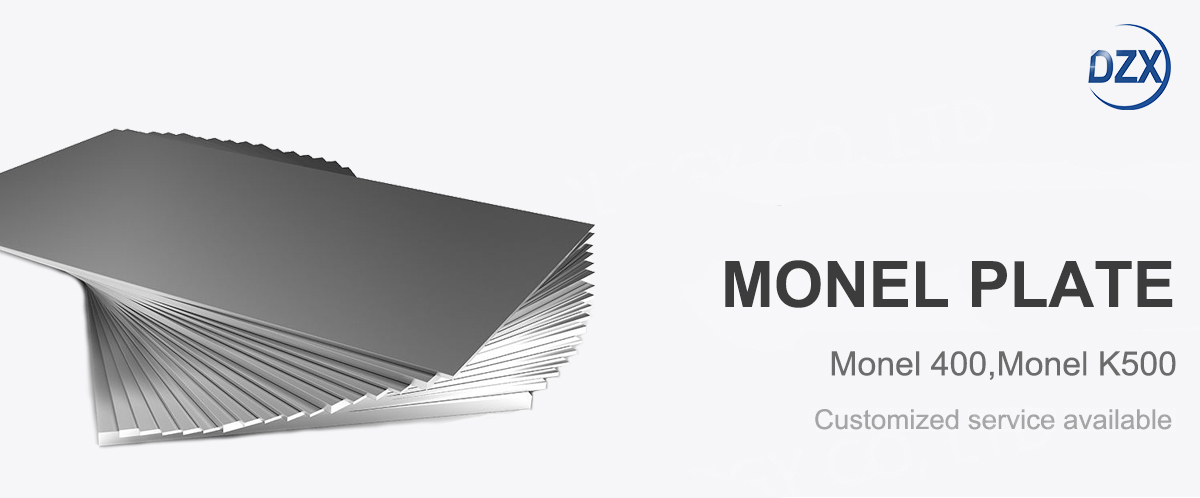

Our Monel high-strength plates are a powerhouse for aerospace turbine components, built to handle the toughest stresses and harshest environments. This nickel-copper alloy, available in grades like Monel 400 and K500, delivers top-notch strength and corrosion resistance, making it a favorite for aerospace, marine, and oil and gas industries. We craft these plates with precision to meet the high demands of your projects.
Material Breakdown
Monel, primarily Monel 400 (67% nickel, 23% copper) and K500 (with added aluminum and titanium for extra strength), is a beast when it comes to durability. Monel 400 fights off corrosion from seawater and acids, while K500’s age-hardening boosts its strength for high-stress applications. Our plates are made to tight tolerances, ensuring a smooth finish and consistent thickness for turbine blades, fasteners, and other critical parts.
Applications That Fly High
Our Monel plates are perfect for aerospace turbine components, from blades to structural fittings, where strength and reliability are non-negotiable. They’re also used in marine propeller shafts, oil and gas valve plates, and chemical plant heat exchangers. If you need a material that can take on extreme conditions without flinching, Monel’s your go-to.
Item | Ni | Cu | Fe | Mn | C | Si | S |
Monel 400 | ≥63 | 28-34 | ≤2.5 | ≤2.0 | ≤0.3 | ≤0.5 | ≤0.024 |
Item | Ni | Cu | Al | Ti | Fe | Mn | S | C | Si |
Monel K500 | ≥63 | 27-33 | 2.3-3.15 | 0.35-0.85 | ≤2 | ≤1.5 | ≤0.01 | ≤0.25 | ≤0.5 |
Item | Density | Melting Point | Tensile Strength (Rm N/mm2) | Yield Strength (RP0.2N/mm2) | Elongation (A5%) | HB |
Monel 400 | 8.83 g/cm3 | 1300-1390℃ | 480 | 170 | 35% | ≥331 |
Item | Density | Melting point | Tensile Strength | Yield Strength | Elongation |
Monel K500 | 8.05 g/cm3 | 1288-1343℃ | 1100 | 790 | 20% |
Monel 400 | Bar/Rod | Forging | Pipe | Sheet/Strip | Welding Wire |
Standard | ASTM B164 | ASTM B564 | ASTM B165 | ASTM B127 | ErNiCu-7 |
Monel K500 | Bar/Rod | Forging | Pipe | Sheet/Strip | Welding Wire |
Standard | ASTM B864 | AMS4676 | ASTM B865 | ASTM B564 | ErNiCu-7 |
Size Range |
Shape | Size (mm) |
Wire | 0.15-7.5 |
Rod/bar | 8.0-200 |
strip | (0.05-2.5)*(5-180) |
Plate | Custom Made |
Industry Trends
Aerospace is pushing for materials that balance lightweight strength with durability to boost fuel efficiency and performance. Monel K500’s high strength makes it a top pick for next-gen turbines, while Monel 400’s corrosion resistance shines in marine and chemical applications. Sustainability is also driving demand—Monel’s long lifespan reduces replacements, aligning with eco-friendly goals across industries.
Why We Stand Out
Our Monel plates are all about quality you can count on. We source from trusted suppliers, ensuring 99.9% purity and compliance with ASTM and ISO standards. Every batch is rigorously tested to guarantee performance, so you know you’re getting plates that deliver in high-stress environments. Whether it’s aerospace turbines or marine fittings, we’ve got you covered.
Ready to Power Your Turbines?
Our Monel high-strength plates are built to excel in aerospace applications, delivering durability and performance that save time and costs. With industry trends favoring tough, sustainable materials, Monel is a smart choice for your next project. Contact us today to discuss specs, get a quote, or see how our plates can elevate your turbine components.
About Us:
Our 12,000㎡ factory is equipped with complete capabilities for research, production, testing, and packaging. We strictly adhere to ISO 9001 standards in our production processes, with an annual output of 1,200 tons. This ensures that we meet both quantity and quality demands. Furthermore, all products undergo rigorous simulated environment testing including high temperature, high pressure, and corrosion tests before being dispatched, ensuring they meet customer specifications. We also provide chemical analysis reports for every FeCrAl alloy, NiCr alloy, and other products purchased.
For all our clients, we offer timely and multilingual after-sales support and technical consulting, helping you resolve any issues swiftly and efficiently.
We support all kinds of testing:
FAQ：
What makes Monel plates ideal for aerospace turbines?
Their high strength and corrosion resistance handle extreme stresses and conditions.
Can Monel plates withstand high temperatures?
Yep, they perform reliably from cryogenic to elevated temperatures.
Are Monel plates easy to fabricate for aerospace parts?
Absolutely, their formability is great for precision components like turbine blades.
What industries use Monel high-strength plates?
Aerospace, marine, oil and gas, and chemical processing.
How does Monel compare to Inconel for aerospace?
Monel offers similar corrosion resistance but excels in specific high-strength applications.
What thicknesses do your Monel plates come in?
We offer a range from 0.5mm to 50mm, tailored to your specs.
Is Monel eco-friendly?
Its durability cuts down on replacements, reducing material waste.
Do you provide certifications for Monel plates?
Yes, our plates come with test reports and meet ASTM and ISO standards.
