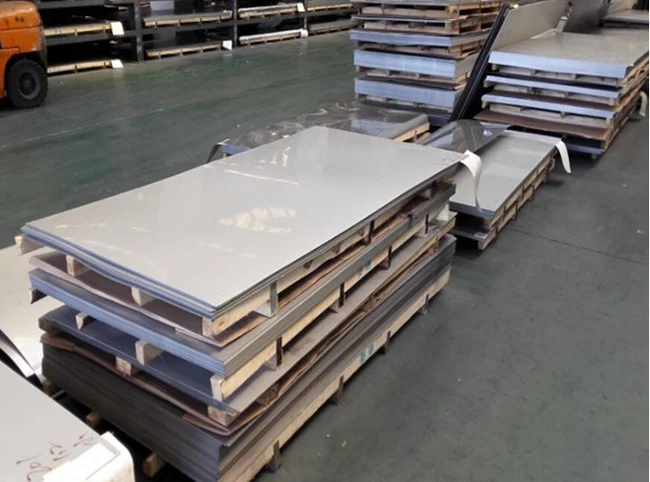

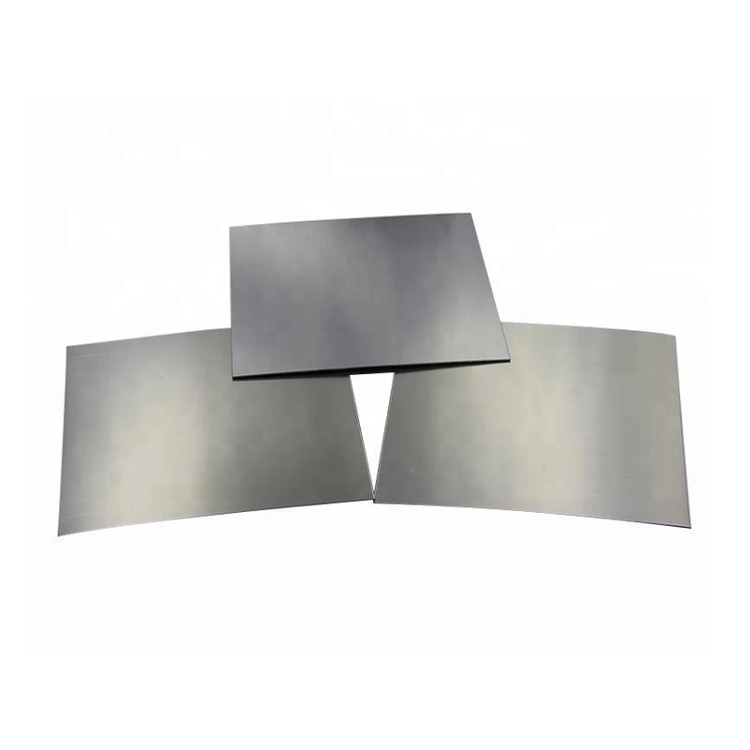

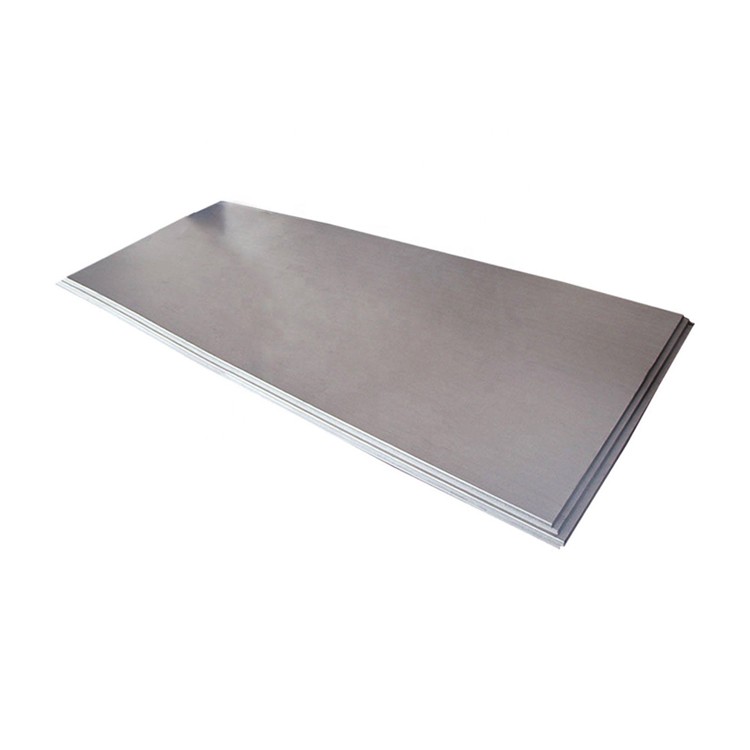

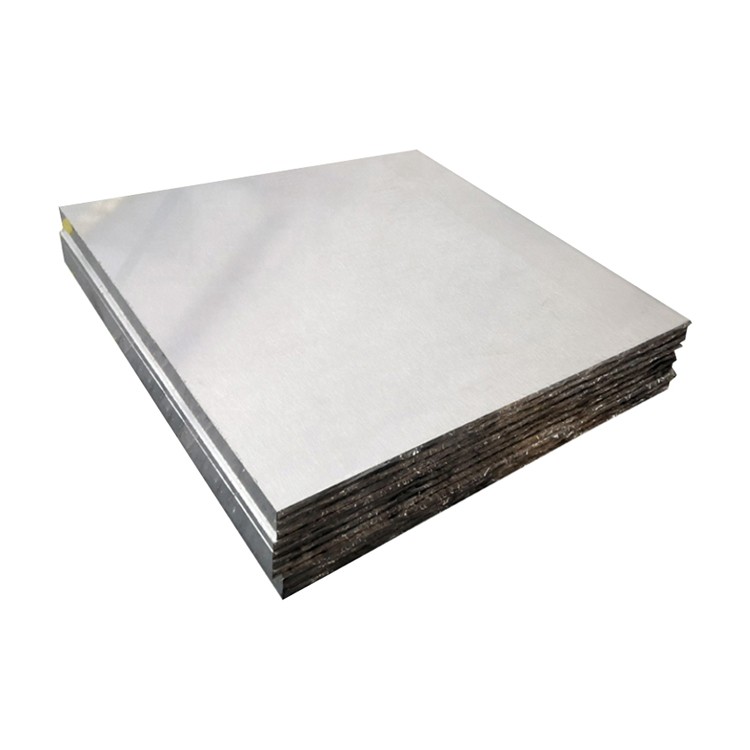

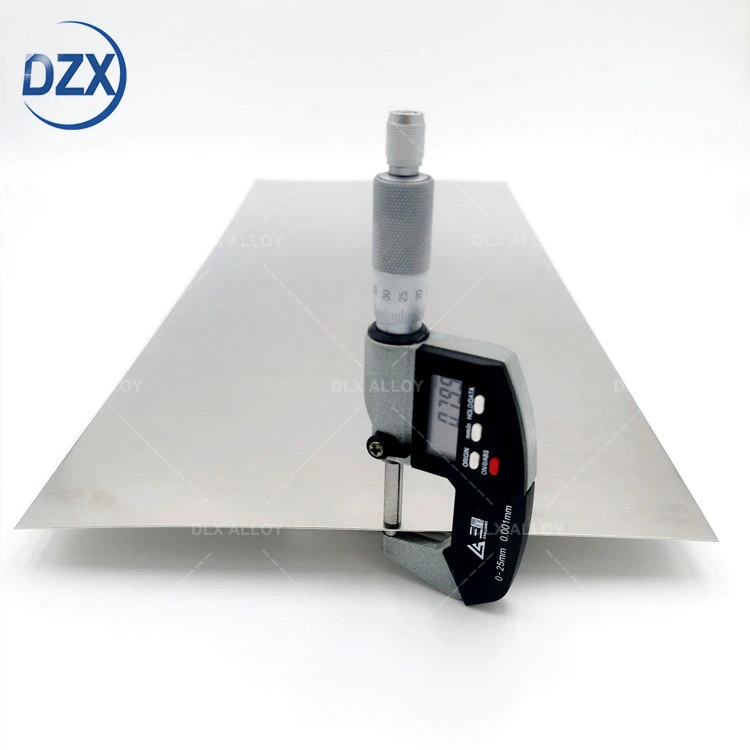

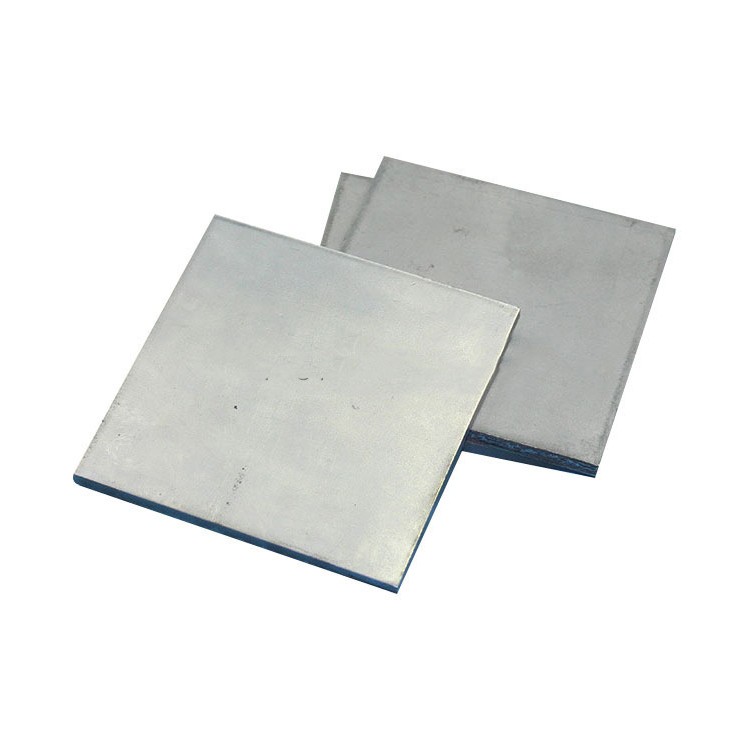

Product name：incoloy plate
Grade: nickel baesd alloy
Ni (Min): 30-46%
Size: Customized Size
Resistance (μΩ.m): Stable
Ultimate Strength (≥ MPa): 500
Elongation (≥ %): 35%
Density (g/m3)：8.4 g/cm3
Melting Point：1350-1400 °C
Products Description
Incoloy alloy is characterised by high temperature resistance combined with excellent corrosion resistance.It has excellent corrosion resistance, high strength, easy to fabricate. It can be found in a wide range of product forms across many industries.
Size dimension range:
Wire: 0.01-10mm
Strip: 0.05*5.0-5.0*250mm
Bar: φ4-50mm; Length 2000-5000mm
Pipe: φ6-273mm; δ1-30mm; Length 1000-8000mm
Sheet: δ0.8-36mm; Width 650-2000mm; Length 800-4500mm
Incoloy series: 800, 800H, 800HT, 825
Specification
Item | 800 | 800H | 800HT | 825 | 925 |
C | ≤0.1 | 0.05-0.1 | 0.06-0.1 | ≤0.05 | ≤0.03 |
Mn | ≤1.5 | ≤1.5 | ≤1.5 | ≤1 | ≤1 |
Fe | rest | rest | rest | rest | rest |
P | -- | -- | -- | ≤0.02 | ≤0.03 |
S | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.03 | ≤0.03 |
Si | ≤1 | ≤1 | ≤1 | ≤0.5 | ≤0.5 |
Cu | ≤0.75 | ≤0.75 | ≤0.75 | 1.5-3 | 1.5-3 |
Ni | 30-35 | 30-35 | 30-35 | 38-46 | 42-46 |
Al | 0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.2-1 | 0.15-0.5 |
Ti | 0.15-0.6 | 0.15-0.6 | 0.15-0.6 | 0.6-1.2 | 1.9-2.4 |
Cr | 19-23 | 19-23 | 19-23 | 19.5-23.5 | 19.5-23.5 |
Mo | -- | -- | -- | 2.5-3.5 | 2.5-3.5 |
