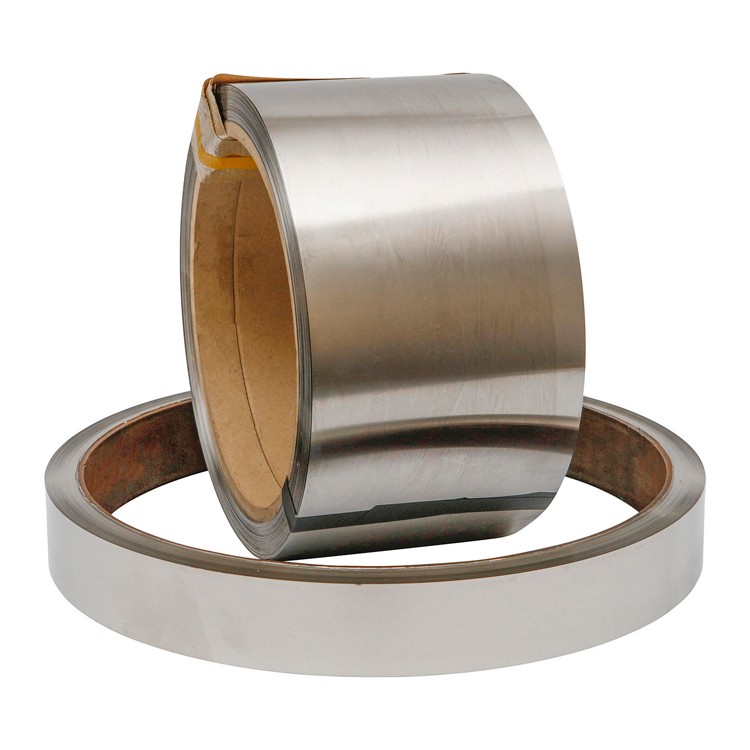

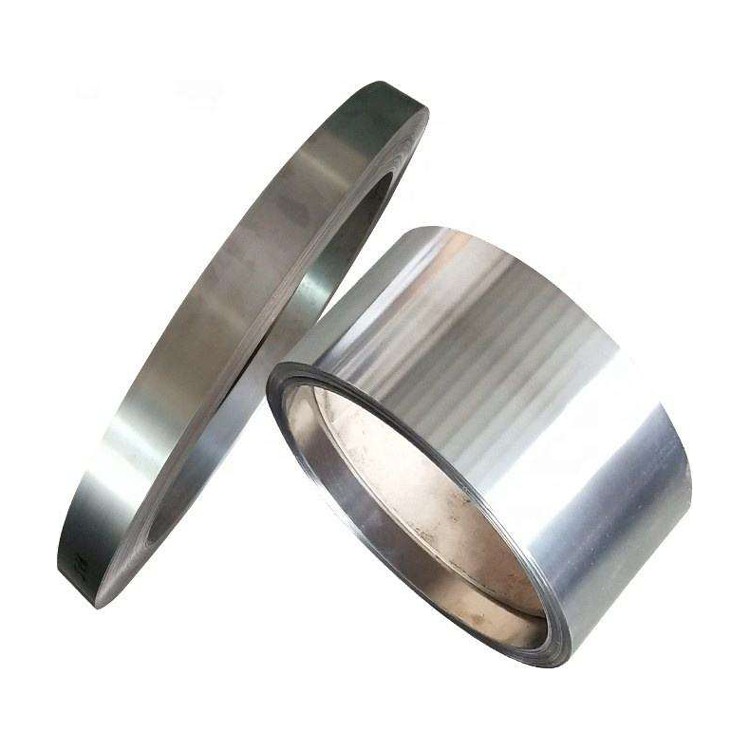

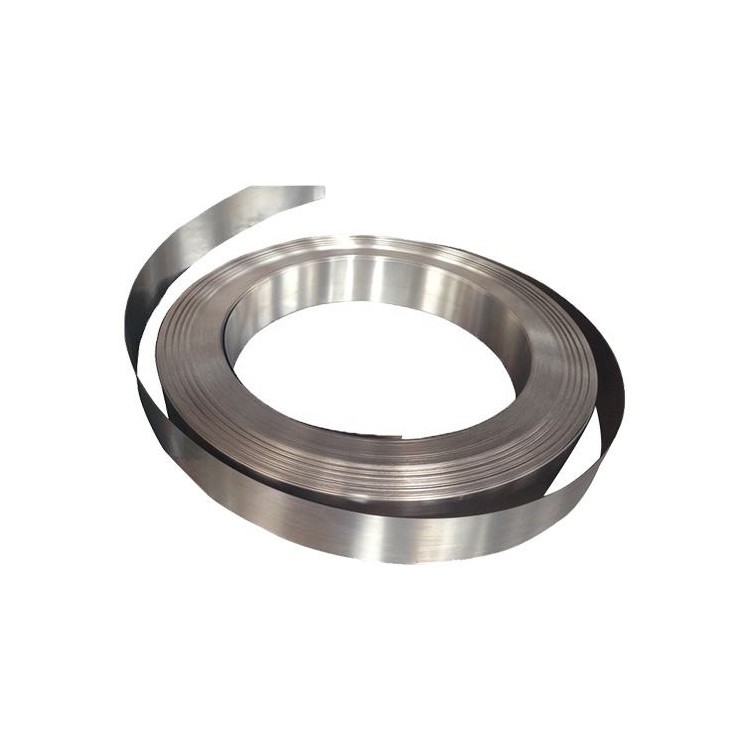

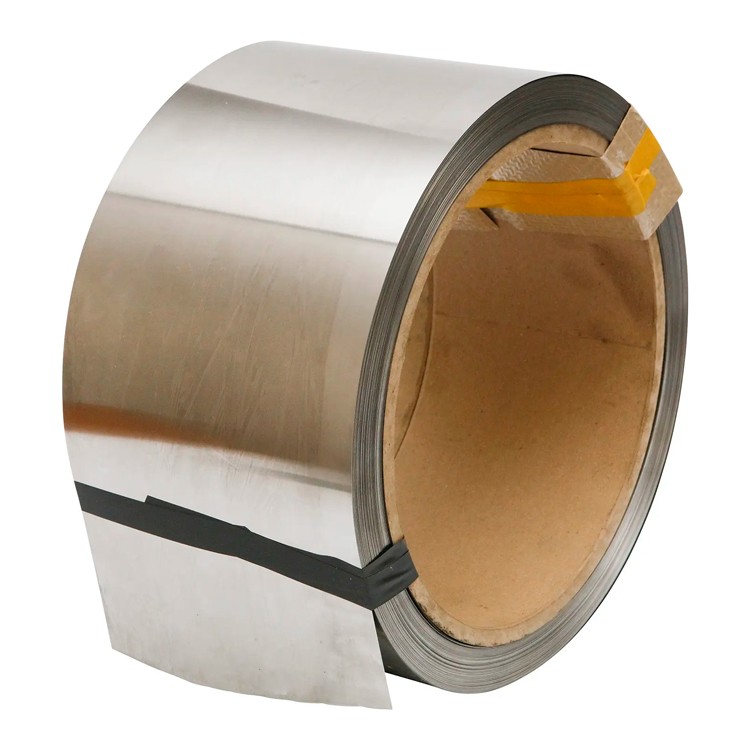

Product name: monel strip
Grade: Ni Cu
Ni (Min): 63%
Size: custom made
Ultimate Strength (≥ MPa): 480
Melting：1300-1350 °C
Elongation (≥ %): 20%-35%
Condition:Annealed;Heat Treatment
Products Description
Monel 400 strips nickel alloy
Monel 400 has excellent resistance to corrosion by many reducing media such as sulfuric and hydrochloric acids. It is generally more resistant to corrosion by oxidizing media than higher copper alloys.
Monel 400 resists pitting and stress corrosion cracking in most fresh and industrial waters. It has good resistance in flowing seawater, but under stagnant conditions, pitting and crevice corrosion is induced. Monel 400 is probably the most resistant to hydrofluoric acid in all concentrations up to the boiling point, of all engineering alloys. Monel 400 is notable for its toughness, it does not show embrittlement tendency at crygenic temperatures. It is work hardenable.
Size Range | |
Shape | Size (mm) |
Wire | 0.15-7.5 |
Rod/bar | 8.0-200 |
strip | (0.05-2.5)*(5-180) |
Plate | Custom Made |
National standards and common names
MONEL400, ASTM B127, ASME SB-127, AMS 4554, JIS NW4400
UNS N04400, EN 2.4360, NCu28-2.5-1.5
Metallographic structure
The microstructure of Monel 400 alloy is high strength single phase solid solution.
Parameter
Item | Ni% | Cu% | Fe% | Mn% | C% | Si% | S% |
Monel 400 | Min 63 | 28-34 | Max. 2.5 | Max. 2.0 | Max. 0.3 | Max. 0.5 | Max. 0.024 |
Item | Density | Melting Point | Tensile Strength (Rm N/mm2) | Yield Strength (RP0.2N/mm2) | Elongation (A5%) | HB |
Monel 400 | 8.83 g/cm3 | 1300-1390 | 480 | 170 | 35 | ≥331 |
Monel 400 | Bar | Forging | Pipe | Sheet/Strip | Welding Wire |
Standard | ASTM B164 | ASTM B564 | ASTM B165 | ASTM B127 | ErNiCu-7 |
