Material Characteristics

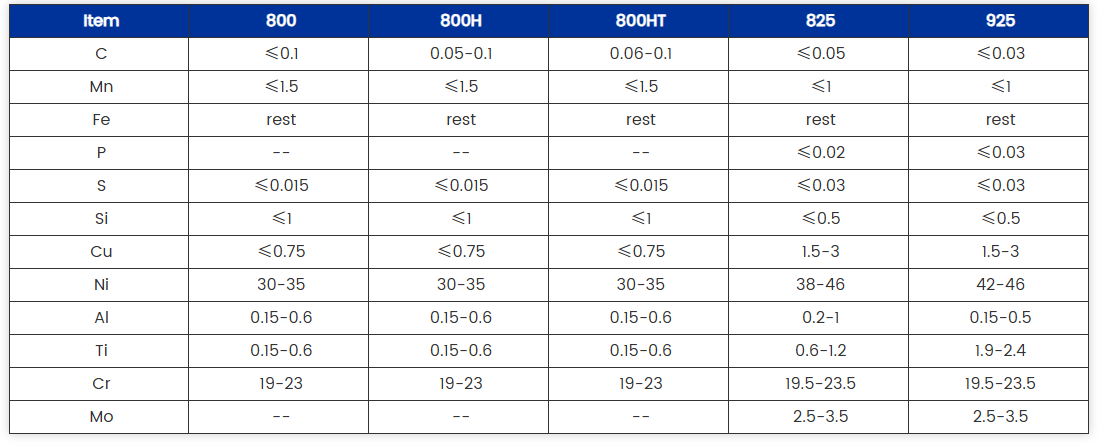

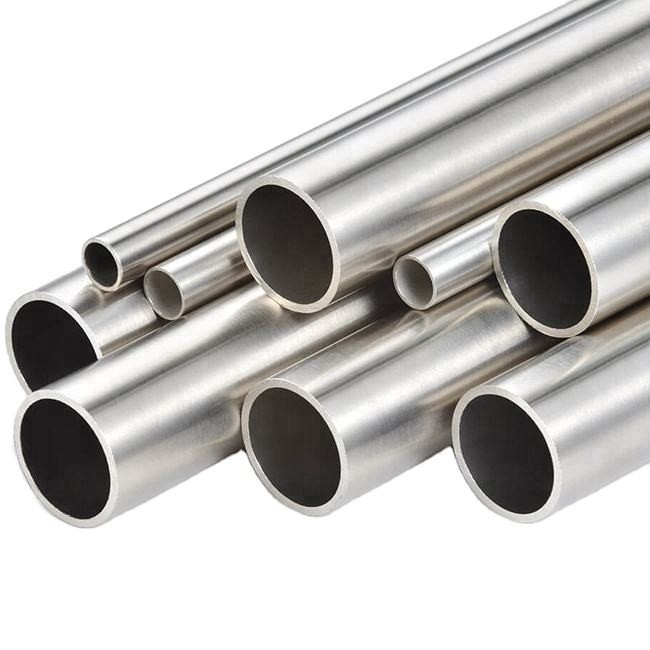

Incoloy 800 tubing is a nickel-iron-chromium alloy (UNS N08800) designed for superior performance in high-temperature environments. The alloy's composition (30-35% Ni, 19-23% Cr, and balance Fe) provides:

• Excellent resistance to oxidation and carburization up to 815°C (1500°F)

• Good strength retention at elevated temperatures

• Superior resistance to chloride-ion stress-corrosion cracking

• Stable austenitic structure under prolonged thermal exposure

Key Properties

• Tensile strength: 500-655 MPa at room temperature

• Creep resistance: Maintains structural integrity under sustained loads

• Thermal stability: Minimal scaling in cyclic heating conditions

• Fabrication flexibility: Suitable for welding and forming operations

Primary Applications

Petrochemical Processing

1. Steam methane reformer tubes

2. Ethylene cracking furnace coils

3. Hydrocarbon processing heat exchangers

4. Catalytic reforming system components

Furnace Systems

1. Radiant and convection heater tubes

2. Annealing furnace muffles

3. Carburizing and nitriding retorts

4. Heat treatment fixture components

Power Generation

1. Heat recovery steam generator tubes

2. Boiler superheater sections

3. Gas turbine exhaust systems

4. Nuclear reactor auxiliary heat exchangers

Industry Trends Driving Demand

1. Petrochemical Expansion

• Growing global demand for ethylene and propylene

• Increasing investment in steam crackers and reformers

• Need for materials with longer service life in pyrolysis furnaces

•


2. Energy Efficiency Requirements

• Tighter emissions regulations pushing for advanced furnace designs

• Demand for materials enabling higher process temperatures

• Need for reduced maintenance downtime

•


3. Material Development Trends

• Shift toward standardized high-performance alloys

• Increased focus on lifecycle cost analysis

• Growing preference for proven materials over experimental solutions

•


Technical Advantages Over Alternatives

• Better oxidation resistance than 300-series stainless steels

• More cost-effective than higher-nickel alloys like Inconel 600

• Superior carburization resistance compared to HK-40 steels

• More established performance history than newer alloy variants

Future Outlook
The market for Incoloy 800 tubing is projected to grow steadily, driven by:

• Continued expansion of petrochemical capacity in Asia and Middle East

• Retrofitting of aging North American and European facilities

• Increasing adoption in renewable fuel processing equipment

• Growing nuclear power investments worldwide

•


Standards Compliance

• ASTM B407 (Seamless pipe and tube)

• ASME SB407 (Pressure vessel applications)

• DIN 17459 (European standard)

• NACE MR0175 (Sour service compliance)
